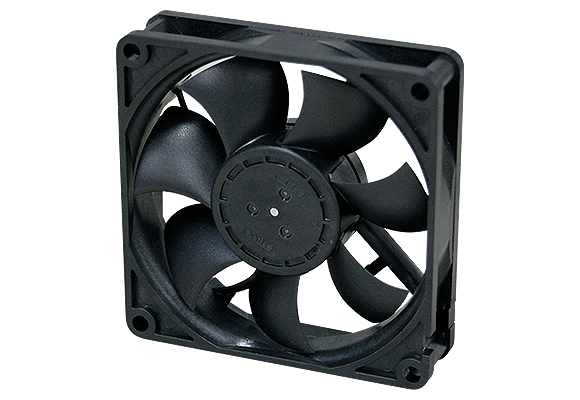

General purpose
We have prepared variety series, we can handle wide range of applications.
The SA series is the latest design to achieve high efficiency and long service life using ball bearings.
The SS series is the latest shock-resistance design using long life sleeve bearings and the price is low.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Size |
Size |
Thickness(L) |
Rating Voltage |
Max. Air Flow |
Max. Air Flow |
Max. Static Pressure |
Max. Static Pressure |
Associated Data |
CAD Data Download |
|---|---|---|---|---|---|---|---|---|---|---|
| 02510SS | 25 | 25 | 10 | 5, 12 | 0.075 | 0.075 | 68.0 | 68.0 | PDF product catalog | 3D/2D CAD |
| 03010SS | 30 | 30 | 10 | 5, 12 | 0.100 | 0.120 | 38.0 | 59.0 | PDF product catalog | 3D/2D CAD |
| 03510SS | 35 | 35 | 10 | 5, 12 | 0.120 | 0.160 | 39.4 | 56.3 | PDF product catalog | 3D/2D CAD |
| 03515SS | 35 | 35 | 15 | 5, 12 | 0.160 | 0.160 | 35.0 | 35.0 | PDF product catalog | 3D/2D CAD |
| 04010SA | 40 | 40 | 10 | 5, 12, 24 | 0.140 | 0.190 | 27.5 | 50.0 | PDF product catalog | 3D/2D CAD |
| 04010SS | 40 | 40 | 10 | 5, 12, 24 | 0.140 | 0.190 | 27.5 | 50.0 | PDF product catalog | 3D/2D CAD |
| 04015SS | 40 | 40 | 15 | 12, 24 | 0.160 | 0.210 | 40.0 | 68.0 | PDF product catalog | 3D/2D CAD |
| 2004KL | 50 | 50 | 10 | 5, 12 | 0.180 | 0.290 | 16.0 | 35.0 | PDF product catalog | |
| 05015SS | 50 | 50 | 15 | 12, 24 | 0.250 | 0.420 | 20.0 | 51.0 | PDF product catalog | 3D/2D CAD |
| 2404KL | 60 | 60 | 10 | 12 | 0.390 | 0.540 | 16.7 | 30.1 | PDF product catalog | |
| 06015SS | 60 | 60 | 15 | 12, 24 | 0.480 | 0.640 | 22.4 | 38.8 | PDF product catalog | 3D/2D CAD |
| 06020SA | 60 | 60 | 20 | 12, 24 | 0.470 | 0.860 | 34.4 | 109.0 | PDF product catalog | 3D/2D CAD |
| 06020SS | 60 | 60 | 20 | 12, 24 | 0.470 | 0.580 | 34.4 | 52.1 | PDF product catalog | 3D/2D CAD |
| 06025SA | 60 | 60 | 25 | 12, 24 | 0.480 | 1.070 | 35.0 | 158.5 | PDF product catalog | 3D/2D CAD |
| 06025SS | 60 | 60 | 25 | 12, 24 | 0.480 | 0.850 | 35.0 | 101.0 | PDF product catalog | 3D/2D CAD |
| 2806KL | 70 | 70 | 15 | 12 | 0.700 | 1.080 | 23.6 | 55.2 | PDF product catalog | 3D/2D CAD |
| 2810KL | 70 | 70 | 25 | 12 | 0.710 | 1.150 | 28.4 | 71.7 | PDF product catalog | |
| 08015SS | 80 | 80 | 15 | 12, 24 | 0.760 | 0.960 | 23.5 | 34.2 | PDF product catalog | 3D/2D CAD |
| 08020SA | 80 | 80 | 20 | 12, 24 | 0.880 | 1.200 | 28.5 | 53.0 | PDF product catalog | 3D/2D CAD |
| 08020SS | 80 | 80 | 20 | 12, 24 | 0.880 | 1.130 | 28.5 | 52.8 | PDF product catalog | 3D/2D CAD |
| 08025SA | 80 | 80 | 25 | 12, 24 | 0.860 | 1.700 | 21.5 | 82.0 | PDF product catalog | 3D/2D CAD |
| 08025SS | 80 | 80 | 25 | 12, 24 | 0.860 | 1.550 | 21.5 | 68.0 | PDF product catalog | 3D/2D CAD |
| 09225SA | 92 | 92 | 25 | 12, 24 | 1.130 | 1.840 | 29.0 | 73.0 | PDF product catalog | 3D/2D CAD |
| 09225SS | 92 | 92 | 25 | 12, 24 | 1.130 | 1.840 | 29.0 | 73.0 | PDF product catalog | 3D/2D CAD |
| 11925SA | 119 | 119 | 25 | 12, 24 | 1.900 | 3.630 | 28.5 | 89.0 | PDF product catalog | 3D/2D CAD |
| 11938KA | 119 | 119 | 38 | 12, 24, 48 | 3.070 | 3.680 | 68.1 | 110.0 | PDF product catalog | 3D/2D CAD |
