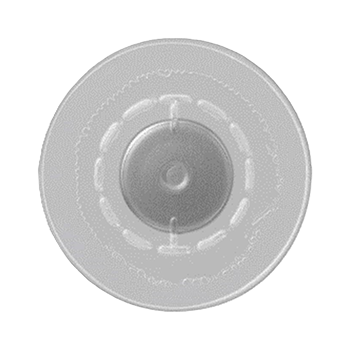

Switch sheets with click springs mounted on adhesive sheets, which can be directly attached to PWB to realize thin tactile feel switches.
We can design diameter and layout of click springs, sheet sizes, layer structures, characteristics, etc., to meet customer necessities.
Applications
Smartphones
PCs
Gaming devices
Small digital devices
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Rating (Resistive load) |
Contact Resistance |
Insulation resistance |
Withstand Voltage |
Operating Force |
Associated Data |
|---|---|---|---|---|---|---|---|

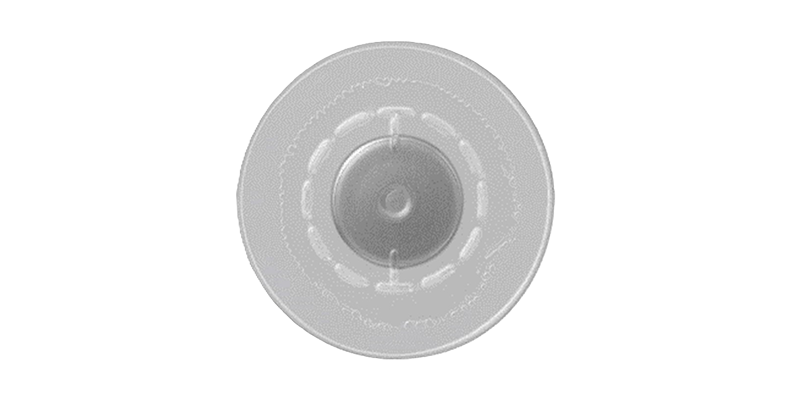

| SBH Series |  |
DC 12V 0.1A | 1Ω or less | 100MΩ or more | 1 minute at 100V AC | 1.0N to 3.8N (Ø2.4, Ø3.0, Ø3.0×2, Ø4.0, Ø4.0×2.8, Ø5.0, Ø6.0) |
PDF product catalog |
