Board to Cable Connectors

HSD Connectors

Target applications: Automotive monitors, meter clusters, smart mirrors, media hubs, ADAS.
This is a 4-pin connector that mainly transmits image signals and is capable of 4 Gbps differential transmission. This type of connector is applicable for high-speed transmission such as LVDS / USB2.0.

Sort
Parts Appearance Overview Associated Data

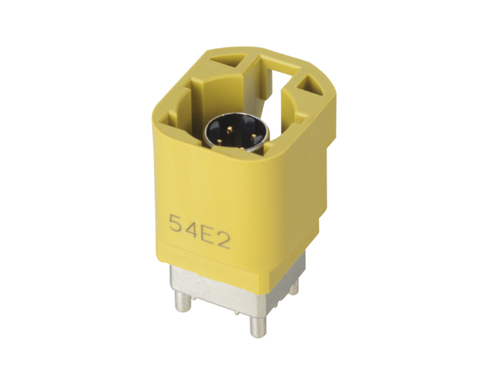

CAM-J14HN/HR, CAM-K39LN/LRCAMJ14HNHR_CAMK39LNLR.jpgHSD Connector LightPDF product catalog

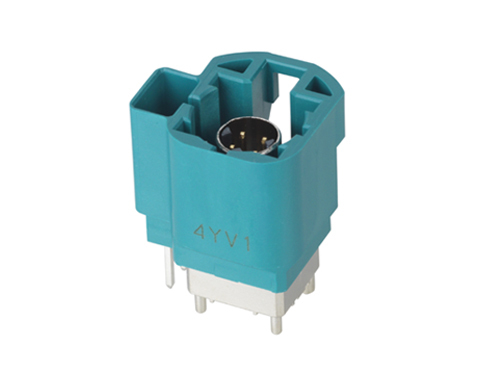

CAM-K23HN/HR/LRS, CAM-K73LN, CAM-K23SNCAMK23HNHRLRS_CAMK73LN_CAMK23SN.jpgHSD Connector (Die casting type)PDF product catalog

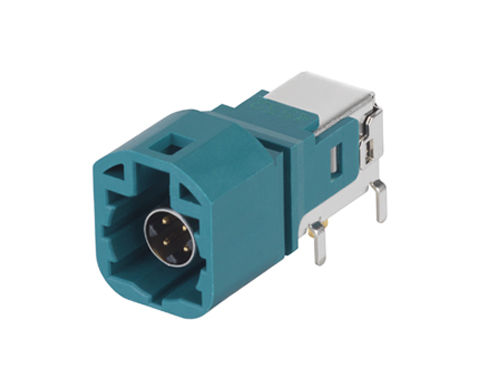

CAM-K22LN/LR, CAM-K24, CAM-K72LN, CAM-K83, CAM-K56, CAM-L44CAMK22LNLR_K24_K72LN_K83_K56_L44.jpgHSD Connector (HSD+2, HSD+4, HSD+8)PDF product catalog
CAM-K58, L68, L48CAMK58_L68_L48.jpgHSD DoublePDF product catalog

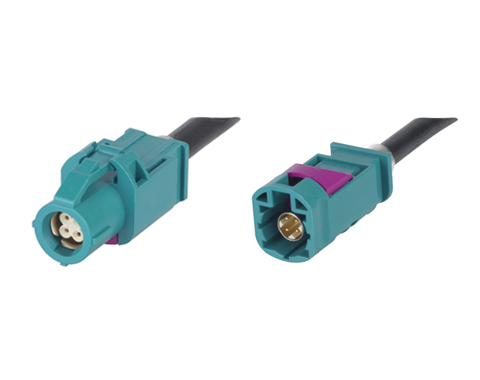

IAM-K88, K87, J15U/L/R/AP2, K87SP2, L53, L69, L54IAMK88_K87_J15ULRAP2_K87SP2_L53_L69_L54.jpgHSD Cable ConnectorsPDF product catalog
