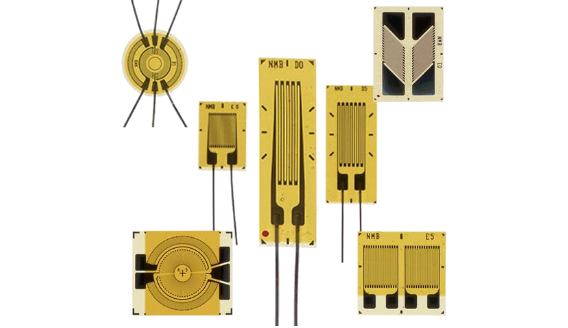

Strain gages for transducers
This page introduces the strain gauges used in transducers.
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Item |
Resistance |
Gage length |
Base size (X) |
Base size (Y) |
Base size (φ) |
Patern size (X) |
Patern size (Y) |
Patern size (φ) |
|---|---|---|---|---|---|---|---|---|
| J-02-12C0T** | 120 | 0.2 | 2.5 | 2 | 1.3 | 1 | ||
| J-05-12D0T** | 120 | 0.5 | 3.0 | 2.5 | 1.4 | 1.6 | ||
| J-1-12F0T** | 120 | 1 | 4.1 | 2.5 | 2.2 | 1.6 | ||
| J-2-12D0T** | 120 | 2 | 6.0 | 3.6 | 3.8 | 2 | ||
| J-3-12D5T** | 120 | 3 | 6.9 | 4.7 | 5.2 | 3 | ||
| J-4-12D0T** | 120 | 4 | 8.2 | 3.5 | 5.6 | 2 | ||
| J-5-12D0T** | 120 | 5 | 10.0 | 3 | 7.5 | 1.8 | ||
| J-8-12D0T** | 120 | 8 | 14.4 | 6 | 11 | 3.3 | ||
| J-1-35F0T** | 350 | 0.8 | 3.1 | 2.5 | 2.1 | 1.6 | ||
| J-2B35D0T** | 350 | 2 | 5.5 | 3.5 | 3.6 | 2.6 | ||
| J-5-35F0T** | 350 | 5 | 10.0 | 3.5 | 6.9 | 2.4 | ||
| JT-1-35G0T** | 350 | 1.2+2.8 | 5.6 | 5.6 | 4.5 | 4.3 | ||
| JT-3-35F0T** | 350 | 3.2 | 7.0 | 10 | 5.5 | 8.6 | ||
| JD-2-12D0T** | 120 | 2 | 7.0 | 12 | 6.7 | 3.6 | ||
| JD-4-12D0T** | 120 | 4 | 9.5 | 12.5 | 6.6 | 9.5 | ||
| JS4-16-35D5T** | 350 | 16.7 | 16 | |||||
| JS4-9C35B5T** | 350 | 9.8 | 9.3 |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
