Strain gage Strain gages for transducers
JD-4-12D0T**

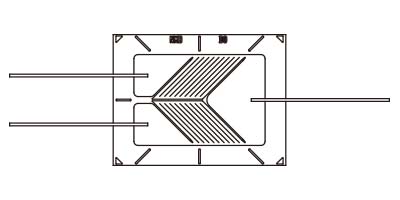

Gage shape
| Gage patern | Resistance [Ω] |
Gage length [mm] |
Base size (Y) [mm] |
Patern size (X) [mm] |
Patern size (Y) [mm] |
|---|---|---|---|---|---|
| 2-element cross D | 120 | 4 | 12.5 | 6.6 | 9.5 |
