Strain gage Strain gages for transducers
JS4-9C35B5T**

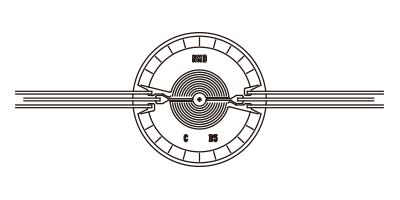

Gage shape
| Gage patern | Resistance [Ω] |
Base size (φ) [mm] |
Patern size (φ) [mm] |
|---|---|---|---|
| Diaphragm | 350 | 9.8 | 9.3 |
| Gage patern | Resistance [Ω] |
Base size (φ) [mm] |
Patern size (φ) [mm] |
|---|---|---|---|
| Diaphragm | 350 | 9.8 | 9.3 |
