Strain gages for measurement

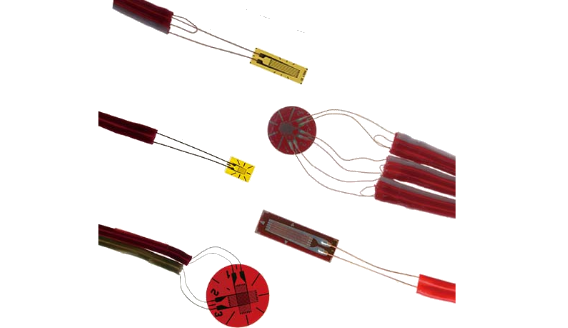

This page introduces the strain gauges used for general stress measurement.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Resistance [Ω]	Gage length [mm]	Base size (X) [mm]	Base size (Y) [mm]	Base size (φ) [mm]	Patern size (X) [mm]	Patern size (Y) [mm]
F-02W-12T11W**	120	0.2	2.7	2.2		1.3	1
F-05W-12T11W**	120	0.5	3.0	2.5		1.3	1.4
F-1S-12M1T11W**	120	1	5.2	2.5		2.6	1.4
F-2-12T11W**	120	2	6.7	3		4.3	1.9
F-3N-12T11W**	120	3	9.0	3.5		6	1.8
F-4-12T11W**	120	4	8.2	3.5		5.6	2
F-5N-12T11W**	120	5	10.2	3		7.6	1.8
F-8-12T11W**	120	8	14.5	6		11.1	3.1
J-02-12TW	120	0.2	2.5	2		1.3	1
J-05-12TW	120	0.5	3.0	2.5		1.4	1.6
J-1-12TW	120	1	4.1	2.5		2.2	1.6
J-2-12TW	120	2	6.0	3.6		3.8	2
J-3-12TW	120	3	6.9	4.7		5.2	3
J-4-12TW	120	4	8.2	3.5		5.6	2
J-5-12TW	120	5	10.0	3		6.9	2.4
J-8-12TW	120	8	14.4	6		11	3.3
J-02-12TW-3	120	0.2	2.5	2		1.3	1
J-1-12TW-3	120	1	4.1	2.5		2.2	1.6
J-2-12TW-3	120	2	6.0	3.6		3.8	2
J-5-12TW-3	120	5	10.0	3		6.9	2.4
FX-2-12T11W**	120	2			8	4.1	1.4
FX-5-12T11W**	120	5			12	8	2.5
FR-2-12T11W**	120	2			8	4.1	1.4
FR-5-12T11W**	120	5			12	8	2.5
F-02W-12T11W**-3	120	0.2	2.7	2.2		1.3	1
F-1S-12M1T11W**-3	120	1	3.6	2.7		2.2	1
F-2-12T11W**-3	120	2	6.7	3		4.3	1.9
F-5N-12T11W**-3	120	5	10.2	3		7.6	1.8
FX-2-12T11W**-3	120	2			8	4.1	1.4
FX-5-12T11W**-3	120	5			12	8	2.5
FR-2-12T11W**-3	120	2			8	4.1	1.4
FR-5-12T11W**-3	120	5			12	8	2.5
J5-2-12D0T**	120	2	19.4	7.1		16.5	4.5
