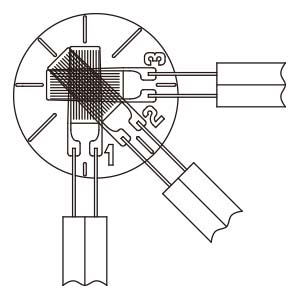

Gage shape
| Gage patern | Resistance [Ω] |
Gage length [mm] |
Base size (φ) [mm] |
Patern size (X) [mm] |
Patern size (Y) [mm] |
|---|---|---|---|---|---|
| 3-element rosette | 120 | 5 | 12 | 8 | 2.5 |
| Gage patern | Resistance [Ω] |
Gage length [mm] |
Base size (φ) [mm] |
Patern size (X) [mm] |
Patern size (Y) [mm] |
|---|---|---|---|---|---|
| 3-element rosette | 120 | 5 | 12 | 8 | 2.5 |
