Load cell are of stainless steel specification as standard.Stable performance, high reliability and long life.
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Product outline image |
Features |
|---|---|---|

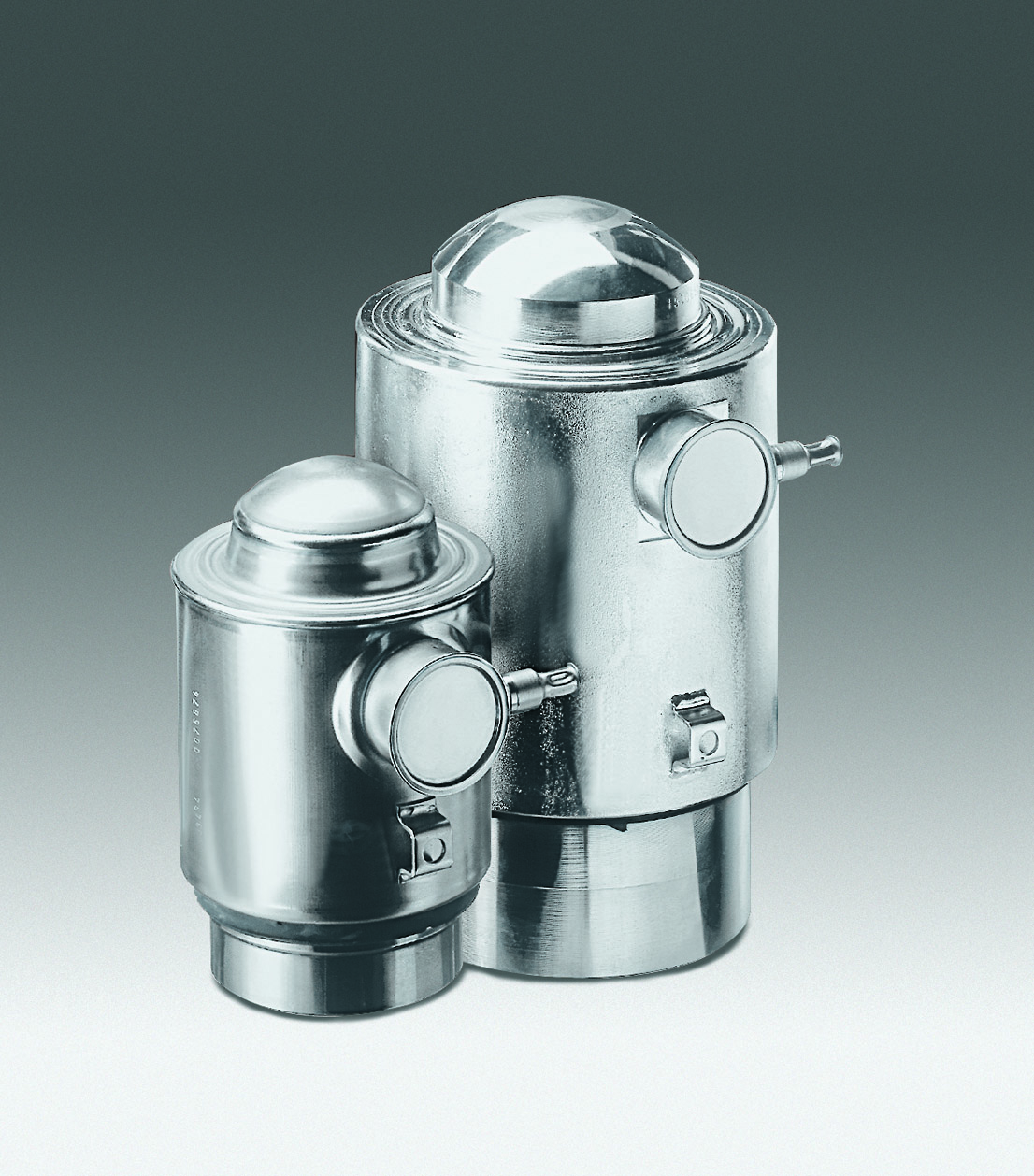

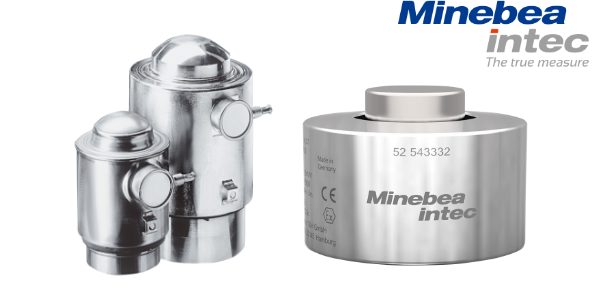

| PR6203 Series Compression Type High Precision Standard Stainless Steel Load Cell |  |
・Load cell with automatic alignment function ・Stainless steel housing:SUS304 equivalent ・Completely waterproof IP68 ・Wide range of accuracy supported:D1(E) to C6(E) |
| PR6201 Series Compression Type High Accuracy Standard Stainless Steel Load Cell |  |
・Stainless steel load cells for high capacity ・Stainless steel housing:SUS304 equivalent ・Completely waterproof IP68 |
| PR6201 DB Series Double Output Compression Type Stainless Steel Load Cell |  |
・2 strain gages are applied within the load cell for double output. ・For use at steel plants, etc., enabling 1 cable to continue output even if the other cable is damagrd. |
| PR6241 Series Compression Type Ultra-High Accuracy 1/12500 Stainless Steel Load Cell |  |
・Compact,high-performance load cell. Individual accuracy:Achieves 1/12500! Ideal for production of high-accuracy tank scales and platform scales ・Stainless steel housing:SUS630 equivalent ・Completely waterproof IP68 ・Ultra-high accuracy,C6:1/12500 |
| PR6211 Series Compression Type Compact Stainless Steel Load Cell |  |
・Gage is applied using sputtering technology to dramatically improve strength and accuracy. PR6211(rated 30 to 300kg)maximum allowable load>500kg. High temperature(LT:rated 500kg to 5t)version is available for up tp 180℃ ・Stainless steel housing:SUS630 equivalent ・Completely waterproof IP68 ・Lateral load relief mechanism |
| PR6212 Series Compression Type Compact Stainless Steel Load Cell |  |
・Gage is applied using sputtering technology to dramatically improve strength and accuracy. High temperature(LT:rated 500kg to 5t)version is available for up tp 180℃ ・Stainless steel housing:SUS630 equivalent ・Completely waterproof IP68 ・Lateral load relief mechanism |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
