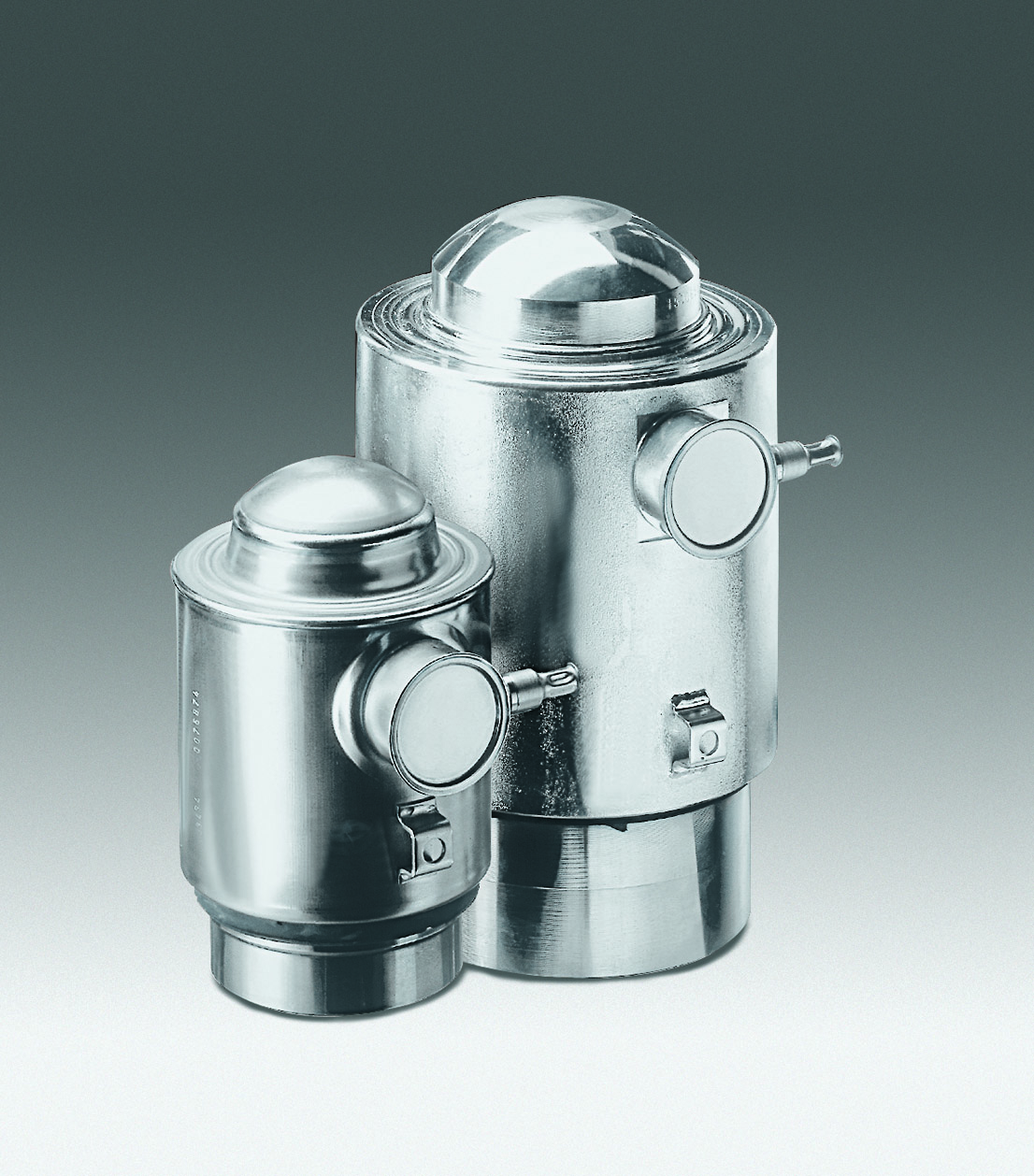

PR6201 DB Series Double Output Compression Type Stainless Steel Load Cell

Minebea Intec

Load cell are of stainless steel specification as standard.Stable performance, high reliability and long life.

Features

・2 strain gages are applied within the load cell for double output.
・For use at steel plants, etc., enabling 1 cable to continue output even if the other cable is damagrd.

scroll

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4
OIML Accuracy class	NDB(100t)	NDB(200t)	NDB(300t)	LDB(520t)
Accuracy class	0.06Emax～0.5Emax	0.06Emax～0.5Emax	0.06Emax～0.5Emax	0.06Emax～0.5Emax
Destructive load	500t	1000t	1000t	1000t
Rated output	1.0mV/V～2.6mV/v	1.0mV/V～2.6mV/v	1.0mV/V～2.6mV/v	1.0mV/V～2.6mV/v
Rated output tolerance	0.25%Cn	0.25%Cn	0.25%Cn	1.0%Cn
Non-linearity	<0.05Cn/10K	<0.05Cn/10K	<0.05Cn/10K	<0.1Cn/10K
Temperature effect on Zero	<0.06Cn/10K	<0.06Cn/10K	<0.06Cn/10K	<0.02Cn/10K
Temperature effect on Span	<0.03Cn/10K	<0.03Cn/10K	<0.03Cn/10K	<0.1Cn/10K
Input resistance	644Ω～656Ω	644Ω～656Ω	644Ω～656Ω	600Ω～700Ω
Rated output	609Ω～611Ω	609Ω～611Ω	609Ω～611Ω	607Ω～613Ω
Insulation resistance	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω
Nominal supply voltage	4～24V	4～24V	4～24V	4～24V
Nominal ambient temperature range	-10℃～+40℃	-10℃～+40℃	-10℃～+40℃	-10℃～+40℃
Usable ambient temperature range	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃
Cable specification	PET thermoplastic、4-core shield cable Length 12m	PET thermoplastic、4-core shield cable Length 12m	PET thermoplastic、4-core shield cable Length 12m	PET thermoplastic、4-core shield cable Length 12m
Wiring specification	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

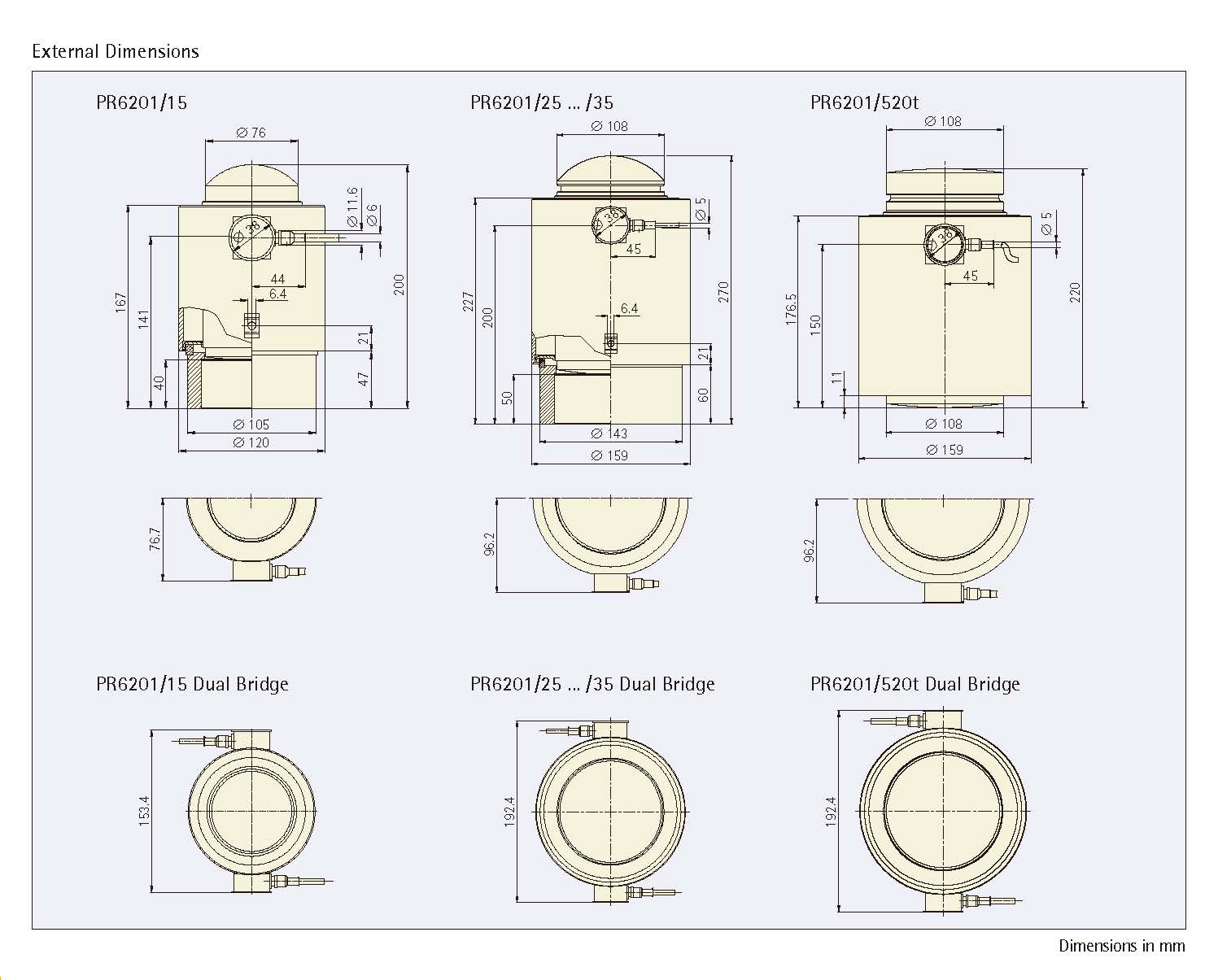

Parts No.	Rated Capacity [tf]	Weight [kg]	Gross Weight [kg]	Packaged Size(W) [cm]	Packaged Size(L) [cm]	Packaged Size(H) [cm]	Instruction Manual
PR6201/15NDB	100	11.0	13.0	25	25	27	KT60855-1.pdf
PR6201/25NDB	200	26.0	29.0	28	28	32	KT60855-1.pdf
PR6201/35NDB	300	26.0	29.0	28	28	32	KT60855-1.pdf
PR6201/520t LDB	520	21.0	23.0	28	28	32	KT60855-1.pdf
