Mold cavity pressure measurement system
A specialized digital conversion module of 8-channels inputs that measures the mold cavity pressure of the injection molding machine.The pressure value is watched on the condition set beforehand, and the result is output as an alarm signal. Forward the pressure value waveform converted into the analog voltage to the molding machine.
【Features】
・The mold cavity pressure can be measured, managed and recorded easily with low cost. Up to now, that was a Black Box though the pressure was an important parameter in a quality of molded products.
・The actual measuring waveform of the pressure when the resin is filled into the forming die is useful to manage the quality of molded product.
・Shorten the time for optimizing the molding condition by an experimental trial and for matching the condition in mass production factory.
・The product quality in mass production can be determined by setting the condition of the determination based on the pressure waveform of non-defective product.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Outline |
|---|---|---|

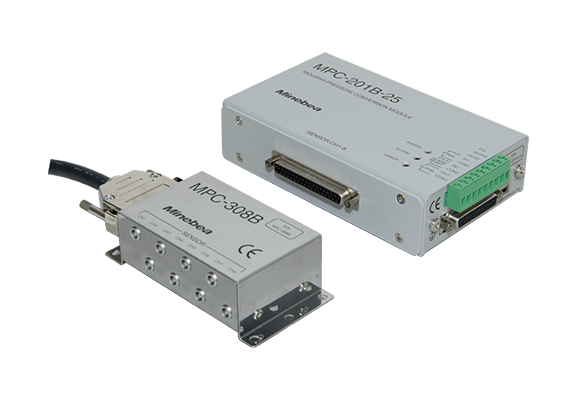

| Molding pressure conversion module MPC-201B-25 |  |
Specialized conversion module, with data processing software (MIP-D-02) and analog voltage output, CE mark applied product. |
| Relay box MPC-308B |  |
Relay box only for MPC-201B-25, CE mark applied product. |
| Relay box MRB-304-BI |  |
Embedded relay box only for MPC-201B-25/MPC-203-25 |
| Relay box MRB-304-CV |  |
External relay box only for MPC-201B-25/MPC-203-25 |
| Molding pressure conversion module MPC-203-25 |  |
Specialized conversion module, with data processing software (MIP-D-02) and analog voltage output, CE mark applied product. |
| Relay box MPC-304 |  |
Relay box only for MPC-203-25, CE mark applied product. |
| Load cell LSMS-*-S06 |  |
Specialized sensor. Rated capacity : 20 kgf, 50 kgf φ7mm / 100 kgf, φ10 mm, Height 5 mm |
| Load cell LSMSB-* |  |
Specialized sensor. Rated capacity : 5 kgf,10kgf,20 kgf, 50 kgf φ7mm Height 5 mm / 100 kgf, φ10 mm Height 5.5mm/ 200 kgf, φ10 mm Height 6mm/ 500 kgf, φ12 mm Height 8mm/1T,φ15mm Height 9.5mm/3T,φ20mm Height 16mm |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
