Semiconductor Sensor

Flame Detection Amplifer

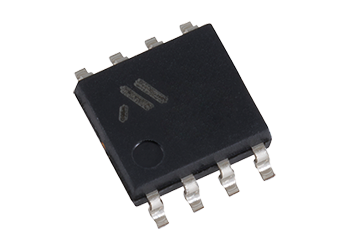

This IC contains an operational amplifier and a comparator, achieving extremely low offset voltage with a single power supply. Since a single power supply can be used, this IC can be operated with the voltage from two batteries. Through the use of the operational amplifier and the comparator, this IC can amplify thermocouple electromotive force and detect ignition according to output from the amplifier, without using other parts. The low offset voltage improves accuracy of ignition detection.

Product name Power supply voltage
lower limit
[V]
Power supply voltage
upper limit
[V]
Amplifer Input voltage range
lower limit
[V]
Amplifer Input voltage range
upper limit
[V]
Amplifer Input offset voltage
Typ.
[mV]
Comparator Input voltage range
lower limit
[V]
Comparator Input voltage range
upper limit
[V]
Comparator Input offset voltage
Typ.
[mV]
Package
