It is a compact tactile feedback device that can express a wide range of tactile sensations and convert audio sources, such as games, into immersive feelings. The LVC series achieves clear vibrations across a wide frequency range by suppressing higher-order resonances through its unique spring and damping structures. Additionally, it can produce sound by directly vibrating surfaces such as panels, allowing the addition of speaker functionality while minimizing its impact on the design by mounting it on the back of the housing.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Type |
Outline dimensions |
Rated resonant frequency |
Rated input voltage |
CAD Data Download |
|---|---|---|---|---|---|---|

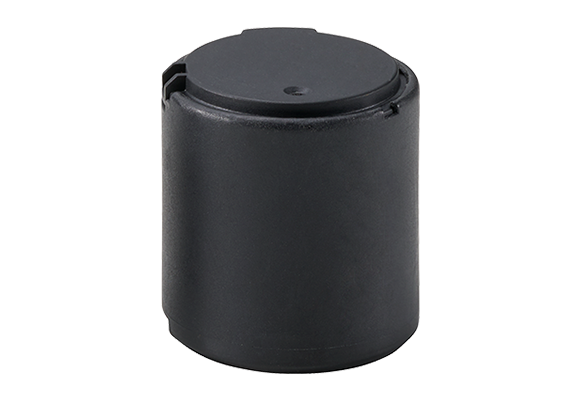

| CLF-25WX01 | ![]() |
LVC | Φ25.0mm×H27.0mm | 60 | 1.2 | 3D CAD (STP) |
| CLF-25WX02 | ![]() |
LVC | Φ25.0mm×H27.0mm | 75 | 1.2 | 3D CAD (STP) |

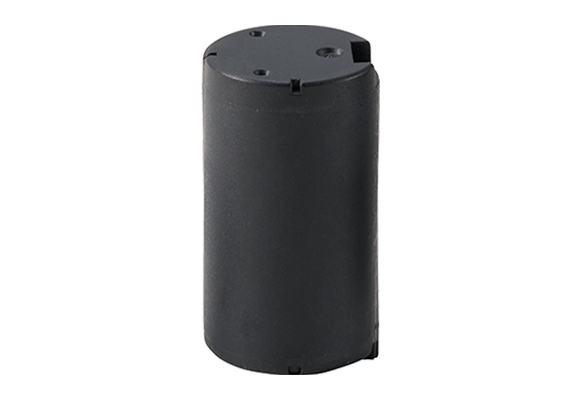

| CLF-16WX01 | ![]() |
LVC | Φ16.0mm×H29.0mm | 60 | 2.2 | 3D CAD (STP) |
| CLF-16WX02 | ![]() |
LVC | Φ16.0mm×H29.0mm | 75 | 2.2 | 3D CAD (STP) |

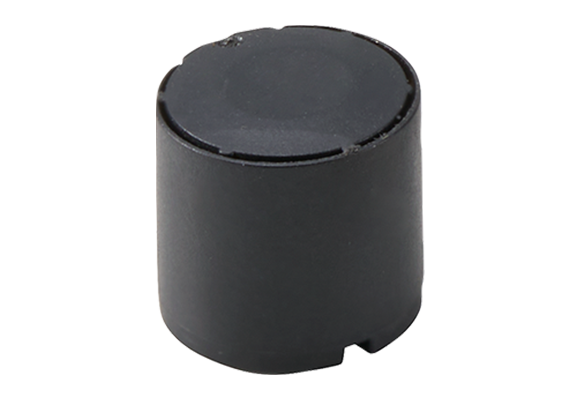

| CLF-10WX01 | ![]() |
LVC | *Φ10mm×H10mm |
