Flange type torque transducer

Custom

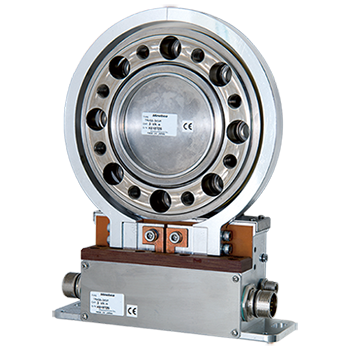

We offer a range of flange-type torque transducers with optical transmission, including the TMHSA, TMHSB, TMHS, TMHFB, and TMOFB models, which transmit signals optically. These transducers feature low noise, a space-saving design, and support for high-speed rotation, along with high rigidity and excellent fatigue resistance for stable use. Additionally, when combined with dedicated strain gauges and amplifiers, they provide long-term stability and high precision.

Download

Parts List
Engineering Information
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outline	Rated capacity

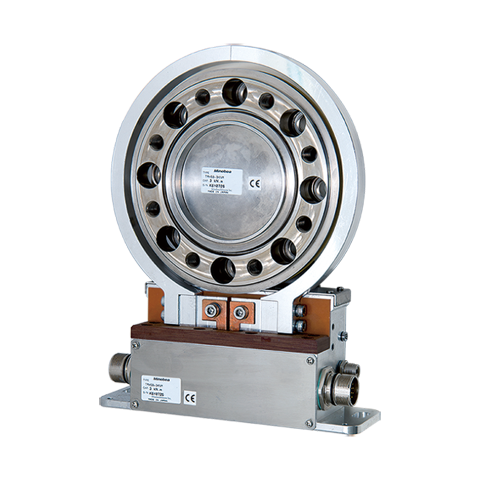

Optical transmission method flange type torque meter TMHSA series	High speed and Accurate type optical transmission method flange type torque meter Stator outputs ±10 V without connecting the transmittor. Rated capacity : ±100 N･m to ±3 kN･m	±100 N･m to ±10 kN･m
Optical transmission method flange type torque meter TMHSB series	High accuracy, high response and high speed type optical transmission method flange type torque meter, Stator outputs ±10 V without a transmittor. CE mark applicable. Rated capacity : ±100 N･m to ±10 kN･m	±100 N･m to ±10 kN･m

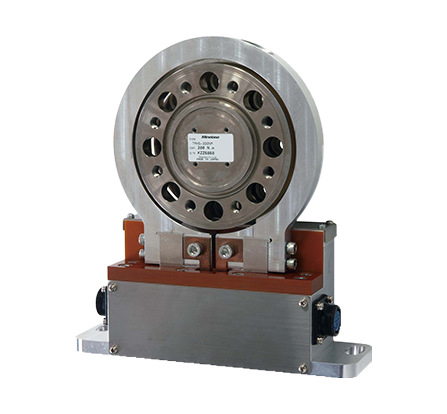

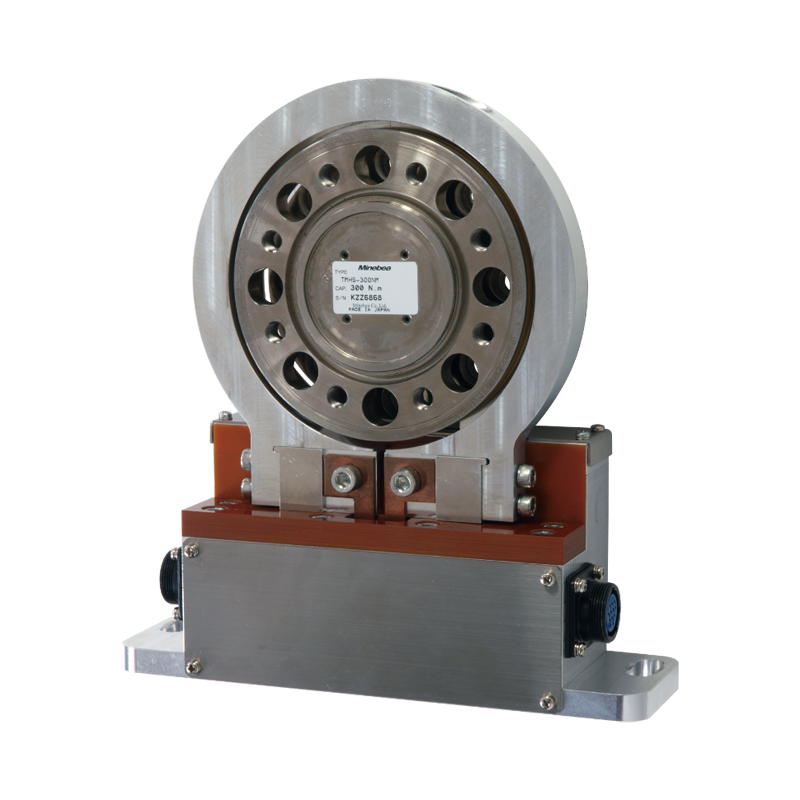

Optical transmission method flange type torque meter TMHS series	High speed and Accurate type optical transmission method flange type torque meter Rated capacity : ±100 N･m to ±3 kN･m	±100 N･m to ±3 kN･m

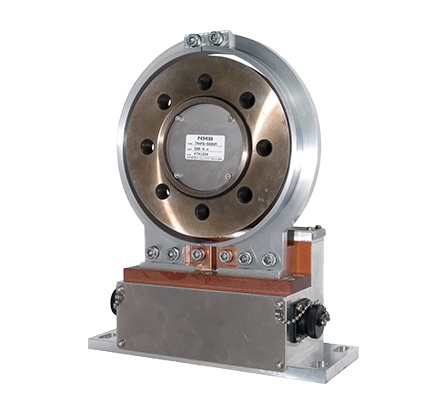

Optical transmission method flange type torque meter TMHFB series	Optical transmission method thin flange type torque transducer Rated capacity : ±100 N･m to ±10 kN･m	±100 N･m to ±10 kN･m

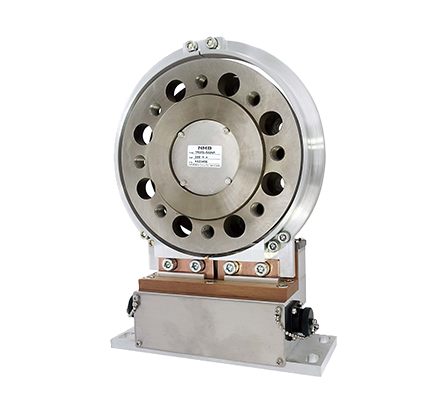

Optical transmission method flange type torque meter TMOFB series	Optical transmission method thin flange type torque transducer Rated capacity : ±500 N･m to ±5 kN･m	±100 N･m to ±10 kN･m
