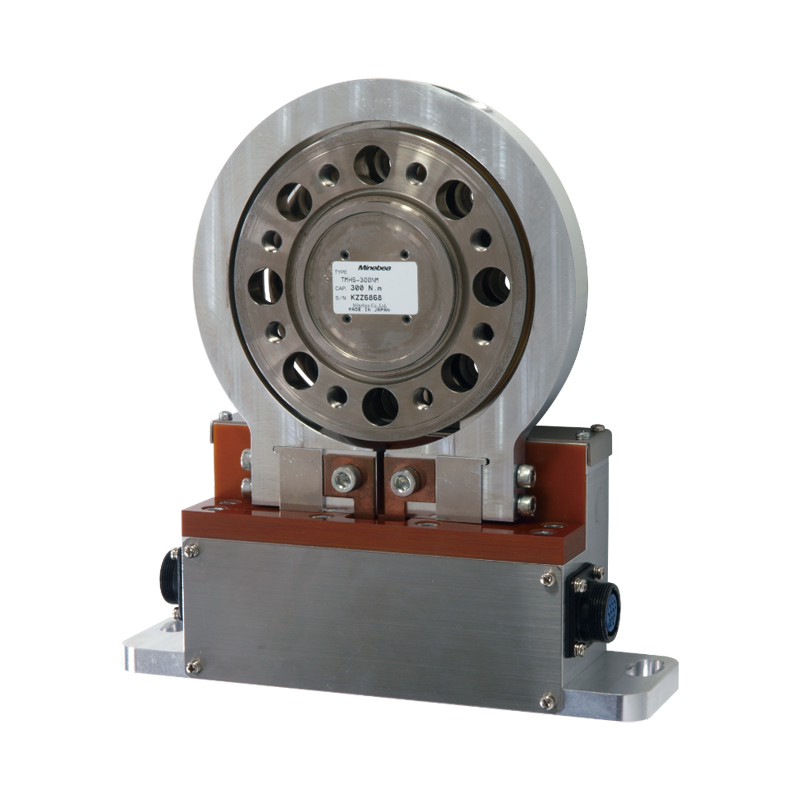

Optical transmission method flange type torque meter TMHSA series

Custom

We offer a range of flange-type torque transducers with optical transmission, including the TMHSA, TMHSB models, which transmit signals optically. These transducers feature low noise, a space-saving design, and support for high-speed rotation, along with high rigidity and excellent fatigue resistance for stable use. Additionally, when combined with dedicated strain gauges and amplifiers, they provide long-term stability and high precision.

Features

・Compact size and light weight. Available for high speed measurement by bearing-free structure. (25 000 rpm: 100 Nm to 300 Nm, 22 000 rpm: 500 Nm, 1 kNm, 16 000 rpm: 2 kNm, 3 kNm, 14 000 rpm: 5 kNm, 12 000 rpm: 10 kNm)
・Measurement accuracy of ±0.02 %R.O. in frequency output and ±0.03 %R.O. in voltage output is achieved.
・Stator antenna has a split configuration to facilitate mounting and detachment.
・Special transmitter OPT-564 is provided.The operation without this transmitter is available and the stator outputs ±10 V.
・Calibraton software provided transfers commands between TMHSA and a PC, and allows users to read TMHSA setting parameter, proceed calibration, or write the number of moving average and the analog filter frequency.
・The detector for rotation speed and rotaional direction is prepared as an option.
・High accuracy and low noise are achieved by the digital singnal transmission by the optical transmission method of the patent.
(USA PAT No. US6.472.656.B2, Japanese PAT No.3448738, PAT No.3453654)

scroll

Specification name	Specification contents
Rated output	Voltage output: ±10 VDC, Frequency output: 10 kHz±5 kHz (Resistive load: 2 kΩ or more, Output capacitance load: 0.1 μF or less.)
Measurement accuracy	Frequency output: ±0.02 %R.O., Voltage output: ±0.03 %R.O. (including linearity, hysteresis and repeatablity.)
Zero adjustment range	±2 %R.O.
Symmetry correction range	±10 ％R.O.
Moving average	Selectable from 1 time, 2 times, 4 times, 8 times, 16 times, 32 times, 64 times, 128 times, 256 times and 512 times (Default: 1 time)
Low pass filter	Selectable from 1 Hz, 10 Hz, 30 Hz, 50 Hz, 100 Hz, 300 Hz, 500 Hz, and 1 kHz. (Default: 1 kHz)
Output polarity inversion	Output polarity is inverted relative to the direction of torsion.
Temp. range, safe	-10 ℃ ~ 70 ℃
Temp. range, compensated	0 ℃ ~ 60 ℃ (non-condensing)
Temp. effect on zero balance	0.02 %R.O./10 ℃
Temp. effect on output	0.03 %LOAD/10℃
Zero shift by rotation	0.5 %R.O.p-p (WB=1 kHz)
Class of protection	IP54 or equivalent
Material (Rotor part)	Alloy steel
Material (Stator part)	Alluminium alloy

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N･m]	Rated capacity [kN･m]	Maximum rotation speed [rpm]	Zero shift by rotation [%R.O.p-p]	Mechanical characteristics Inertia moment [kg･cm²]	Mechanical characteristics Torsional rigidity [kN･m/rad]	Mechanical characteristics Torsional peculiar pitch [KHz]	Mechanical characteristics Bending peculiar pitchTorsional rigidity [KHz]	Mechanical characteristics Bending peculiar pitchThrust direction [KHz]	Mechanical characteristics Twist angle at rated capacity [°]	Mechanical characteristics Twist angle at rated capacity [N]	Mechanical characteristics Accuracy safe thrust load [N]	CAD files[DXF]	CAD files [DXF] with detector for rotation speed and rotational direction RPM	3D CAD files [STEP]	Weight(Approx.) [kg]	Weight (Approx.) [kg]
TMHSA-100NM	±100		25000	0.5	13.79	325	4.757	2.821	3.458	0.018	75	65	tmhsa-100-300NM.dxf	tmhsa_RPM-100.dxf	TMHSA-100NM.STEP	1	1.5
TMHSA-200NM	±200		25000	0.5	13.8	371.4	5.161	2.911	3.528	0.031	150	130	tmhsa-100-300NM.dxf	tmhsa_RPM-100.dxf	TMHSA-200NM.STEP	1	1.5
TMHSA-300NM	±300		25000	0.5	13.82	472.7	5.882	3.073	3.656	0.036	225	195	tmhsa-100-300NM.dxf	tmhsa_RPM-100.dxf	TMHSA-300NM.STEP	1	1.5
TMHSA-500NM	±500		22000	0.5	19.77	660.7	5.701	3.135	3.715	0.043	375	325	tmhsa-500NM.dxf	tmhsa_RPM-500.dxf	TMHSA-500NM.STEP	1.2	1.5
TMHSA-1KNM		±1	22000	0.5	26.86	909.8	5.899	3.492	4.519	0.063	750	650	tmhsa-1KNM.dxf	tmhsa_RPM-1K.dxf	TMHSA-1KNM.STEP	1.6	1.5
TMHSA-2KNM		±2	16000	0.5	107.6	1515	3.801	1.763	2.38	0.076	800	3750	tmhsa-2-3KNM.dxf	rpm2K.dxf	TMHSA-2KNM.STEP	3.5	1.5
TMHSA-3KNM		±3	16000	0.5	107.8	1881	4.258	1.995	2.59	0.091	1000	12000	tmhsa-2-3KNM.dxf	rpm2K.dxf	TMHSA-3KNM.STEP	3.5	1.5
TMHSA-5KNM		±5	14000	0.5	260.3	2647	3.233	1.857	2.356	0.108	1650	20000	tmhsa-5KNM.dxf	tmhsa_RPM-5K.dxf	TMHSA-5KNM.STEP	6	1.7
TMHSA-10KNM		±10	12000	0.5	668.4	4043	2.489	1.368	1.67	0.142	2750	22000	tmhsa-10KNM.dxf	tmhsa_RPM-10K.dxf	TMHSA-10KNM.STEP	10.2	1.7

* Accuracy safe bending load and accuracy safe thrust load are the load (actual measurement value) which generate output error of 0.05%R.O.
* Accuracy safe bending load is the result of applying the load at the position of 200 mm from the flange edge.
* All are the gurantee over static load.

Specification sheet
Rotation detector for rotation speed and rotational direction : RPM
- Rotation detector RPM No.KT53515-2
Specification sheet
Cable
- Connecting cable CAC-176C No.KT54323-1
Instruction Manual
- EN294-1806
- Calibration software manual No.EN294-1799
Specification
- No.KT54341-2
- Dedicated cable: CAC-176C-*M (φ11/ 10-cores shielded cable with connector at the both end). (Selectable from 10 m/ 20 m or 30 m)
- Dedicated transmitter: OPT-564
- Rotation detector for rotation speed and rotational direction : RPM
