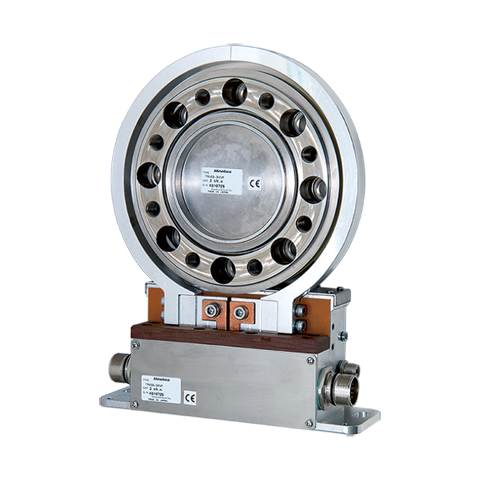

Optical transmission method flange type torque meter TMHSB series

Custom

We offer a range of flange-type torque transducers with optical transmission, including the TMHSA, TMHSB models, which transmit signals optically. These transducers feature low noise, a space-saving design, and support for high-speed rotation, along with high rigidity and excellent fatigue resistance for stable use. Additionally, when combined with dedicated strain gauges and amplifiers, they provide long-term stability and high precision.

Features

・Compact size and light weight.
Available for high speed measurement by bearing-free structure.
(25 000 rpm: 100 Nm to 300 Nm, 22 000 rpm: 500 Nm, 1 kNm, 16 000 rpm: 2 kNm, 3 kNm, 14 000 rpm: 5 kNm, 12 000 rpm: 10 kNm)
・Measurement accuracy of ±0.02 %R.O. in frequency output and ±0.03 %R.O. in voltage output is achieved.
・The frequency response improves to 6kHz more than 1kHz of the TMHSA type.
・The torque signal outputs the frequency output and the voltage output at the same time.
・Calibraton software provided transfers commands between TMHSA and a PC,
and allows users to read TMHSA setting parameter,
proceed calibration, or write the number of moving average and the analog filter frequency.
・Even when a momentary error occurs, the error content can be confirmed because the error log is recorded
・CE mark is applicable.
・High accuracy and low noise are achieved by the digital singnal transmission by the optical transmission method of the patent.
(USA PAT No. US6.472.656.B2, Japanese PAT No.3448738, PAT No.3453654)
・Special transmitter OPT-564 is available to connect.

scroll

Specification name	Specification contents
Rated capacity	±100 N･m～±10 kN･m
Safe overload	150 %R.C.
Ultimate overload	300 %R.C.
Rated output	Voltage output: ±10 VDC, Frequency output: 240 kHz±120 kHz
Measurement accuracy	"Frequency output: ±0.02 %R.O., Voltage output: ±0.03 %R.O." (including linearity, hysteresis and repeatablity.)
Output polarity inversion	Output polarity is inverted relative to the direction of torsion.
Temp. range, safe	-10 ℃ ~ 70 ℃
Temp. range, compensated	0 ℃ ~ 60 ℃ (non-condensing)
Temp. effect on zero balance	0.02 %R.O./10 ℃
Temp. effect on output	0.03 %LOAD/10℃
Zero shift by rotation	0.5 %R.O.p-p (WB=6 kHz)
Measurement frequency range	6 kHz
Group deloy	< 1.2 ms
Class of protection	IP54 or equivalent
Material (Rotor part)	Alloy steel
Material (Stator part)	Alluminium alloy

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N･m]	Rated capacity [kN･m]	Maximum rotation speed [rpm]	Zero shift by rotation [%R.O.p-p]	Mechanical characteristics Inertia moment [kg･cm²]	Mechanical characteristics Torsional rigidity [kN･m/rad]	Mechanical characteristics Torsional peculiar pitch [KHz]	Mechanical characteristics Bending peculiar pitchTorsional rigidity [KHz]	Mechanical characteristics Bending peculiar pitchThrust direction [KHz]	Mechanical characteristics Twist angle at rated capacity [°]	Mechanical characteristics Twist angle at rated capacity [N]	Mechanical characteristics Accuracy safe thrust load [N]	CAD files[DXF]	CAD files [DXF] with detector for rotation speed and rotational direction RPM	3D CAD files [STEP]	Weight(Approx.) [kg]	Weight (Approx.) [kg]
TMHSB-100NM	±100		25000	0.5	13.79	325	4.757	2.821	3.458	0.018	75	65	tmhsb-100NM.dxf	tmhsb-RPM-100NM.dxf	TMHSB-100NM.STEP	1	1.5
TMHSB-200NM	±200		25000	0.5	13.8	371.4	5.161	2.911	3.528	0.031	150	130	tmhsb-100NM.dxf	tmhsb-RPM-100NM.dxf	TMHSB-200NM.STEP	1	1.5
TMHSB-300NM	±300		25000	0.5	13.82	472.7	5.882	3.073	3.656	0.036	225	195	tmhsb-100NM.dxf	tmhsb-RPM-100NM.dxf	TMHSB-300NM.STEP	1	1.5
TMHSB-500NM	±500		22000	0.5	19.77	660.7	5.701	3.135	3.715	0.043	375	325	tmhsb-500NM.dxf	tmhsb-RPM-500NM.dxf	TMHSB-500NM.STEP	1.2	1.5
TMHSB-1KNM		±1	22000	0.5	26.86	909.8	5.899	3.492	4.519	0.063	750	650	tmhsb-1KNM.dxf	tmhsb-RPM-1KNM.dxf	TMHSB-1KNM.STEP	1.6	1.5
TMHSB-2KNM		±2	16000	0.5	107.6	1515	3.801	1.763	2.38	0.076	800	3750	tmhsb-2KNM.dxf	tmhsb-RPM-2KNM.dxf	TMHSB-2KNM.STEP	3.5	1.5
TMHSB-3KNM		±3	16000	0.5	107.8	1881	4.258	1.995	2.59	0.091	1000	12000	tmhsb-2KNM.dxf	tmhsb-RPM-2KNM.dxf	TMHSB-3KNM.STEP	3.5	1.5
TMHSB-5KNM		±5	14000	0.5	260.3	2647	3.233	1.857	2.356	1.368	1650	20000	tmhsb-5KNM.dxf	tmhsb-RPM-5KNM.dxf	TMHSB-5KNM.STEP	6.00	1.7
TMHSB-10KNM		±10	12000	0.5	668.4	4043	2.489	1.368	1.670	0.142	2750	22000	tmhsb-10KNM.dxf	tmhsb-RPM-10KNM.DXF		10.2	1.7

* Accuracy safe bending load and accuracy safe thrust load are the load (actual measurement value) which generate output error of 0.05%R.O.
* Accuracy safe bending load is the result of applying the load at the position of 200 mm from the flange edge.
* All are the gurantee over static load.

Specification sheet
Rotation detector for rotation speed and rotational direction : RPM
- Rotation detector RPM No.KT53515-2
Specification sheet
Cable
- Connecting cable CAC-176D No.KT54839-2
Instruction Manual
- EN294-1860
- Calibration software manual No.EN294-1866
Specification
- No.KT54835-2
- Dedicated cable: CAC-176D-*M (φ12.5/ 16-cores shielded cable with connector at the both end). (Selectable from 10 m/ 20 m or 30 m)
- Rotation detector for rotation speed and rotational direction : RPM
