Load cell used for industrial scales.
Download
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
External view |
Features |
Rated capacity |
|---|---|---|---|
| TCP1 series |  |
Suitable for the weighing systems, such as hopper, tank, etc. | 490.3 N {50 kgf}～196.1 kN {20 tf} |

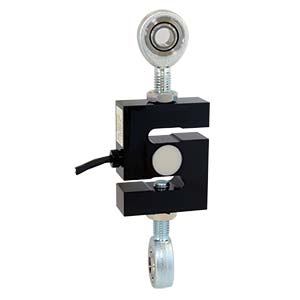

| S-beam type |  |
Suitable for the weighing systems, such as hopper, tank, etc. | 980.7 N{100 kgf}～49.03kN{5 tf} |
| S-beam type OIML standard |  |
Suitable for the weighing systems, such as hopper, tank, etc. | 1.961 N{200 kgf}～19.61 kN{2 tf} |
| S-beam type General spec. |  |
Suitable for the weighing systems, such as hopper, tank, etc. | 1.961 N{200 kgf}～19.61 kN{2 tf} |
| Compact type |  |
Suitable for high-accurate measurement. | 196.1 N {20 kgf}～49.03 kN {5 tf} |
| Compact light weight type |  |
All stainless structure. UMM1R : Robot cable is attached. | 490.3 N{50 kgf}～19.61 kN{2 tf} |
| Compact type(U3) |  |
High accuracy, tension / compression service load cell | 196.1 N{20 kgf}～9.807 kN{1 tf} |
| Crane use |  |
Suitable for tension force measurement such as crane wire rope. | 49.03 kN {5 tf}～490.3 kN{50 tf} |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
