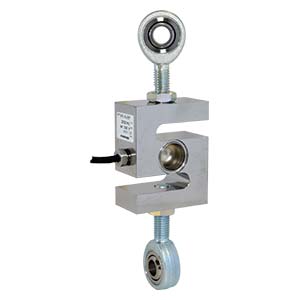

S-beam type OIML standard

Load cell used for industrial scales.

Features

Suitable for the weighing systems, such as hopper, tank, etc.

scroll

Specification name	Specification contents
Accuracy class	OIML R60 C3
Maximum scale interval	3,000
Rated capacity	200kg～2t
Minimum detected scale	20g～200g
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	Tension load : -2 mV/V±0.02 mV/V, Compression load : 2 mV/V±0.02 mV/V
Non-linearity	0.023 %R.O.
Hysteresis	0.023 %R.O.
Repeatability	0.010 %R.O.
Creep	0.016 %R.O./30 min
Creep recovery	0.016 %R.O./30 min
Excitation, recommended	12 V or less
Max. excitation	20 V
Zero balance	±0.02 mV/V
Input resistance	420 Ω±40 Ω
Output resistance	350 Ω±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－20 ℃～80 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP68 or equivalent
Material of element	Stainless Steel
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kg]	Rated capacity [t]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
U2S1-200K-C3	200		0.9	2000	0.10	φ4.7, 4-cores shielded 6 m cable directly attached with Y-type crimp terminal lugs at cable end.	U2S1-200K.STEP	u2s1_200k.DXF	No.KT53538-2_A	No.ENKT60247-1-G
U2S1-250K-C3	250		0.9	2000	0.10	φ4.7, 4-cores shielded 6 m cable directly attached with Y-type crimp terminal lugs at cable end.	U2S1-250K.STEP	u2s1_200k.DXF	No.KT53538-2_A	No.ENKT60247-1-G
U2S1-500K-C3	500		0.9	2000	0.15	φ4.7, 4-cores shielded 6 m cable directly attached with Y-type crimp terminal lugs at cable end.	U2S1-500K.STEP	u2s1_200k.DXF	No.KT53538-2_A	No.ENKT60247-1-G
U2S1-1T-C3		1	0.9	2000	0.30	φ4.7, 4-cores shielded 6 m cable directly attached with Y-type crimp terminal lugs at cable end.	U2S1-1T.STEP	u2s1_200k.DXF	No.KT53538-2_A	No.ENKT60247-1-G
U2S1-2T-C3		2	2.0	2500	0.30	φ4.7, 4-cores shielded 6 m cable directly attached with Y-type crimp terminal lugs at cable end.	U2S1-2T.STEP	u2s1_2t.DXF	No.KT53538-2_A	No.ENKT60247-1-G
