Load cell used for industrial scales.
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
External view |
Features |
Rated capacity |
|---|---|---|---|

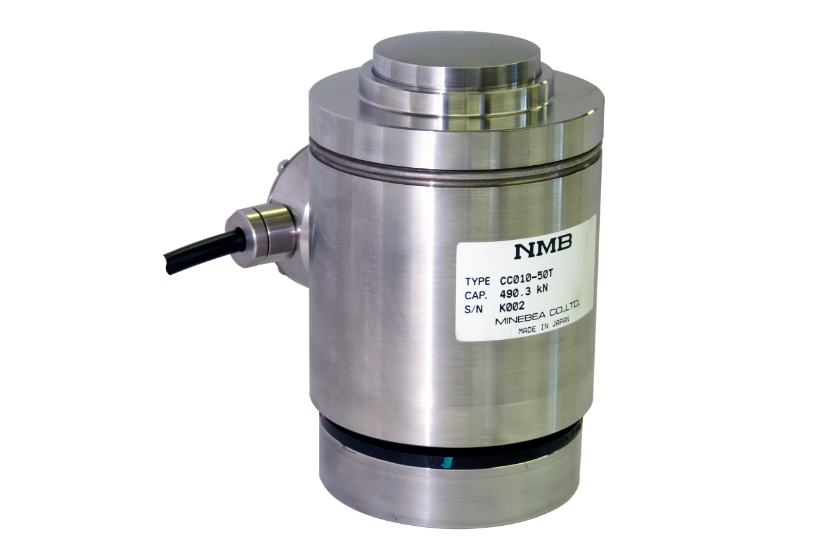

| Double convex type compression service load cell CC010-C3 series (OIML spec.) |  |
・Double convex mechanism. ・All stainless steel hermetic sealed structure. ・Available for OIML R60 Class C3 certified model. |
2t～50t |
| Double convex type compression service load cell CC010 series (General spec.) |  |
・Double convex mechanism. ・All stainless steel hermetic sealed structure. |
4.903 kN {500 kgf}～490.3 kN{50 tf} |
| Square beam type accurate load C3B1-＊ series (OIML spec.) |  |
・Ideal for the measuring system of floor scale, tank scale and hopper. ・Available for OIML R60 Class C4 certified model. |
200kg～5t |
| Square beam type load cell C3B1-＊-NS series (General spec.) |  |
Ideal for the measuring system of floor scale, tank scale and hopper. | 1.961 kN {200 kgf}～49.03 kN {5 tf} |
| Square beam type load cell C2B1B-＊-C3 series (OIML spec.) |  |
・Ideal for weighing system of floor / tank / hopper scale. ・Available for OIML R60 Class C3 certified model. ・C2B1B (General Spec.) 200 kg {1.961 kN} ~ 2t {19.61 kN} |
200kg～2t |
| Square beam type load cell C2B1B-※ series (General Spec.) |  |
Ideal for weighing system of floor / tank / hopper scale. | 200 kg (1.961 kN) ～ 2 ton (19.61 kN) |
| Beam type accurate load cell CBE1-C3- ※ series (OIML spec.) |  |
・Beam type load cell with all stainless structure. ・Rated capacity : CBE1-C3 (OIML standard) 5 kg ~ 200 kg |
10kg～200kg |
| Beam type load cell CBE1- ※ series (General Spec.) |  |
Beam type load cell with all stainless structure. | 49.03 N {5 kgf}～1.961 kN {200 kgf} |
| Compact size compression type load cell CMM1R-※ series |  |
Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}～19.61 kN {2 tf} |
| Compact size compression type load cell CMM1J-※ series |  |
Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}～19.61 kN {2 tf} |
| Accurate compression type load cell CMP1-※ series |  |
Precise low profile load cell with all stainless steel structure. | 2.452 kN {250 kgf}～196.1 kN {20 tf} |
| Accurate canister type load cell CCP1(A)-※ series |  |
Ideal for the weighing system of hopper & tank scales, etc. | 490.3 N {50 kgf}～196.1 kN{20 tf} |
| Explosion-proof canister type load cell CCP1-※-Z series |  |
Suitable for high explosion risk envitonment such as with flammable liquid or gas. | 1.961 kN {200 kgf}～196.1 kN {20 tf} |
| High capacity compression type load cell CCS1-※ series |  |
Applied to big rated capacity. | 490.3 kN {50 tf}～2.942 MN {300 tf} |
| High overload capacity compression type CCR1(B)-※ series |  |
Canister type load cell with safe overload capacity. | 4.903 kN {500 kgf}～196.1 kN {20 tf} |
| Low profile shear-web type CWV1-※ series |  |
Shear-web type structure and strong in lateral load. | 19.61 kN {2 tf}～980.7 kN {100 tf} |
| Beam type load cell CBC1-※ series |  |
Suitable for the weighing systems of which mounting space is limited. | 49.03 N {5 kgf}～19.61 kN {2 tf} |
| Double convex type load cell CC002-※ series |  |
Load cell for truck scale with stainless steel construction. Approved OIML R60 Class C6. |
10t～30t |
| Double convex type load cell DC002 series with digital output |  |
The built-in amplifier with excellent noise-proof enables high precision measurement. Approved OIML R60 Class C6. |
10t～40t |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
