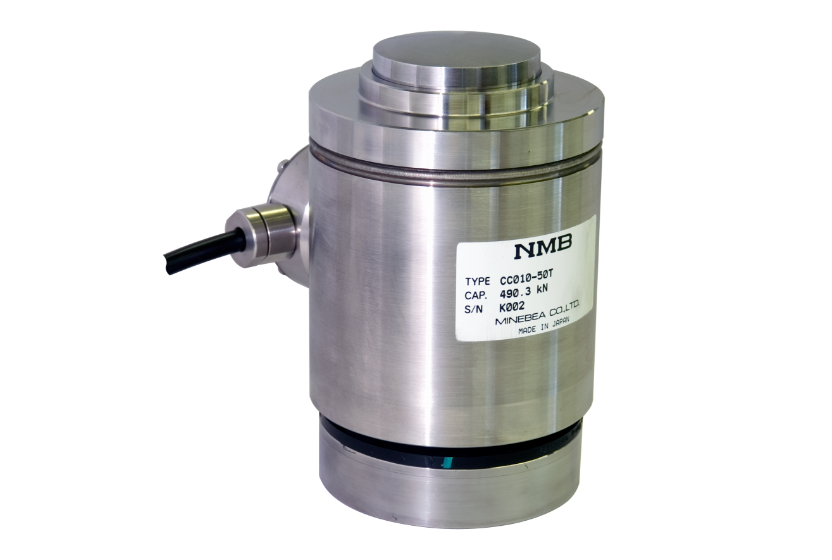

Double convex type compression service load cell CC010 series (General spec.)
Load cell used for industrial scales.
Features
・Double convex mechanism.
・All stainless steel hermetic sealed structure.
-
-
scroll
Specification name
Specification contents
Rated capacity 4.903 kN {500 kgf}～490.3 kN{50 tf} Safe overload 150 %R.C. Ultimate overload 200 %R.C. Rated output 2 mV/V±0.002 mV/V Accuracy 0.04 %R.O. (Including non-linearity, hysteresis and repeatability) Creep 0.03 %R.O./30 min Creep recovery 0.03 %R.O./30 min Excitation, recommended 12 V or less Excitation, maximum 20 V Zero balance ±0.02 mV/V Input resistance 693 Ω ～ 707 Ω Output resistance 695 Ω ～ 705 Ω Insulation resistance 5 000 MΩ or more (DC50 V)(between bridge and main body) Temp. range, compensated －10 ℃～50 ℃ Temp. range, safe －20 ℃～70 ℃ Temp. effect on zero 0.028 %R.O./10 ℃ Temp. effect on output 0.03 %LOAD/10 ℃ Class of protection IP68 or equivalent Material of element Stainless steel -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Rated capacity
[kN]Rated capacity
[kgf]Rated capacity
[tf]Natural frequency
[Hz]Rated displacement
[mm]Weight(Approx. )
[kg]Cable
3D CAD files [STEP]
CAD files[DXF]
Specification sheet
Instruction Manual
CC010-500K 4.903 500 5400 0.9 5 φ7.0, 4-cores shielded 5 m cable directly attached, cable end is separated CC010-500K~1T.zip cc010_500k.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-1T 9.807 1 9400 0.6 5 φ7.0, 4-cores shielded 5 m cable directly attached, cable end is separated CC010-500K~1T.zip cc010_500k.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-2T 19.61 2 6800 0.6 5 φ7.0, 4-cores shielded 5 m cable directly attached, cable end is separated CC010-2T~3T.zip cc010_2t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-3T 29.42 3 8100 0.6 5 φ7.0, 4-cores shielded 5 m cable directly attached, cable end is separated CC010-2T~3T.zip cc010_2t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-5T 49.03 5 6100 0.6 5 φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated CC010-5T.zip cc010_5t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-10T 98.07 10 2000 0.13 5 φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated CC010-10T~30T.zip cc010_10t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-20T 196.1 20 2700 0.15 5 φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated CC010-10T~30T.zip cc010_10t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-30T 294.2 30 3100 0.16 5 φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated CC010-10T~30T.zip cc010_10t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf CC010-50T 490.3 50 3400 0.19 5 φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated CC010-50T.zip cc010_50t.dxf No.KT52123-2 ENKT60387-1_CC010.pdf -
- ＜Bearing plate＞
- AIC series AIC1
- ＜Mounting plate＞
- AIC series AIC1
- ＜Mounting attachment with slide-stop mechanism＞
- Flexible stop method mounting attachment FCACC010-*B (S) series
- Check rod method mounting attachment CCACC010-*B (S)
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
