Flexible stop method mounting attachment FCACC010-*B (S) series

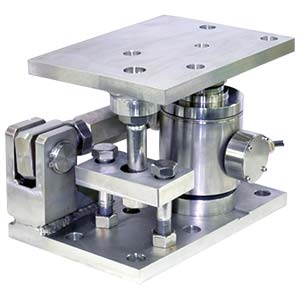

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Equipped with lift-off protection fitting
・All stainless steel construction (Available for alloy steel construction)
・Most suitable for the tank where the vibration such as pugmill is generated.

  • scroll

    Specification name

    Specification contents
    Applicable load cell CC010-500K～50T / CC010-2T～50T-C3
    Allowable horizontal moving length ±8 mm (with directionarity)
    Material SUS304 or equivalent / SS400 or equivalent (Electroless nickel plating)
    Accessories Guide plate, Hexagon socket head cap screws, Instruction manual, Dummy load cell, Lift-off protection fitting, Washer, Earth cable

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Applicable load cell

    Allowable horizontal load
    [kN]

    Allowable horizontal load
    [tf]

    Allowable lifting load
    [kN]

    Allowable lifting load
    [tf]

    Weight(Approx. )
    [kg]

    Material

    3D CAD files [STEP]

    CAD files[DXF]
    FCACC010-3B* CC010-500K(-C3)～CC010-50T(-C3)*** ±29.42 ±3.00 ±39.23 ±4 17 SS400 or equivalent (Electroless nickel plating) FCA-CC010-3BS.STEP fca_cc010_500k_10t.dxf
    FCACC010-6B* CC010-500K(-C3)～CC010-50T(-C3)*** ±58.84 ±6.00 ±78.46 ±8 21 SS400 or equivalent (Electroless nickel plating) FCA-CC010-6BS.STEP fca_cc010_20t.dxf
    FCACC010-12B* CC010-500K(-C3)～CC010-50T(-C3)*** ±117.7 ±12.00 ±117.7 ±12 34 SS400 or equivalent (Electroless nickel plating) FCA-CC010-12BS.STEP fca_cc010_30t_50t.dxf
    FCACC010-3B*S CC010-500K(-C3)～CC010-50T(-C3)*** ±29.42 ±3.00 ±39.23 ±4 17 SUS304 or equivalent FCA-CC010-3BS.STEP fca_cc010_500k_10t.dxf
    FCACC010-6B*S CC010-500K(-C3)～CC010-50T(-C3)*** ±58.84 ±6.00 ±78.46 ±8 21 SUS304 or equivalent FCA-CC010-6BS.STEP fca_cc010_20t.dxf
    FCACC010-12B*S CC010-500K(-C3)～CC010-50T(-C3)*** ±117.7 ±12.00 ±117.7 ±12 34 SUS304 or equivalent FCA-CC010-12BS.STEP fca_cc010_30t_50t.dxf

  • Instruction Manual

    Specification sheet

    • Welding　plate FCAW-*

Custom

Custom Request (Custom Sensors)

Various custom sensors made to meet the customer's requirements.
  • ※
    Custom products are intended for mass production. Please consult us for small-lot orders.
