Load cell

Mounting attachment

The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion generated in the mounted place, and the exact weight can be measured accuratly.

Sort
Parts Product image Outline Allowable horizontal moving length
(No directionarity)
[mm]
Allowable horizontal moving length
(with directionarity)
[mm]

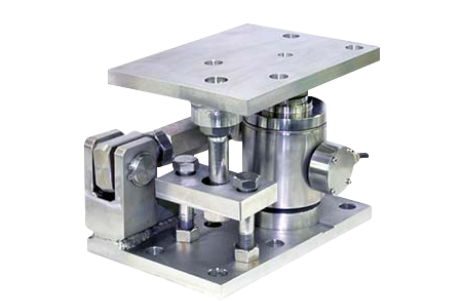

Check rod method mounting attachment CCACC010-*B (S)s_cca_cc010.jpgEquipped lift-off protection fitting. Expansion capability in all directions
Applicable transducer : CC010-500K~50T
±3
Flexible stop method mounting attachment FCACC010-*B (S) seriess_fca_cc01.jpgEquipped lift-off protection fitting. Most suitable where the vibration is generated.
Applicable transducer : CC010-500K~50T
±8
Flexible stop method mounting attachment FCA-CMM1/CMP1 seriess_fca_cmm1.jpgMost suitable for the tank with stir machine where the vibration is generated.
Applicable transducer : CMM1-50K~2T, CMP1-250K~20T
±10
Steel ball method mounting attachment SCA-CMM1/CMP1 seriess_sca_cmp1.jpgMost suitable where the vibration is generated.
Applicable transducer : CMM1-50K~2T, CMP1-250K~20T
±10
Check rod method mounting attachment CCA-CMP1-*-Ss_cca-cmp1.jpgEquipped lift-off protection fitting as a standard. All stainless steel structure.
Applicable transducer : CMP1-250K~20T
±5
Flexibel lock method mounting attachment FCA-CCP1-* seriess_fca_ccp1.jpgMost suitable where the vibration is generated. Available for explosion-proof load cell.
Applicable transducer : CCP1(A)-200K~20T(-U, -Z)
±10
Check rod method mounting attachment CCA-CC002-*s_cca_cc002.jpgEquipped lift-off protection fitting as a standard.
Applicable transducer : CC002-10T~30T-NS
±7
Rocker pin method mounting attachment RCA-C3B1 seriess_rca_c3b1.jpgSpace-saving, low cost type. Expansion capability in all directions.
Applicable transducer : C3B1-200K~5T-NS
±2
Rocker pin method mounting attachment RCA-C2B1B-*-S seriess_rca_c2b1b.jpgSpace-saving, low cost type with stainless steel structure. Expansion capability in all directions.
Applicable transducer : C2B1B-200K~2T
±2
Check rod method mounting attachment CCACBE1-*CSEquipped the lift-off protection mechanism.
Applicable transducer : CBE1-5K~200K, CBE1-10K~200K-C3
±3
