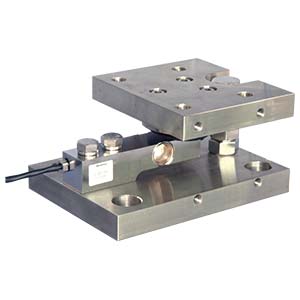

Rocker pin method mounting attachment RCA-C2B1B-＊-S series

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Space saving mounting attachment with slidestop mechanism.
・Non-restrictive arrangement.

scroll

Specification name	Specification contents
Applicable load cell	C2B1B-200K～2T / C2B1B-200K ~ 2T-C3
Allowable horizontal moving length	±2 mm（No directionarity）
Material	SUS304 or equivalent
Accessories	Washer, Guide plate, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Applicable load cell	Allowable horizontal load [%R.C.]	Allowable lifting load [kN]	Allowable lifting load [tf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
RCA-C2B1B-200K~-1T	C2B1B-200K~-1T	±30	±19.61	±2	9.1	SUS304 or equivalent	RCA-C2B1B-200K-1T-S.STEP	RCA-C2B1B-200K～1T-S.DXF
RCA-C2B1B-2T	C2B1B-2T	±30	±19.61	±2	10.1	SUS304 or equivalent	RCA-C2B1B-2T-S.STEP	RCA-C2B1B-2T-S.DXF
