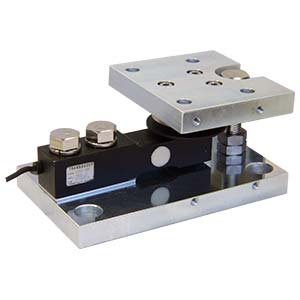

Rocker pin method mounting attachment RCA-C3B1 series

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Space saving, economically priced mountingattachment with slide stop mechanism.
・Non-restrictive arrangement.

scroll

Specification name	Specification contents
Applicable load cell	C3B1-200K～5T-NS / C3B1-200K ~ 5T
Allowable horizontal moving length	±2 mm（No directionarity）
Material	SS material (with plating process)
Accessories	Washer, Guide plate, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Applicable load cell	Allowable horizontal load [%R.C.]	Allowable lifting load [kN]	Allowable lifting load [tf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
RCA-C3B1-200K/1T	C3B1-200K~1T-NS	±30	±19.61	±2	9.1	SS400 or equivalent (with plating process)	RCA-C3B1-200K~1T.STEP	RCA-C3B1-200K_1T.DXF
RCA-C3B1-2T/5T	C3B1-2T~5T-NS	±30	±19.61	±2	10.1	SS400 or equivalent (with plating process)	RCA-C3B1-2T~5T.STEP	RCA-C3B1-2T_5T.DXF
