Flexible stop method mounting attachment FCA-CMM1/CMP1 series

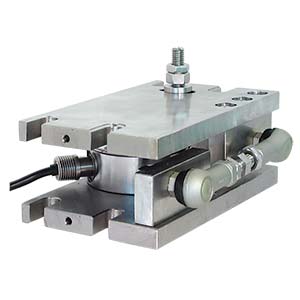

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・For Tank or Hopper applications excellentwhen aggitation is a problem

scroll

Specification name	Specification contents
Applicable load cell	CMM1/CMM1R/CMM1J-50K～2T, CMP1-250K～20T
Allowable horizontal moving length	±10 mm
Material	SUS304 or equivalent(Rod end is painted by stainless)
Accessories	Dammy load cell, Guide plate, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Applicable load cell	Allowable horizontal load [kN]	Allowable horizontal load [tf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
FCA-CMM1-50K/2T-S	CMM1/CMM1R/CMM1J-50K～2T	±11.77	±1.2	8	SUS304 or equivalent (Rod end is painted by stainless)	FCA-CMM1-50K-2T-S.STEP	fca_cmm1_50k_2ts.dxf
FCA-CMP1-250K/2T-S	CMP1-250K～2T	±11.77	±1.2	8	SUS304 or equivalent (Rod end is painted by stainless)	FCA-CMP1-250K-2T-S.STEP	fca_cmp1_250k_2ts.dxf
FCA-CMP1-5T-S	CMP1-5T	±29.42	±3	12	SUS304 or equivalent (Rod end is painted by stainless)	FCA-CMP1-5T-S.STEP	fca_cmp1_5ts.dxf
FCA-CMP1-10T-S	CMP1-10T	±58.84	±6	18	SUS304 or equivalent (Rod end is painted by stainless)	FCA-CMP1-10T-S.STEP	fca_cmp1_10ts.dxf
FCA-CMP1-20T-S	CMP1-20T	±117.7	±12	37	SUS304 or equivalent (Rod end is painted by stainless)	FCA-CMP1-20T-S.STEP	fca_cmp1_20t_s.dxf
