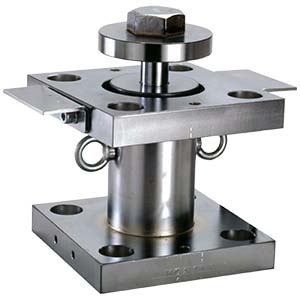

Check rod method mounting attachment CCA-CC002-*

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Equipped lift-off protection fitting as a standard
・There is allowable moving length in horizontal direction for the thermal expansion such as tanks.

scroll

Specification name	Specification contents
Applicable load cell	CC002-10T～30T、DC002-10T~40T
Allowable horizontal moving length	±7 mm(No directionarity)
Material	SS400 or equivalent (Electroless nickel plating)
Accessories	Bolt for stop floating, Washer, Eyebolt, Tacking bolt, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Applicable load cell	Allowable horizontal load [%R.C.]	Allowable lifting load [%R.C.]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
CC002-10T/-20T, DC002-10T/-20T	±60	±50	30	SS400 or equivalent (Electroless nickel plating)	CCA-CC002-10T~20T.STEP	fca_cc010_20t.dxf
CC002-25T/-30T, DC002-25T/-30T	±60	±50	42	SS400 or equivalent (Electroless nickel plating)	CCA-CC002-25T~30T.STEP	fca_cc010_30t_50t.dxf
