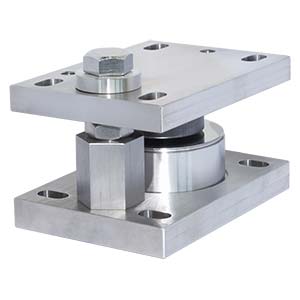

Check rod method mounting attachment CCA-CMP1-＊-S

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Equipped lift-off protection fitting as a standard
・All stainless steel structure.
・There is allowable moving length in horizontal direction for the thermal expansion such as tanks.

scroll

Specification name	Specification contents
Applicable load cell	CMP1-250K～20T
Allowable horizontal moving length	±5 mm (No directionarity)
Material	SUS304 or equivalent
Accessories	Bearing plate, Guide plate, Hexagon socket head cap screws, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Applicable load cell	Allowable horizontal load [kN]	Allowable horizontal load [tf]	Allowable lifting load [kN]	Allowable lifting load [tf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
CCA-CMP1-250K/2T-S	CMP1-250K～2T	±11.77	±1.2	±9.806	±1	7	SUS304 or equivalent	CCA-CMP1-250-2T-S.STEP	cca_cmp1.dxf
CCA-CMP1-5T-S	CMP1-5T	±29.42	±3	±24.52	±2.5	8.5	SUS304 or equivalent	CCA-CMP1-5T-S.STEP	cca_cmp1.dxf
CCA-CMP1-10T-S	CMP1-10T	±58.84	±6	±49.03	±5	17	SUS304 or equivalent	CCA-CMP1-10T-S.STEP	cca_cmp1.dxf
CCA-CMP1-20T-S	CMP1-20T	±117.7	±12	±98.07	±10	24	SUS304 or equivalent	CCA-CMP1-20T-S.STEP	cca_cmp1.dxf
