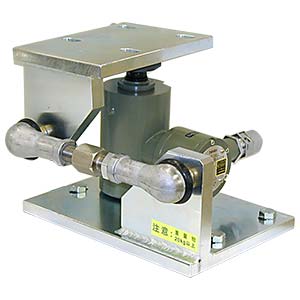

Flexibel lock method mounting attachment FCA-CCP1-* series

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Most suitable to the application for thetank and hopper with the stir machine.
・Explosion-proof load cells can be installed.

scroll

Specification name	Specification contents
Applicable load cell	CCP1(A)-200K～20T(-U,-Z)
Allowable horizontal moving length	±10 mm
Material	SS material (with plating process)
Accessories	Bearing plate, load cell pin, guide plate, instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Allowable horizontal load [kN]	Allowable horizontal load [tf]	Allowable horizontal load [kgf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
FCA-CCP1-50K/100K	±5.884		±600	7	SS type metal (with plating process)	FCA-CCP1-50K~100K.STEP
FCA-CCP1-200K/1T	±5.884		±600	7	SS type metal (with plating process)	FCA-CCP1-200K~1T.STEP	fca_ccp1_200k_1t.dxf
FCA-CCP1-2T/5T	±29.42	±3		16	SS type metal (with plating process)	FCA-CCP1-2T~5T.STEP	fca_ccp1_2t_5t.dxf
FCA-CCP1-10T	±58.84	±6		27	SS type metal (with plating process)	FCA-CCP1-10T.STEP	fca_ccp1_10t.dxf
FCA-CCP1-20T	±117.7	±12		80	SS type metal (with plating process)	FCA-CCP1-20T.STEP	fca_ccp1_20t.dxf

Instruction Manual
- FCA-CCP1-50K/100K, FCA-CCP1-200K/1T, FCA-CCP1-2T/5T No.EN293-1002
- FCA-CCP1-10T/20T No.EN293-1005
Specification sheet
- No.EN216073
- Welding　plate FCAW-*
- Dummy load cell FCAD-*
- Check rod for lift-off protection FCAR-*
