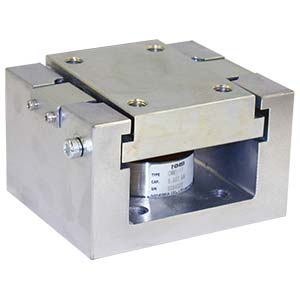

Steel ball method mounting attachment SCA-CMM1/CMP1 series

・The metal fittings used when the load cell is installed in the trestle such as hopper/tank.
・Equipped the slide stop mechanism, it absorb the error caused by the thermal expansion.
・generated in the mounted place, and the exact weight can be measured accuratly.

Features

・Space saving mounting attachment withslide stop mechanism.
・Excellent for severe side load conditionslike belt conveyors.

scroll

Specification name	Specification contents
Applicable load cell	CMM1/CMM1R/CMM1J-50K～2T, CMP1-250K～20T
Allowable horizontal moving length	±10 mm
Material	FCD material, SS material (with plating process)
Accessories	Dammy load cell, Guide plate, Instruction manual

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Applicable load cell	Allowable horizontal load [kN]	Allowable horizontal load [tf]	Allowable lifting load [kN]	Allowable lifting load [tf]	Weight(Approx. ) [kg]	Material	3D CAD files [STEP]	CAD files[DXF]
SCA-CMM1-50K/2T	CMM1/CMM1R/CMM1J-50K～2T	±29.42	±3	±19.61	±2	6	SS type metal (with plating process)	SCA-CMM1-50K-2T.STEP	sca_cmm1_50k_2t.dxf
SCA-CMP1-250K/5T	CMP1-250K～5T	±98.07	±10	±19.61	±2	15	SS type metal (with plating process)	SCA-CMP1-250K-5T-10T-S.STEP	sca_cmp1_250k_10t.dxf
SCA-CMP1-10T	CMP1-10T	±98.07	±10	±19.61	±2	16	SS type metal (with plating process)	SCA-CMP1-20T-S.STEP	sca_cmp1_20ts.dxf
SCA-CMP1-250K/5T-S	CMP1-250K～5T	±58.84	±6.00	±49.03	±5	17	SUS material	SCA-CMM1-50K-2T.STEP	sca_cmp1_250k_10ts.dxf
SCA-CMP1-10T-S	CMP1-10T	±58.84	±6.00	±49.03	±5	17	SUS material	SCA-CMP1-250K-5T-10T-S.STEP	sca_cmp1_250k_10ts.dxf
SCA-CMP1-20T-S	CMP1-20T	±117.7	±12.00	±49.03	±5	29	SUS material	SCA-CMP1-20T-S.STEP	sca_cmp1_20ts.dxf

Instruction Manual
- No.EN293-1008
- SCA-CMP1-250K/5T, SCA-CMP1-10T, No.293-1009
Specification sheet
- SCA-CMM1/CMP1-* No.EN216074
- Mounting plate SCAP-*
