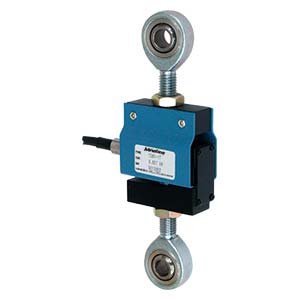

Load cell used for industrial scales.

Features

Suitable for high-accurate measurement.

scroll

Specification name	Specification contents
Rated capacity	196.1 N {20 kgf}～49.03 kN {5 tf}
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	3 mV/V±0.015 mV/V
Non-linearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.03 %R.O.
Excitation, recommended	10 V or less
Excitation, maximum	15 V
Zero balance	±0.03 mV/V
Input resistance	350 Ω±3.5 Ω
Output resistance	350 Ω±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	-10 ℃ ~ 70 ℃
Temp. range, safe	-20 ℃ ~ 80 ℃
Temp. effect on zero	0.05 %R.O./10 ℃
Temp. effect on output	0.1 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	T3B1-20K~200K : Alluminium alloy, T3B1-500K~5T : Alloy steel
Paint	Main body : Painted with epoxy resin (Black), Cover：Painted with polyurethane (Blue)
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [kN]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
T3B1-20K	196.1		0.33	600	0.18	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-20K.STEP	t3b1_20k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-50K	490.3		0.33	1100	0.16	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-50K.STEP	t3b1_20k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-100K	980.7		0.33	1600	0.14	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-100K.STEP	t3b1_100k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-200K		1.961	0.33	2100	0.12	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-200K.STEP	t3b1_200k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-500K		4.903	0.63	2600	0.14	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-500K.STEP	t3b1_200k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-1T		9.807	0.63	3000	0.12	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-1T.STEP	t3b1_200k.dxf	No.K900562-2_C	No.ENKT60247-1-G
T3B1-2T		19.61	1.70	2380	0.16	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-2T.STEP	t3b1_2t.dxf	No.KT51788-2_B	No.ENKT60247-1-G
T3B1-5T		49.03	4.00	2272	0.20	φ6.3, 4 -cores 3 m cable directly attached. Y-type crimp terminal lugs are attached at cable end.	T3B1-5T.STEP	t3b1_5t.dxf	No.KT51788-2_B	No.ENKT60247-1-G
