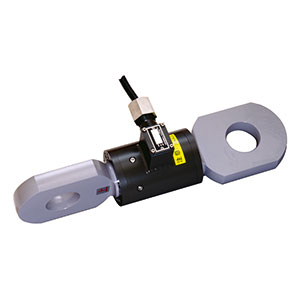

Crane use

Load cell used for industrial scales.

Features

Suitable for tension force measurement such as crane wire rope.

scroll

Specification name	Specification contents
Rated capacity	49.03 kN {5 tf}～490.3 kN{50 tf}
Safe overload	300 %R.C.
Ultimate overload	500 %R.C.
Rated output	0.5 mV/V±0.005 mV/V
Non-linearity	0.5 %R.O.
Hysteresis	0.2 %R.O.
Repeatability	0.3 %R.O.
Excitation, recommended	10 V or less
Excitation, maximum	12 V
Zero balance	±0.025 mV/V
Input resistance	600 Ω±6 Ω
Output resistance	600 Ω±6 Ω
Insulation resistance	2 000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－5 ℃～60 ℃
Temp. range, safe	－15 ℃～75℃
Temp. effect on zero	0.1 %R.O./10 ℃
Temp. effect on output	0.1 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alloy steel
Paint	Painted by epoxy resin (Only for cover), (Munsell 6GY3.5/2 half polished resemblance color)
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kN]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
CL-5T-B	49.03	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-5T-B.STEP	cl_5tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
CL-10T-B	98.07	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-10T-B.STEP	cl_10tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
CL-20T-B	196.1	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-20T-B.STEP	cl_20tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
CL-30T-B	294.2	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-30T-B.STEP	cl_30tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
CL-40T-B	392.3	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-40T-B.STEP	cl_40tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
CL-50T-B	490.3	φ14, 4-cores chielded 5 m cable directly attached. Cable end is separated with solder.	CL-50T-B.STEP	cl_50tb.dxf	No.KT51605-2_E	No.ENKT60249-1-H
