Compact light weight type

Custom

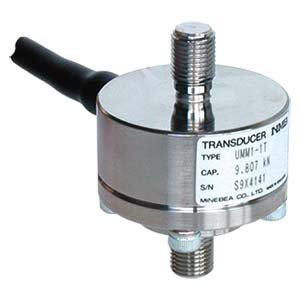

Load cell used for industrial scales.

Features

All stainless structure. UMM1R : Robot cable is attached.

scroll

Specification name	Specification contents
Rated capacity	490.3 N{50 kgf}～19.61 kN{2 tf}
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.01 mV/V
Non-linearity	0.15 %R.O.
Hysteresis	0.1 %R.O.
Repeatability	0.05 %R.O.
Excitation, recommended	12 V or less
Excitation, maximum	18 V
Zero balance	±0.06 mV/V
Input resistance	425 Ω±50 Ω
Output resistance	350 Ω±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～70 ℃
Temp. range, safe	－20 ℃～80 ℃
Temp. effect on zero	0.05 %R.O./10 ℃
Temp. effect on output	0.1 %LOAD/10 ℃
Class of protection	IP67 or equivalent
Material of element	Stainless steel
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [kN]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
UMM1R-50K	490.3		0.60	3600	0.15	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-50K~1T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1R-100K	980.7		0.60	5000	0.10	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-50K~1T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1R-200K		1.961	0.60	6000	0.07	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-50K~1T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1R-500K		4.903	0.60	7000	0.07	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-50K~1T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1R-1T		9.807	0.60	10000	0.05	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-50K~1T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1R-2T		19.61	0.60	10000	0.05	φ6.3　4-cores shielded robotcable　6m connected　Y-terminals	UMM1R-2T.STEP	umm1.dxf	No.ENKT53167-2_C	No.ENKT60244-1-H
UMM1J-50K	490.3		0.60	3600	0.15	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-50K~1T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
UMM1J-100K	980.7		0.60	5000	0.10	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-50K~1T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
UMM1J-200K		1.961	0.60	6000	0.07	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-50K~1T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
UMM1J-500K		4.903	0.60	7000	0.07	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-50K~1T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
UMM1J-1T		9.807	0.60	10000	0.05	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-50K~1T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
UMM1J-2T		19.61	0.60	10000	0.05	Option(Type RC019-6M)　φ6.3 4 core shield Robotcable 6m　Loaccell side R04-P6F　Another side Y-tarminal	UMM1J-2T.STEP	umm1.dxf	No.ENKT53253-2_C	No.ENKT60244-1-H
