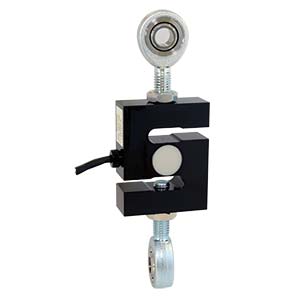

S-beam type

Load cell used for industrial scales.

Features

Suitable for the weighing systems, such as hopper, tank, etc.

scroll

Specification name	Specification contents
Rated capacity	980.7 N{100 kgf}～49.03kN{5 tf}
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	Tension load : -3 mV/V±0.003 mV/V, Compression load : 3 mV/V±0.015 mV/V
Non-linearity	0.025 %R.O.
Hysteresis	0.025 %R.O.
Repeatability	0.025 %R.O.
Creep	0.03 %R.O./20 min
Creep recovery	0.03 %R.O./20 min
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.03 mV/V
Input resistance	420 Ω±40 Ω
Output resistance	350 Ω±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～70 ℃
Temp. range, safe	－20 ℃～80 ℃
Temp. effect on zero	0.05 %R.O./10 ℃
Temp. effect on output	0.02 %LOAD/10 ℃
Class of protection	IP67 or equivalent (JIS C0028, normal operation after 10 cycles are over.)
Material of element	Alloy steel
Paint	Painted by epoxy resin (Black)
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [kN]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
U3S1-100K-NS	980.7		0.8	1500	0.15	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-100K-NS.STEP	u3s1_100k.dxf	No.KT53431-2-B	No.ENKT60247-1-G
U3S1-200K-NS		1.961	0.8	1700	0.14	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-200K-NS.STEP	u3s1_200k.dxf	No.KT53431-2-B	No.ENKT60247-1-G
U3S1-500K-NS		4.903	0.8	2000	0.14	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-500K-NS.STEP	u3s1_200k.dxf	No.KT53431-2-B	No.ENKT60247-1-G
U3S1-1T-NS		9.807	0.8	2500	0.13	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-1T-NS.STEP	u3s1_200k.dxf	No.KT53431-2-B	No.ENKT60247-1-G
U3S1-2T-NS		19.61	1.9	2300	0.15	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-2T-NS.STEP	u3s1_2t.dxf	No.KT53431-2-B	No.ENKT60247-1-G
U3S1-5T-NS		49.03	2.7	2000	0.18	φ4.7, 4-cores shielded 6 m cable directly attached, Y-type crimp terminal lugs are attached at cable end.	U3S1-5T-NS.STEP	u3s1_5t.dxf	No.KT53431-2-B	No.ENKT60247-1-G
