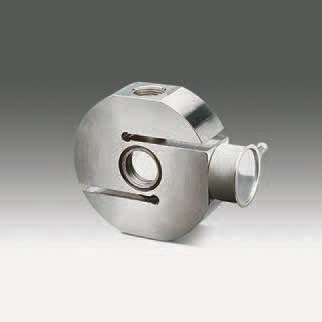

PR6241 Series Compression Type Ultra-High Accuracy 1/12500 Stainless Steel Load Cell
Minebea Intec
Load cell are of stainless steel specification as standard.Stable performance, high reliability and long life.
Features
・Compact,high-performance load cell.
Individual accuracy:Achieves 1/12500!
Ideal for production of high-accuracy tank scales and platform scales
・Stainless steel housing:SUS630 equivalent
・Completely waterproof IP68
・Ultra-high accuracy,C6:1/12500
-
-
scroll
Specification name
Specification contents
Specification contents2
Specification contents3
Specification contents4
Specification contents5
Specification contents6
OIML Accuracy class D1 D1E C3 C3E C6 C6E Accuracy class 0.008Emax～0.04Emax 0.008Emax～0.04Emax 0.008Emax～0.04Emax 0.008Emax～0.04Emax 0.008Emax～0.04Emax 0.008Emax～0.04Emax Safe load limit 150%Emax 150%Emax 150%Emax 150%Emax 150%Emax 150%Emax Destructive load 300%Emax 300%Emax 300%Emax 300%Emax 300%Emax 300%Emax Rated output 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V Rated output tolerance <0.25%Cn <0.25%Cn <0.07%Cn <0.07%Cn <0.07%Cn <0.07%Cn Zero balance <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn Reproducibility <0.01%Cn <0.01%Cn <0.005%Cn <0.005%Cn <0.005%Cn <0.005%Cn Creep <0.03%Cn <0.03%Cn <0.015%Cn <0.015%Cn <0.008%Cn <0.008%Cn Non-linearity <0.03%Cn <0.03%Cn <0.01%Cn <0.01%Cn <0.01%Cn <0.01%Cn Hysteresis <0.04%Cn <0.04%Cn <0.015%Cn <0.015%Cn <0.008%Cn <0.008%Cn Temperature effect on Zero ＜0.028%Cn/10K ＜0.028%Cn/10K ＜0.01%Cn/10K ＜0.01%Cn/10K ＜0.007%Cn/10K ＜0.007%Cn/10K Temperature effect on Span ＜0.03%Cn/10K ＜0.03%Cn/10K ＜0.01%Cn/10K ＜0.01%Cn/10K ＜0.005%Cn/10K ＜0.005%Cn/10K Input resistance 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω Rated output 609Ω～611Ω 609Ω～611Ω 609.5Ω～610.5Ω 609.5Ω～610.5Ω 609.5Ω～610.5Ω 609.5Ω～610.5Ω Insulation resistance >5000×10⁶Ω >5000×10⁶Ω >5000×10⁶Ω >5000×10⁶Ω >5000×10⁶Ω >5000×10⁶Ω Nominal supply voltage 4～24V 4～24V 4～24V 4～24V 4～24V 4～24V Maximum supply voltage 28V 25V 28V 25V 28V 25V Nominal ambient temperature range -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ Usable ambient temperature range -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ Storage ambient temperature range -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ Explosion-proof certification in Japan 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA) Conforms to overseas explosion protection standards 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga Class of protection IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h) Material of element Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Cable specification Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Polyethylene, 4-core shield cable Length 5m/Diameter 5㎜/cable 4×0.35㎡ Wiring specification Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash Accessories Earth wire 1pc Earth wire 1pc Earth wire 1pc Earth wire 1pc Earth wire 1pc Earth wire 1pc -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Rated Capacity
[tf]Weight
[kg]Gross Weight
[kg]Packaged Size(W)
[cm]Packaged Size(L)
[cm]Packaged Size(H)
[cm]PDF data (outline drawing)
Specification sheet
Instruction Manual
PR6241/12 D1 0.1 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/12 D1（Ｅ） 0.1 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 D1 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 D1（Ｅ） 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 C3 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 C3（Ｅ） 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 C6 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/22 C6（Ｅ） 0.2 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 D1 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 D1（Ｅ） 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 C3 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 C3（Ｅ） 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 C6 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/32 C6（Ｅ） 0.3 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 D1 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 D1（Ｅ） 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 C3 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 C3（Ｅ） 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 C6 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/52 C6（Ｅ） 0.5 0.7 1.1 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 D1 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 D1（Ｅ） 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 C3 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 C3（Ｅ） 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 C6 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/13 C6（Ｅ） 1.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 D1 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 D1（Ｅ） 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 C3 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 C3（Ｅ） 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 C6 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/23 C6（Ｅ） 2.0 0.8 1.2 22 22 14 KT54543-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 D1 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 D1（E) 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 C3 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 C3（E） 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 C6 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/33 C6（E） 3.0 1.6 2.0 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/53 D1 5.0 1.8 2.2 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/53 D1（E） 5.0 1.8 2.2 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/53 C3 5.0 1.8 2.2 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf PR6241/53 C3（E) 5.0 1.8 2.2 22 22 14 KT54525-2.pdf 213PR6241.pdf KT60857-1.pdf
