Fan motors rotate fans to cool the inside of industrial equipment and other motors by directing heat outside.
General Specifications
Motor Structure:3-phase 2pole
Motor Protection:Thermal Protect
Insulation Resistance:100MOhm or over with a DC500V Megger
Dielectric Withstand Voltage:AC1800V 1s
Allowable Ambient Temperature Range:
-20deg.C～+60deg.C
(Operating)
-40deg.C～+70deg.C
(Storage)
*no condensation permissible state plractice.
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Product No
Phase
Nominal Voltage
[V]Operating Voltage
lower limit
[V]Operating Voltage
upper limit
[V]Frequency
[Hz]Starting Voltage
[V]Current
[A]Input Power
[W]Speed
[min-1]Max. Air Flow
[m3/min]Fan Diameter
[mm]Fan Hight
[mm]Mass

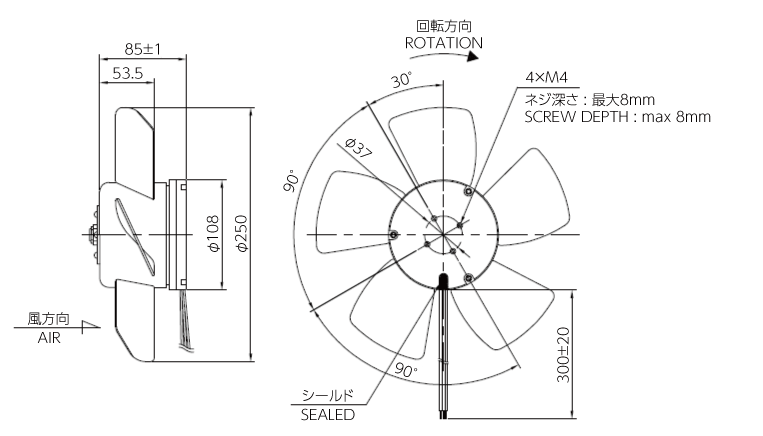

[g]PT9833-0220W-B30F-S 00 3 200 180 220 50 130 0.320 105.0 2750 21.00 250.0 85.0 2860 PT9833-0220W-B30F-S 00 3 200 180 220 60 130 0.450 160.0 3050 23.00 250.0 85.0 2860 Outline
Material
Impeller:Steel

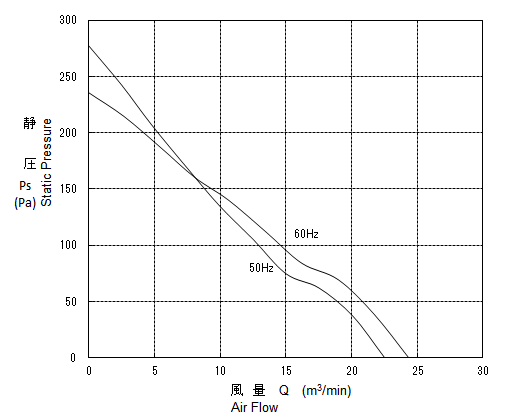

Bearing:Ball BearingsCharacteristic Curves
-
*Failure rate 10% 25deg.C 25,000 hours（65%RH）
