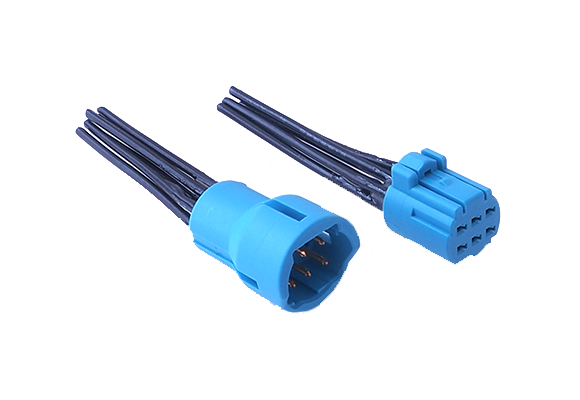

Small Inline Connector NST Series
NST Series
1. Slim shape with few protrusions improves layout flexibility.
2. Two key patterns are available to prevent incorrect insertion.
3. Walls on both sides of the lock prevent breakage.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|

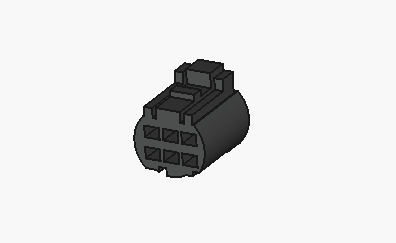

| NST001A0F*HG |  |
6 | 2 | Housing | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
-40 | 105 | AWG#30～22 | DL0109_HTKNST_BI.pdf | |

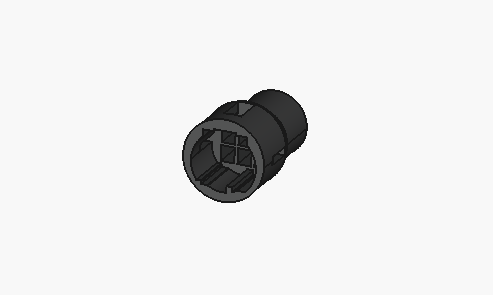

| NST002A0M*HG |  |
6 | 2 | Housing | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
-40 | 105 | AWG#30～22 | DL0110_HTKNST_BI.pdf | |

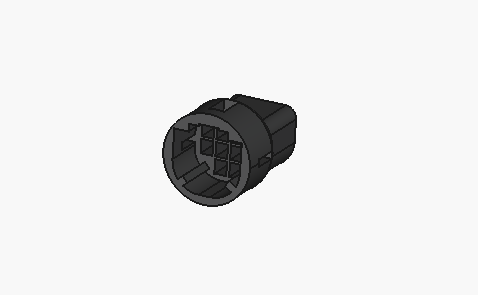

| NST003A0F*HG |  |
10 | 2 | Housing | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
-40 | 105 | AWG#30～22 | DL0111_HTKNST_BI.pdf | |

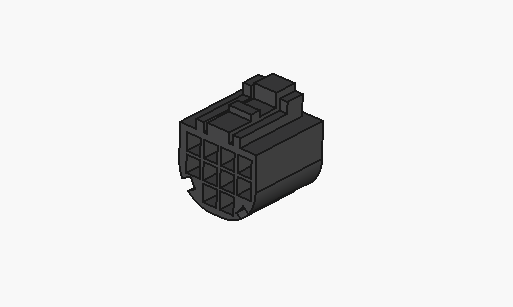

| NST004A0M*HG |  |
10 | 2 | Housing | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
-40 | 105 | AWG#30～22 | DL0112_HTKNST_BI.pdf | |

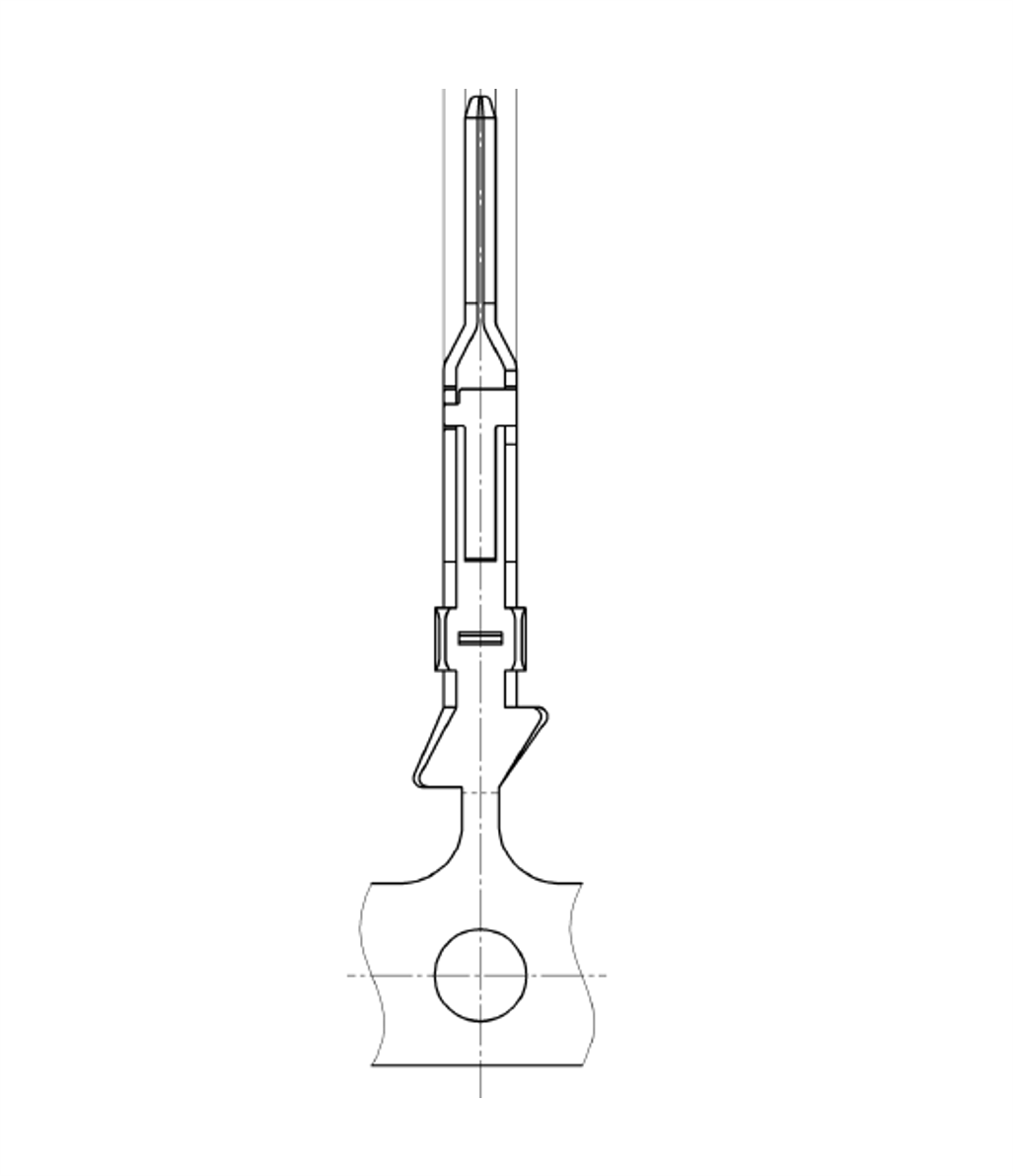

| NST001A1F*CT |  |
Crimping | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 |
500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#26～22 | DL0113_HTKNST_BI.pdf | ||

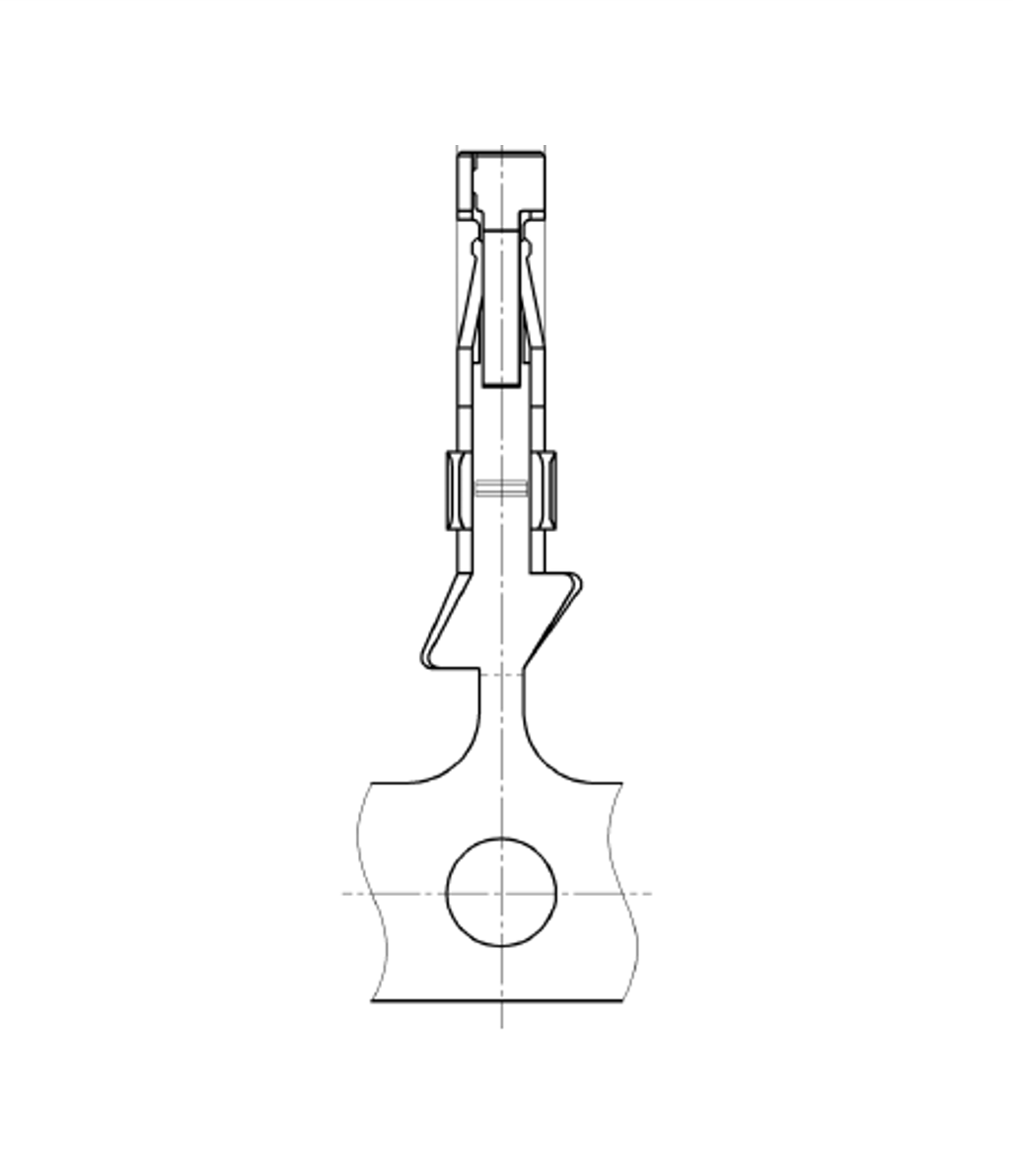

| NST001A2F*CT |  |
Crimping | AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#30~26 | DL0114_HTKNST_BI.pdf | ||

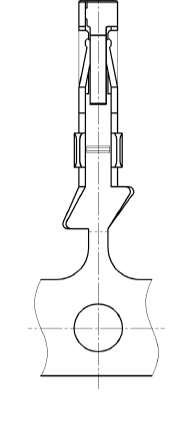

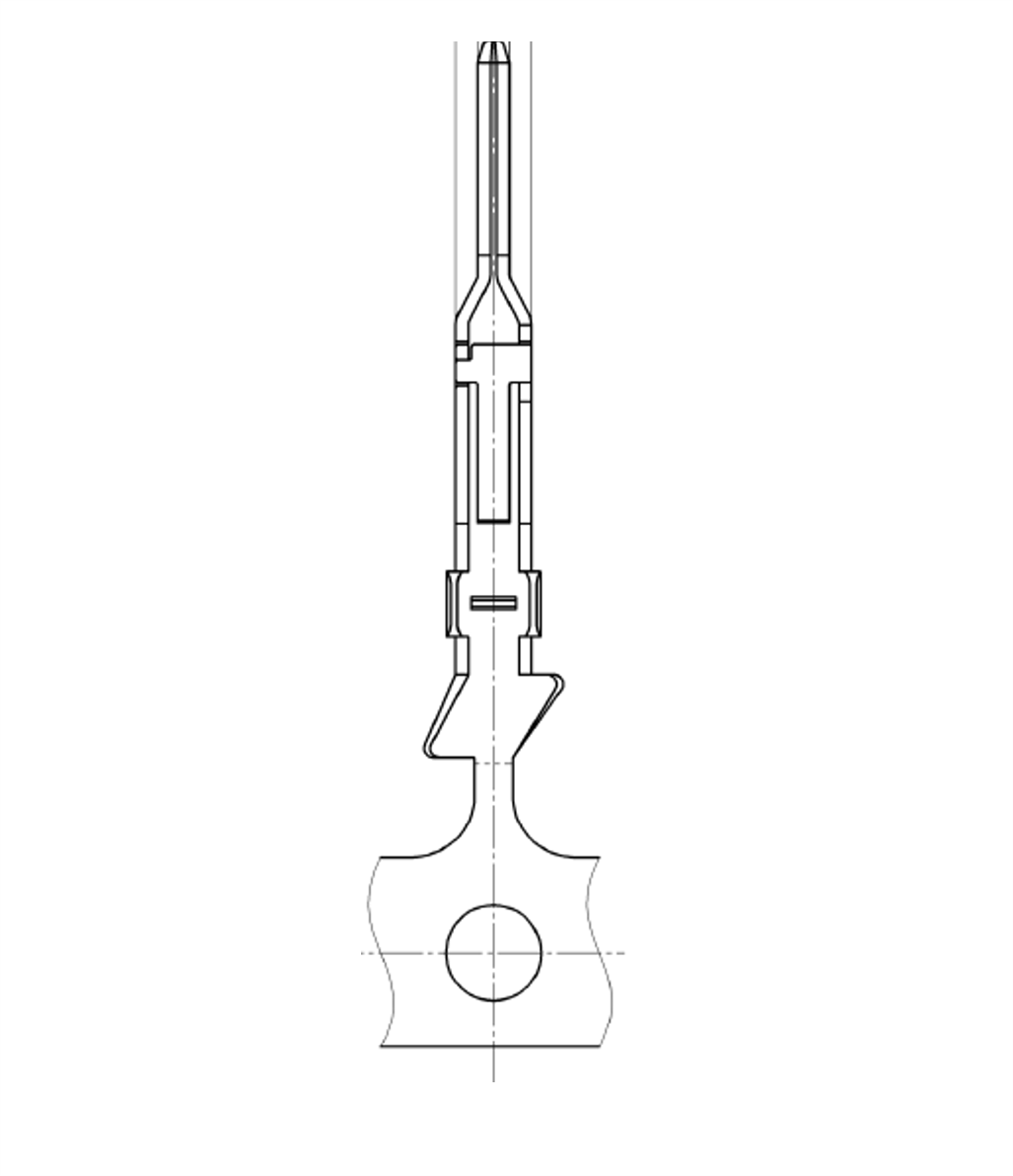

| NST002A1M*CT |  |
Crimping | AWG#22:3.00 AWG#24:2.50 AWG#26:2.00 |
500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#26～22 | DL0115_HTKNST_BI.pdf | ||
| NST002A2M*CT |  |
Crimping | AWG#26:2.00 AWG#28:1.00 AWG#30:0.50 |
500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#30~26 | DL0116_HTKNST_BI.pdf |
