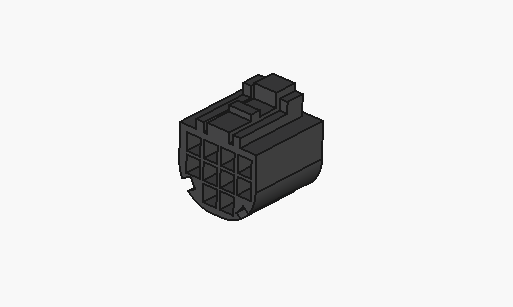

NST003A0F*HG

NST Series
1. Slim shape with few protrusions improves layout flexibility.
2. Two key patterns are available to prevent incorrect insertion.
3. Walls on both sides of the lock prevent breakage.

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. NST003A0F*HG
    Pin Count 10
    Pich
    [mm]    		 2
    Mounting Method/
    Wiring method    		 Housing
    Current Rating
    [A/Pin]    		 AWG#22:3.00
    AWG#24:2.50
    AWG#26:2.00
    AWG#28:1.00
    AWG#30:0.50
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105
    Applicable Cable Diameter AWG#30～22

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
