2.50mm Pitch Board-In Connector BL02

BL02 Series
1.Low height and miniaturized right angle connector
2.Terminal retention by Housing lance enable sure lock
【Model Description】
()・・・ Number of pins
*/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Drawing |
---|---|---|---|---|---|---|---|---|---|---|

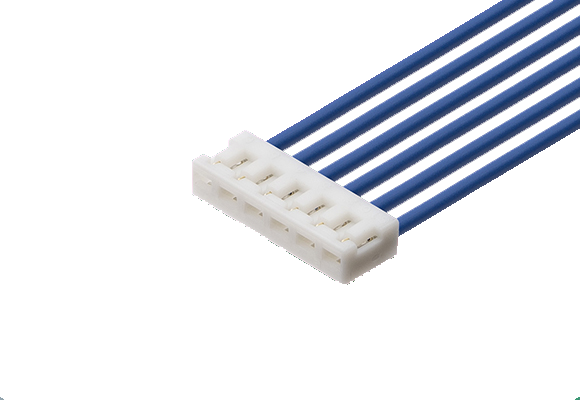

BL02H5-()N0 | ![]() |
5,6 | 2.5 | 3 | 800V A.C.(r.m.s) for a minute | -25 | 90 | DL0135_MCIBL02_BI_CL.pdf | ||

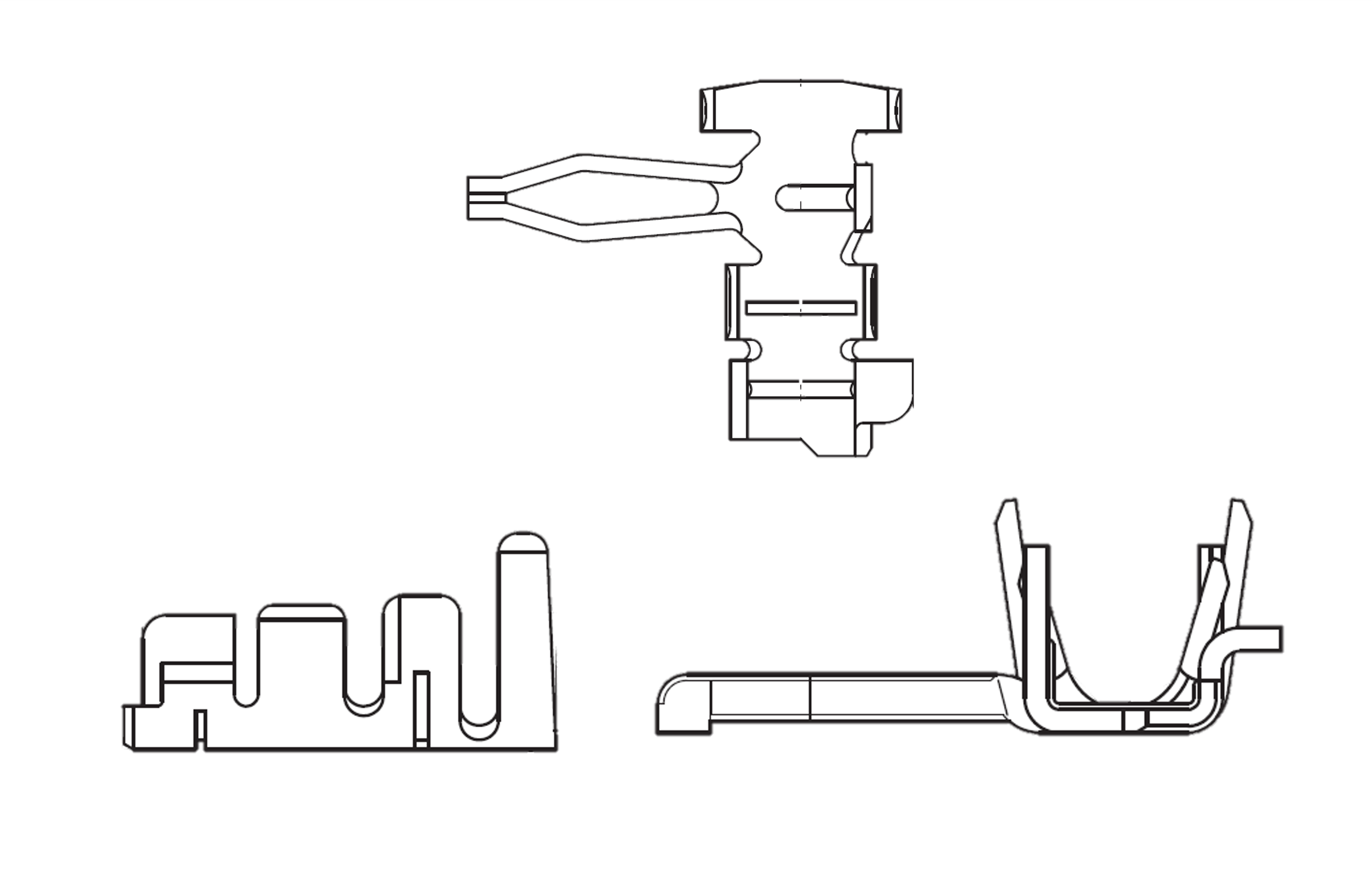

BL02C5-001S | ![]() |
-25 | 90 | Φ1.66 | AWG#26~22 | DL0135_MCIBL02_BI_CL.pdf |
