2.00mm Pitch Board-In Connector PD09

PD09 Series
Miniaturized direct mounting PCB Connector

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing

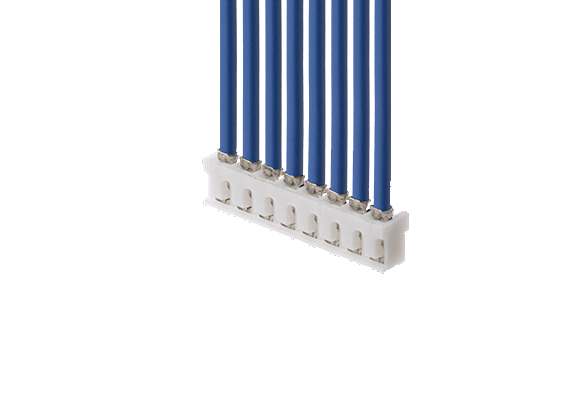

PD09A()M 2,3,4,5,6,7,8 2 1 800V A.C.(r.m.s) for a minute -40 85 DL0130_MCIPD09_BI_CL.pdf

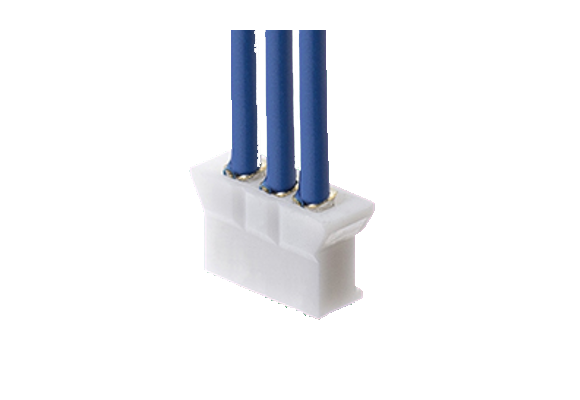

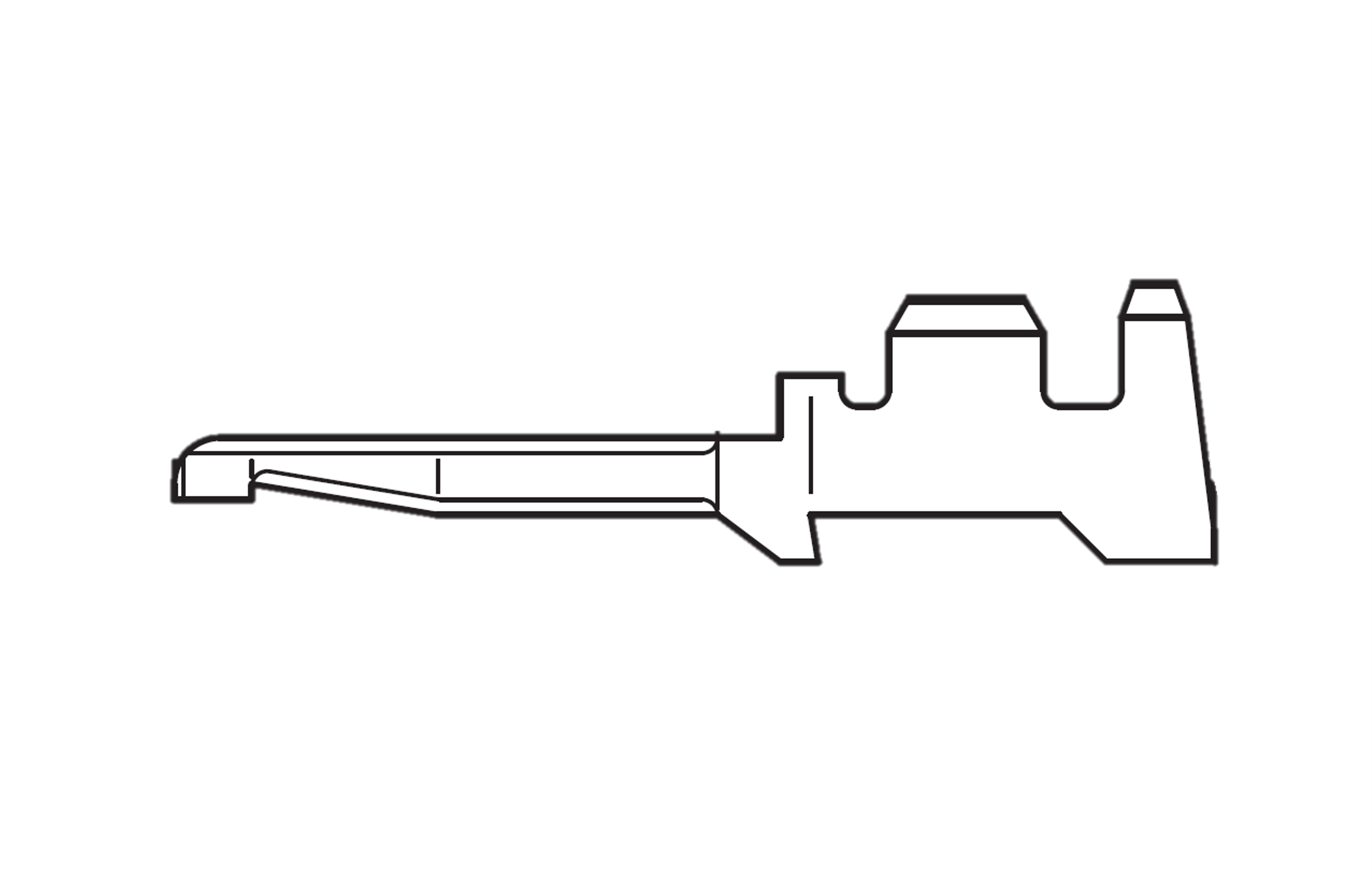

507101-2M -40 85 Φ1.25 AWG#30~26 DL0130_MCIPD09_BI_CL.pdf
