PD09 Series Miniaturized direct mounting PCB Connector
【Model Description】 ()・・・ Number of pins */#・・・ Product specification
Specifications
Parts No.
507101-2M
Operating Temparature
Min [deg.C]
-40
Operating Temparature
Max [deg.C]
85
Cable Jacket Diameter [Φ]
Φ1.25
Applicable Cable Diameter
AWG#30~26

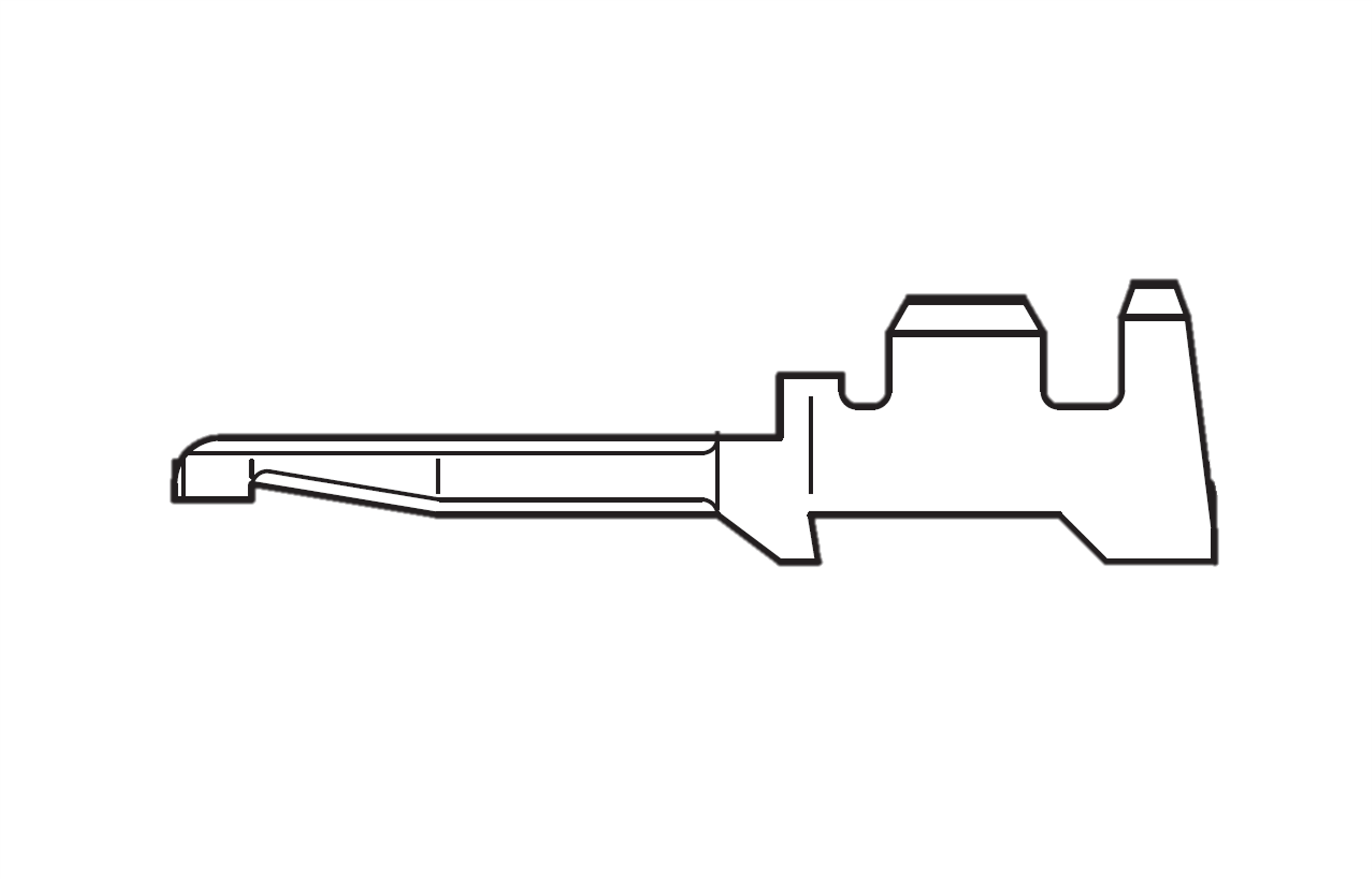

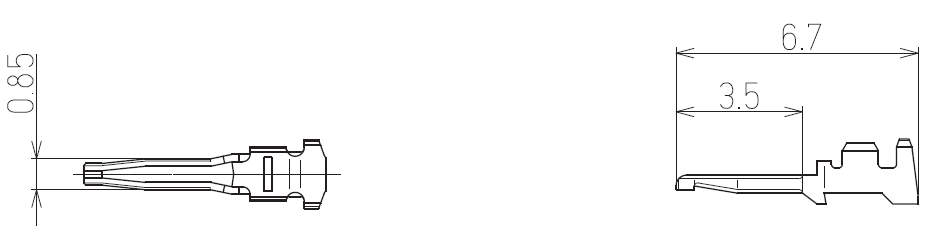

Overall View
NOTE
The product information in this data is for reference only. This is subject to change without notice. Contact our sales staff for further information before considering or ordering any of our products. Please request the Engineering Drawing for the most current and accurate design information.
