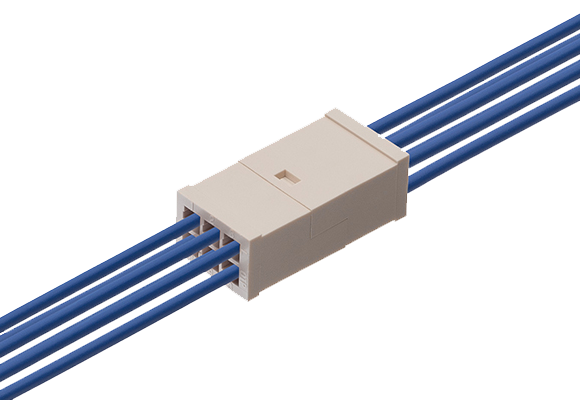

3.40mm Pitch Inline Connector MF011 Series
MF011 Series
1.Identical Male and Female, allowing for streamlined operations and management
2.Friction lock structure allows one-touch locking
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
3.40mm Pitch Inline Connector MF011 Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|

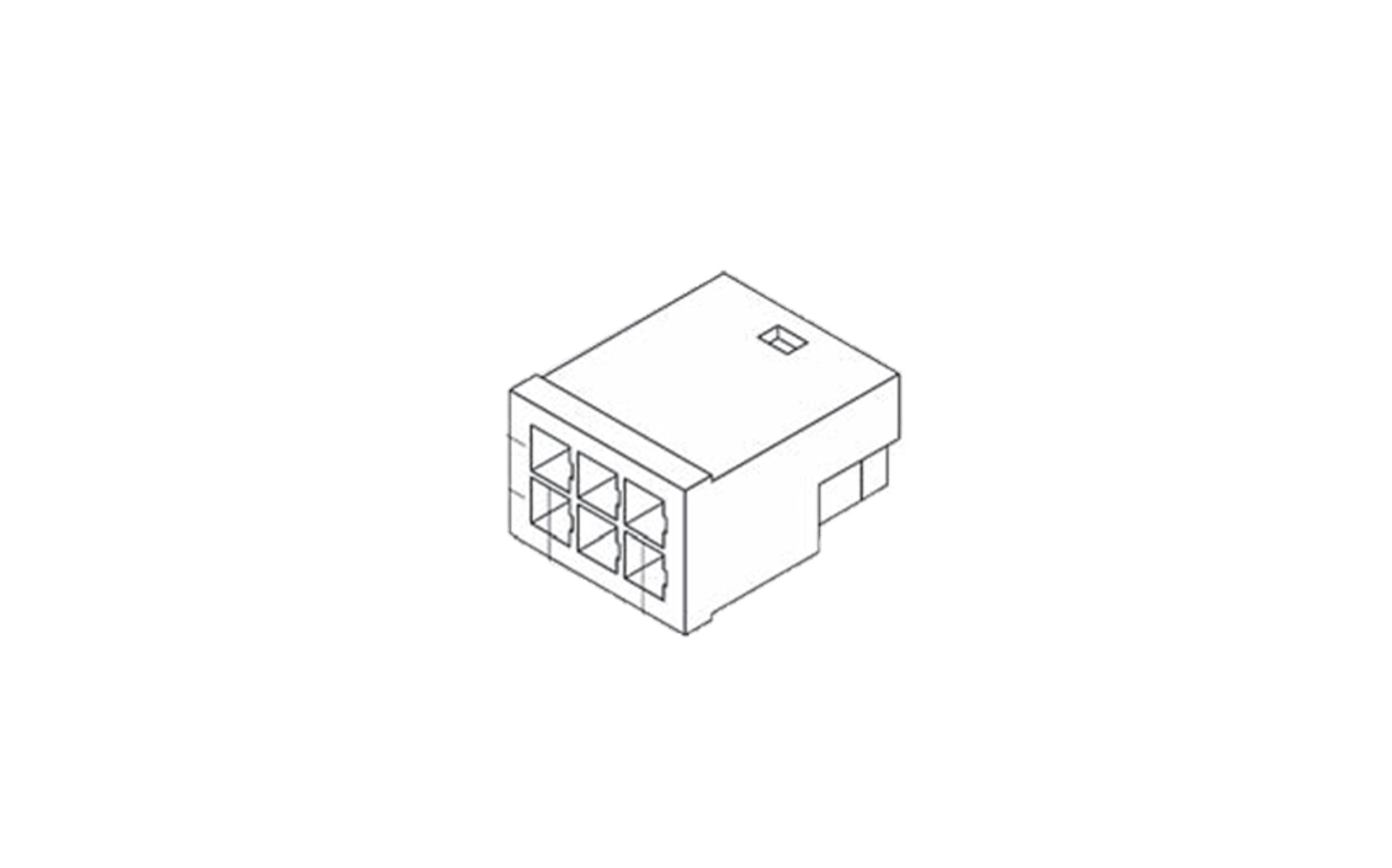

| MF-011-0() |  |
2,6 | 3.40×3.50 | 3 | 1,500V A.C.(r.m.s) for a minute | -40 | 105 | DL0122_MCIMF011_BI_CL.pdf | ||

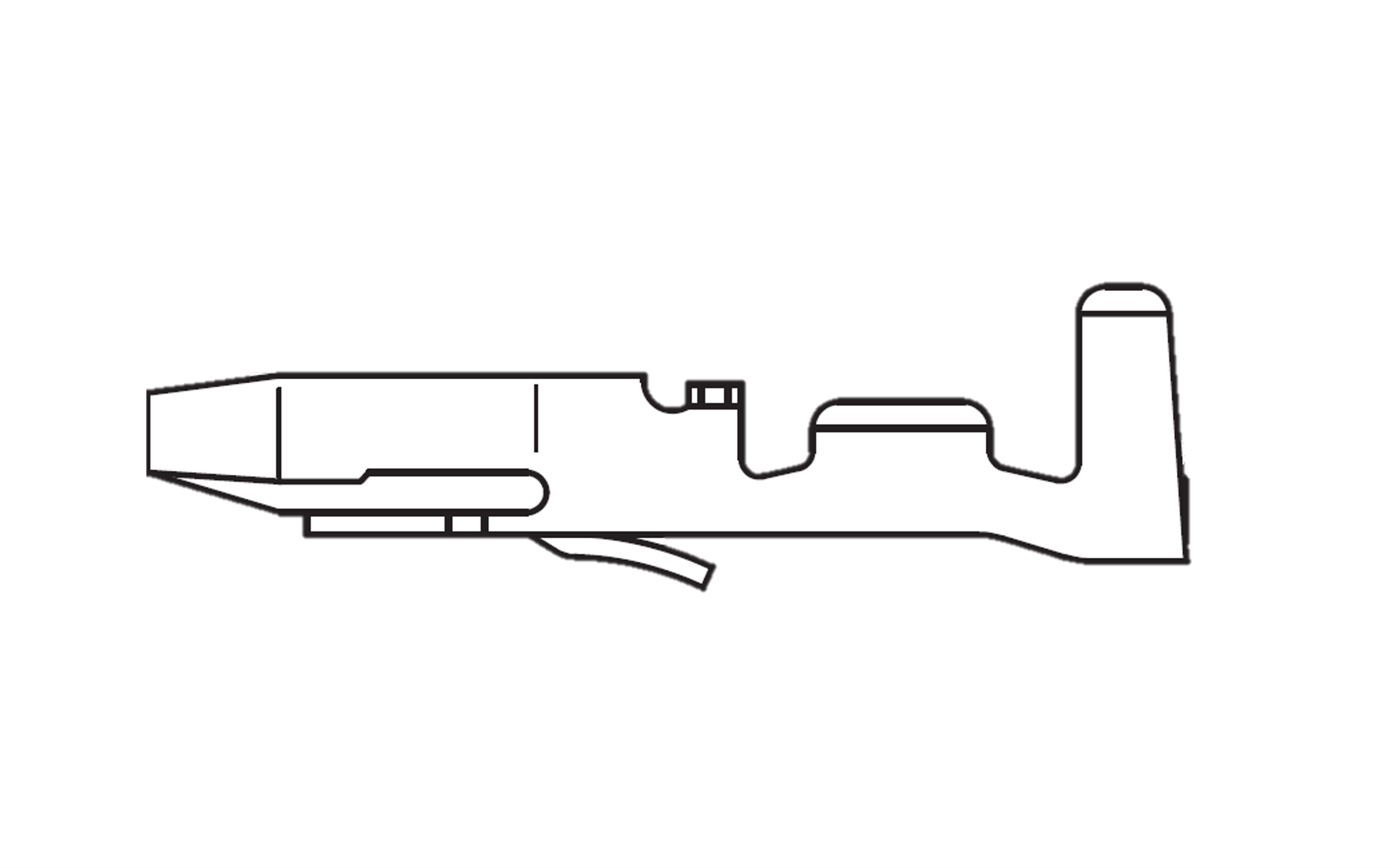

| 904410-2MN |  |
-40 | 105 | Φ2.70 | AWG#26~22 | DL0122_MCIMF011_BI_CL.pdf |
