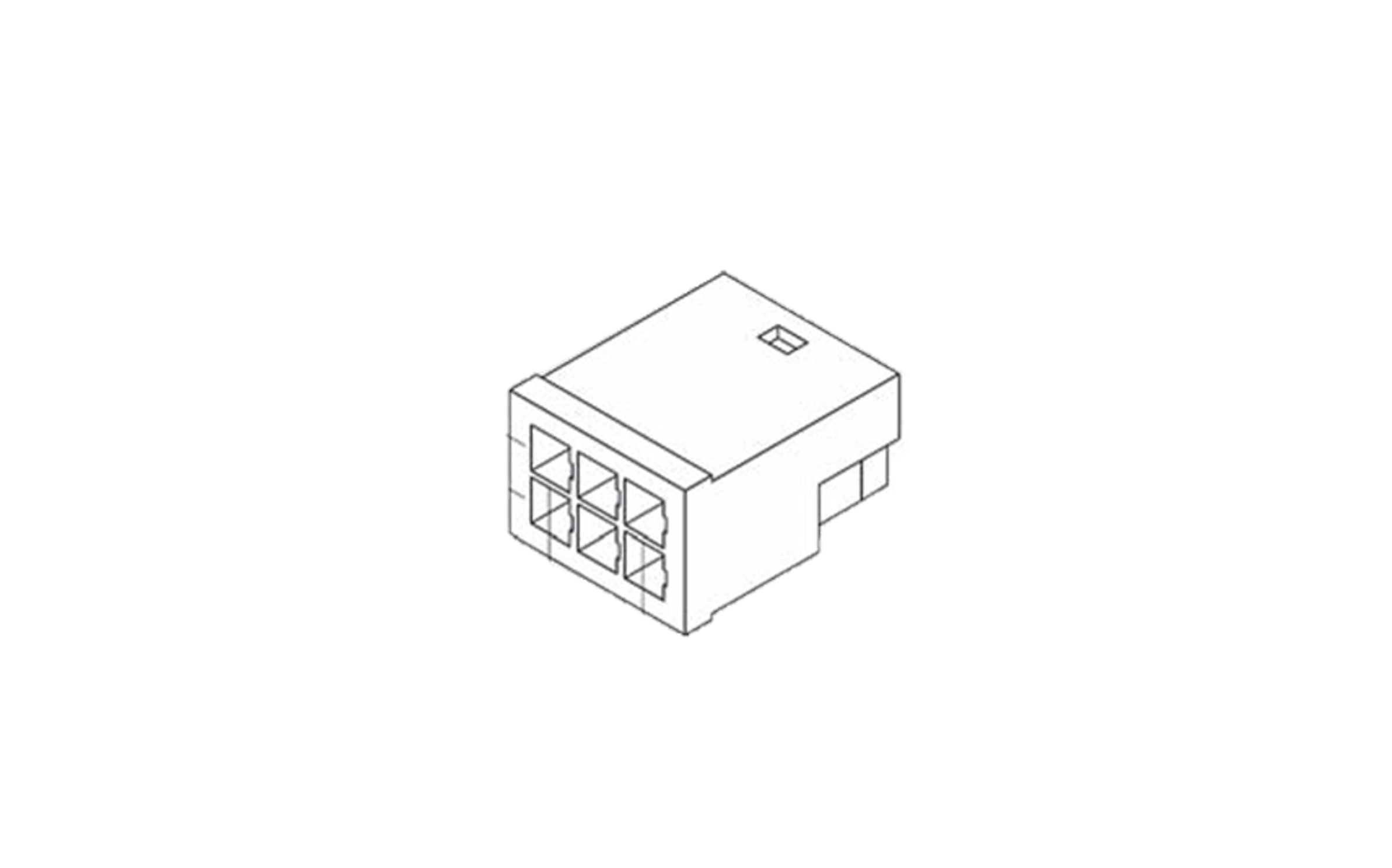

MF011 Series
1.Identical Male and Female, allowing for streamlined operations and management
2.Friction lock structure allows one-touch locking
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. MF-011-0() Pin Count 2,6 Pich
[mm]3.40×3.50 Current Rating
[A/Pin]3 Dielectric Withstanding
Voltage1,500V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
