2.50mm Pitch Board-In Connector PD054

PD054 Series
1.Terminal position is easy to check by translucent Housing
2.Two type of resin materials are available in Housing
PD054:PA66(UL94 V-2)、PD055:PBT(UL94HB GF)
【Model Description】
()・・・ Number of pins
*/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Drawing |
---|---|---|---|---|---|---|---|---|---|---|

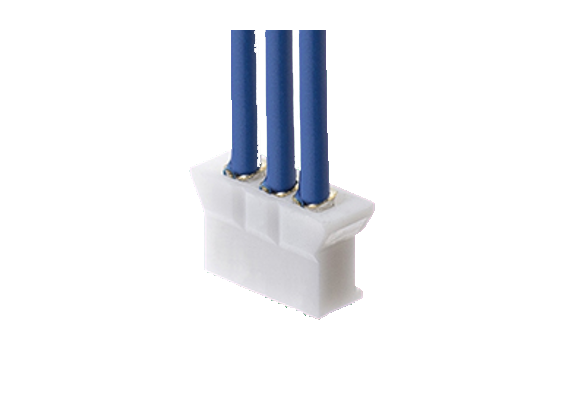

PD-054-()M | ![]() |
2,3,4,5,6,7,8,9,10,11,12,13,14,15 | 2.5 | 3 | 500V A.C.(r.m.s) for a minute | -40 | 100 | DL0131_MCIPD054_BI_CL.pdf | ||

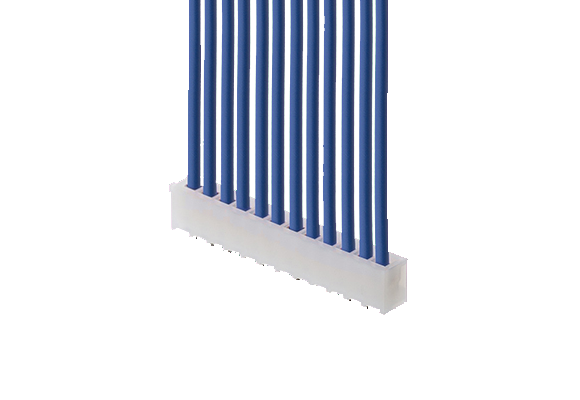

PD-055-()M-BK | ![]() |
2,3,4,5,6,7,8,9 | 2.5 | 3 | 500V A.C.(r.m.s) for a minute | -40 | 100 | DL0131_MCIPD054_BI_CL.pdf | ||

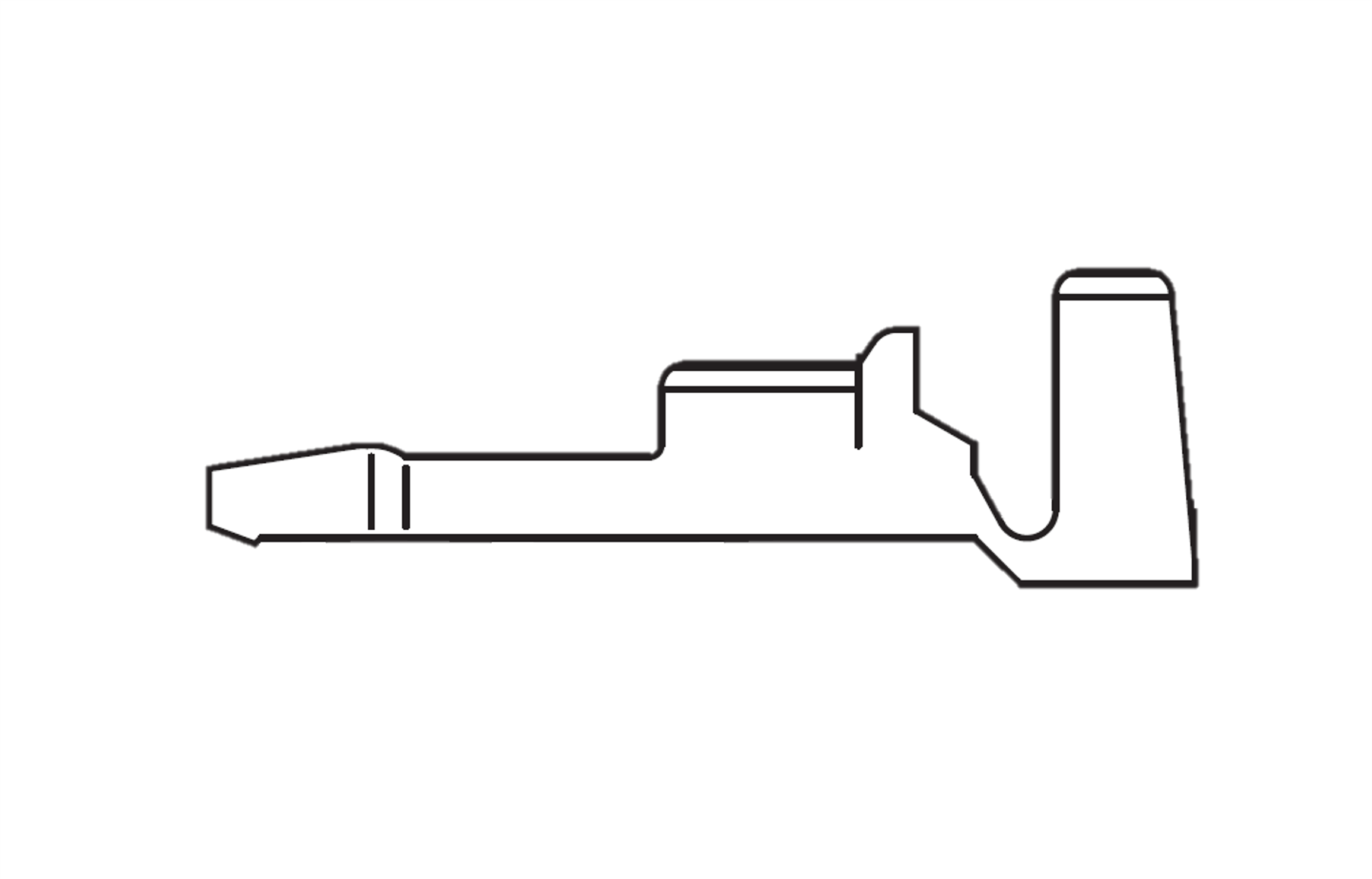

510353-2MA | ![]() |
-40 | 100 | Φ1.70 | AWG#28~22 | DL0131_MCIPD054_BI_CL.pdf |
