3.80mm Pitch Inline Connector CM01 Series
CM01 Series
1.Housing lance ensures stable terminal insertion with low insertion force
2.It will prevent from influence of external force due to tangle of wire routing by Inner lock applied
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|

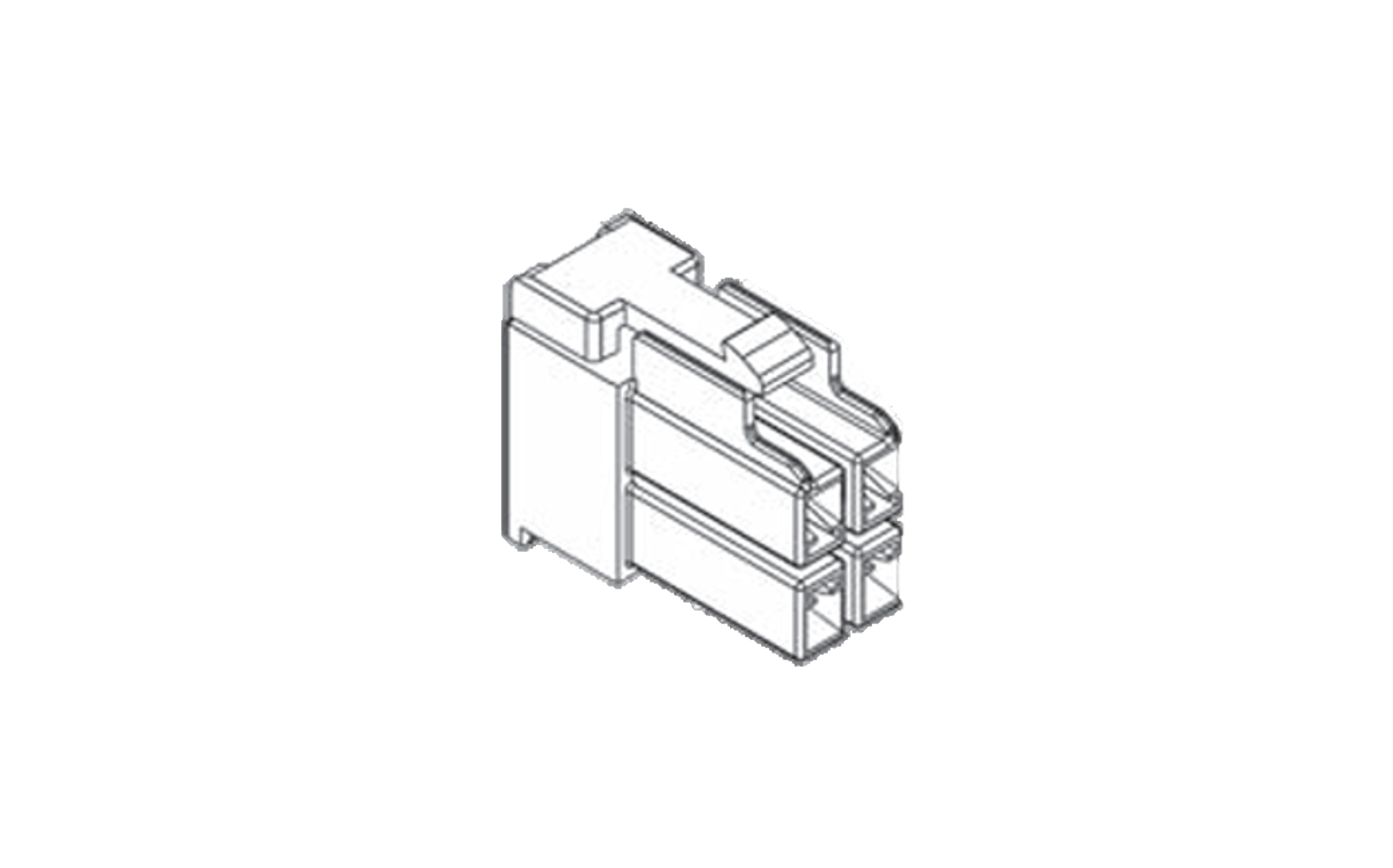

| CM01H6-04N0 |  |
4 | 3.8 | AWG#18:8.00 AWG#20:7.00 AWG#22:5.00 AWG#24:4.00 AWG#26:3.00 |
1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0123_MCICM01_BI_CL.pdf | ||

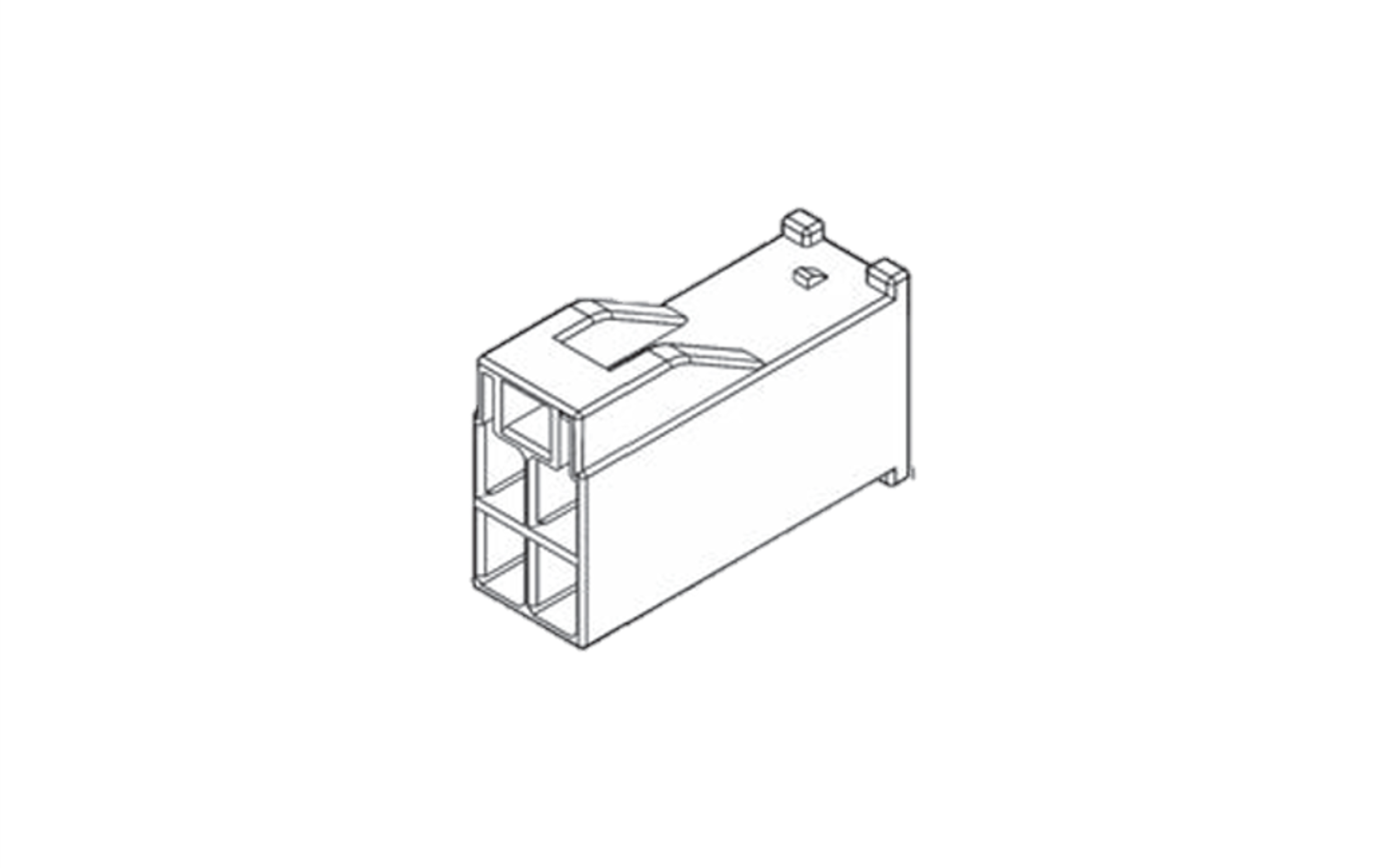

| CM01H5-04N0 |  |
4 | 3.8 | AWG#18:8.00 AWG#20:7.00 AWG#22:5.00 AWG#24:4.00 AWG#26:3.00 |
1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0123_MCICM01_BI_CL.pdf | ||

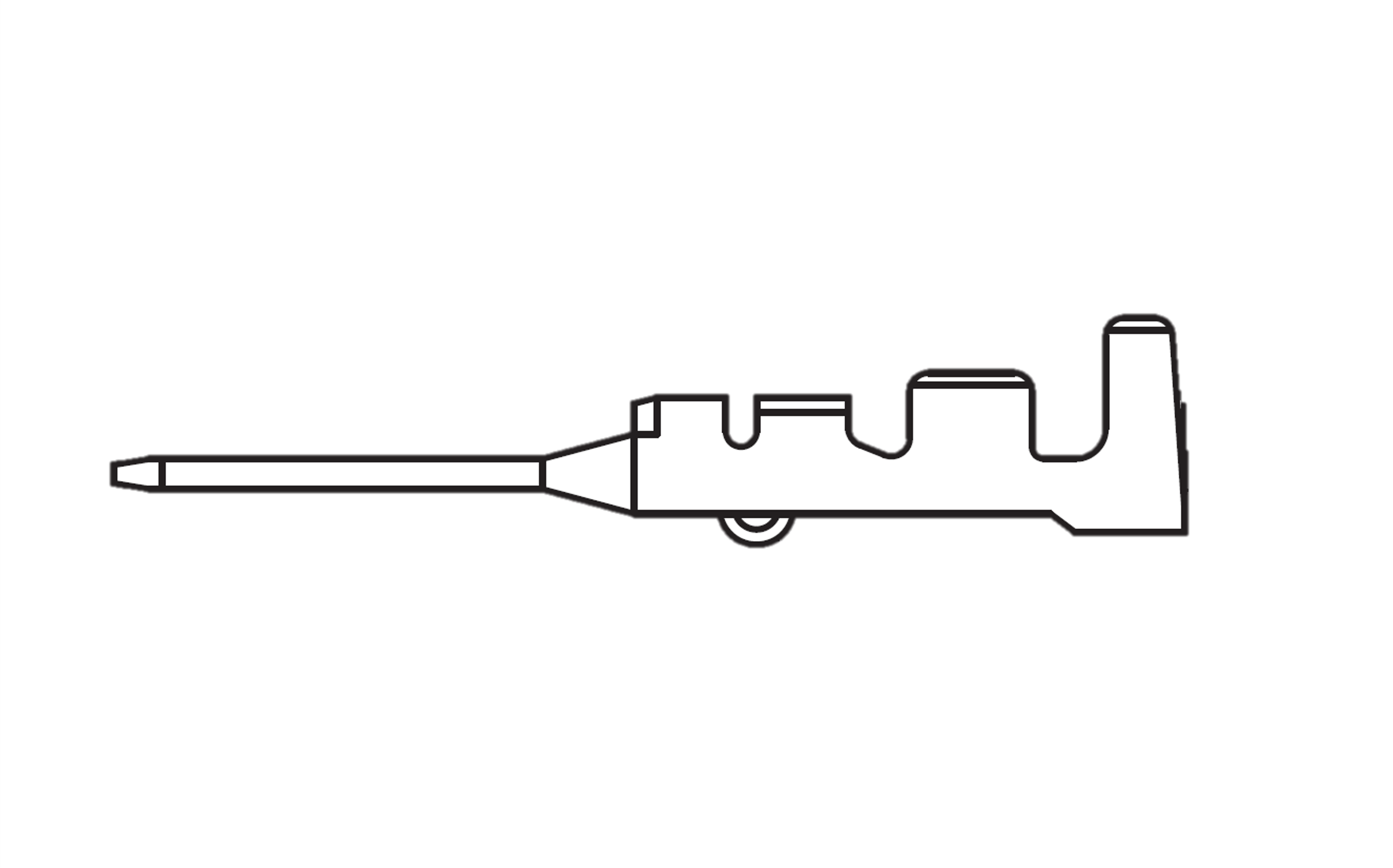

| CM01C5-0＊0A |  |
-40 | 105 | ＊=1:Φ1.70 ＊=2:Φ2.10 |
＊=1:AWG#26~22 ＊=2:AWG#22~18 |
DL0123_MCICM01_BI_CL.pdf | ||||

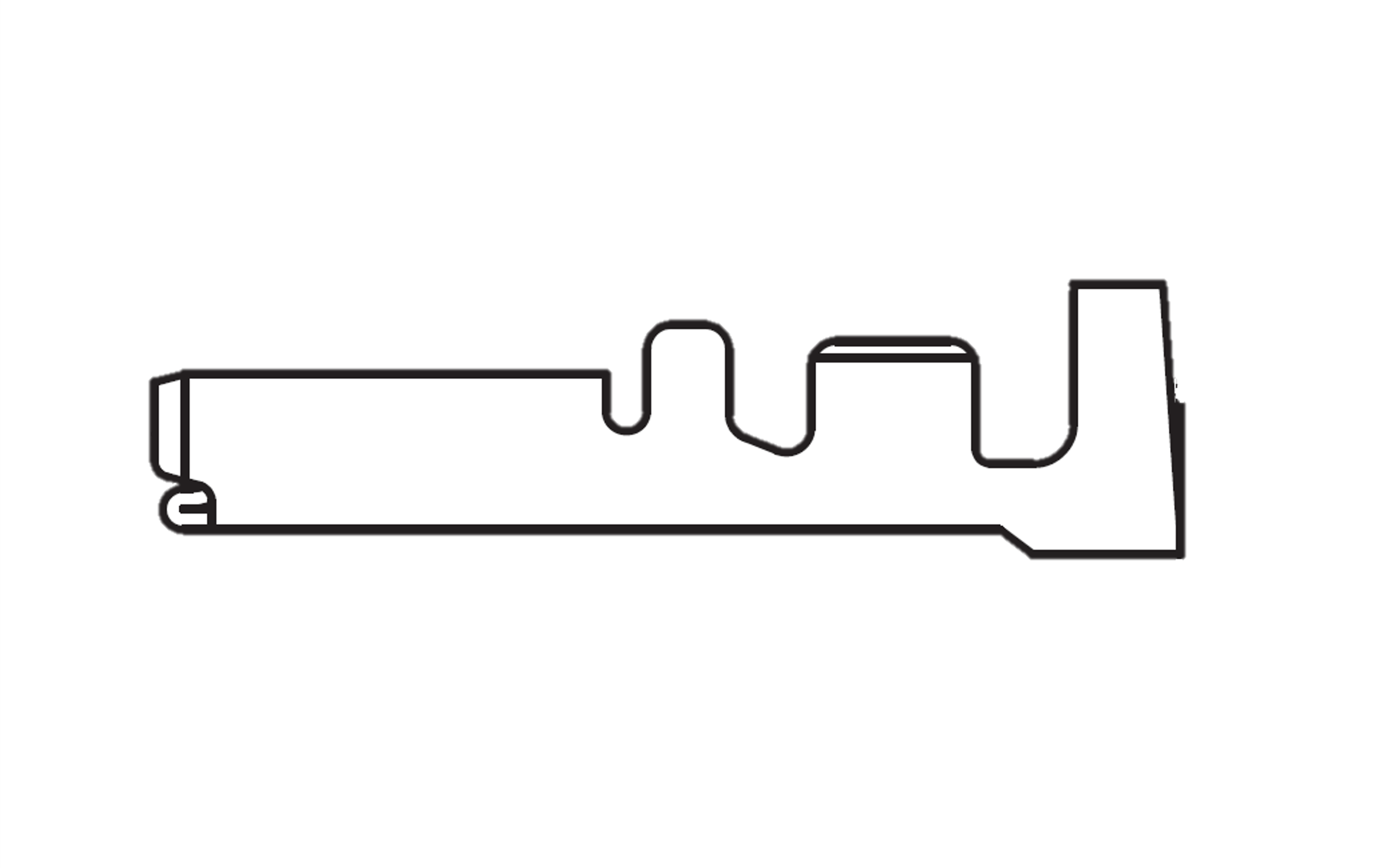

| CM01C6-0＊0A |  |
-40 | 105 | ＊=1:Φ1.70 MAX ＊=2:Φ2.10 MAX |
＊=1:AWG#26~22 ＊=2:AWG#22~18 |
DL0123_MCICM01_BI_CL.pdf |
