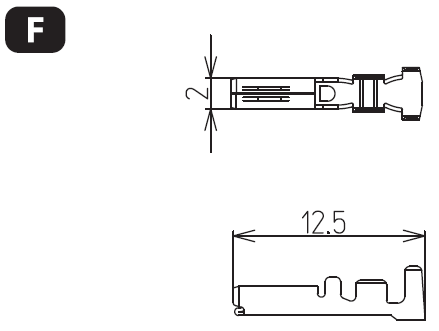

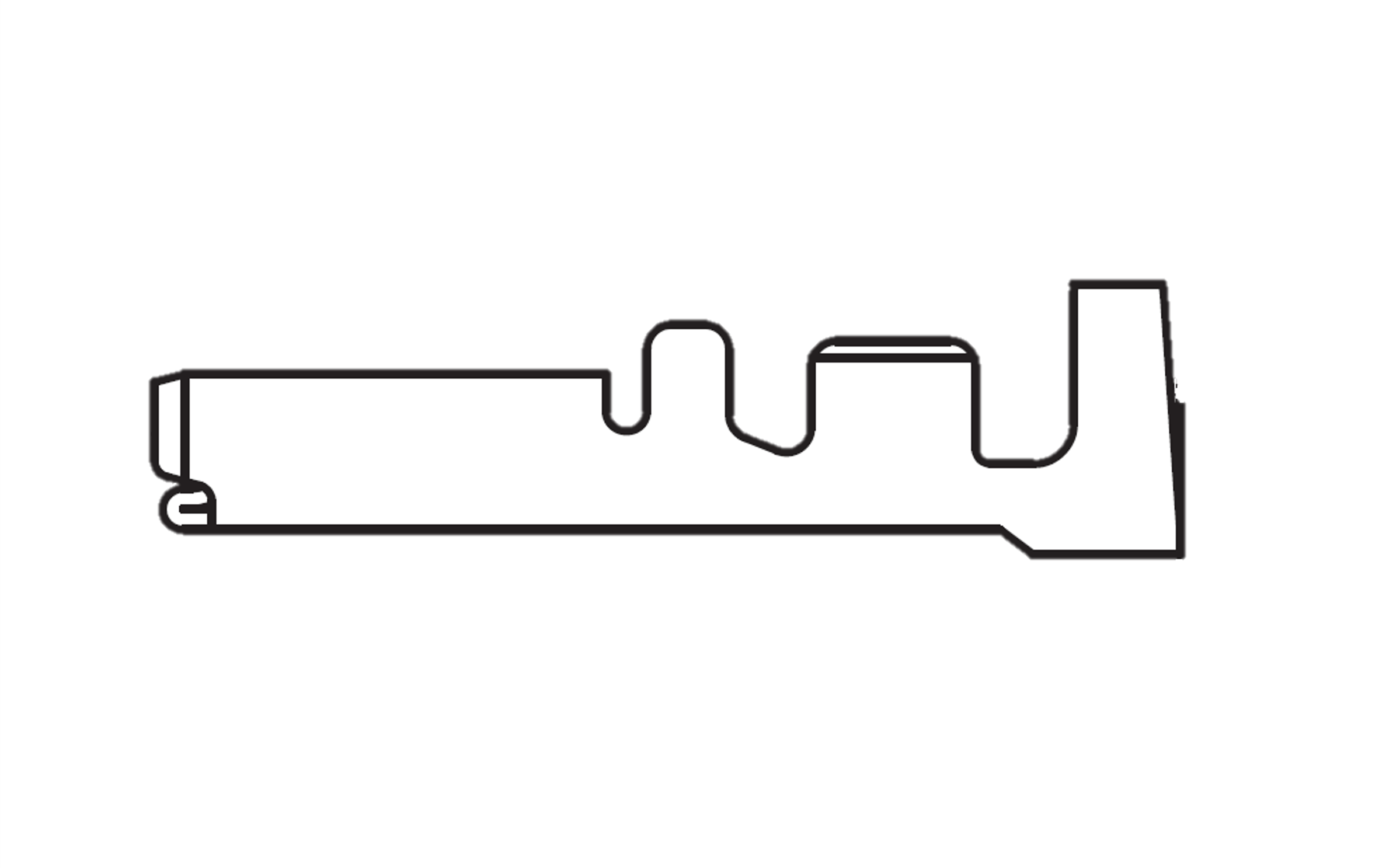

CM01C6-0＊0A

CM01 Series
1.Housing lance ensures stable terminal insertion with low insertion force
2.It will prevent from influence of external force due to tangle of wire routing by Inner lock applied

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. CM01C6-0＊0A
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105
    Cable Jacket Diameter
    [Φ]    		 ＊=1:Φ1.70 MAX
    ＊=2:Φ2.10 MAX
    Applicable Cable Diameter ＊=1:AWG#26~22
    ＊=2:AWG#22~18

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
