CM01 Series
1.Housing lance ensures stable terminal insertion with low insertion force
2.It will prevent from influence of external force due to tangle of wire routing by Inner lock applied
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

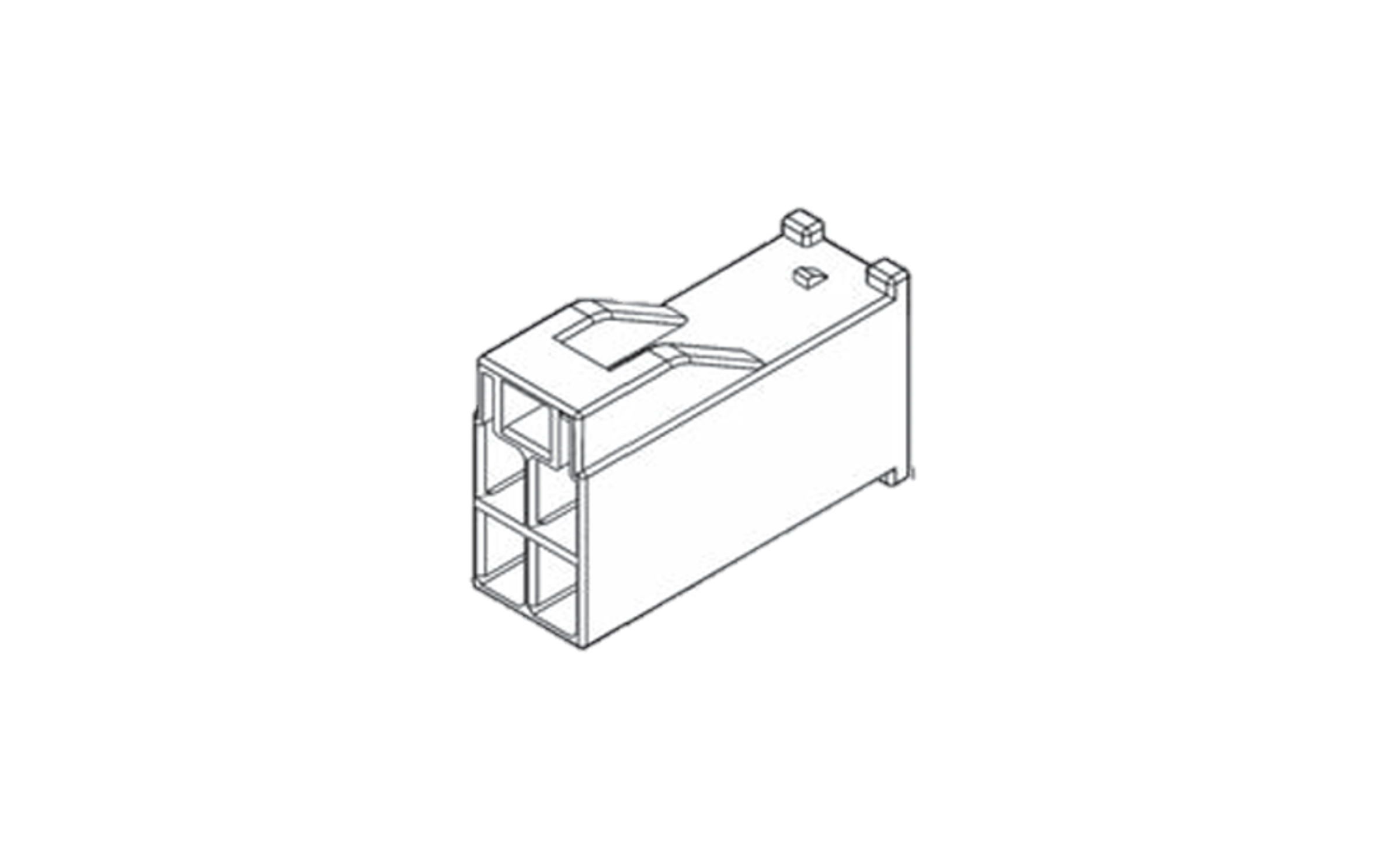

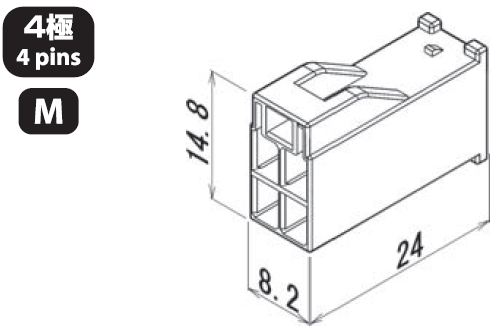

Parts No. CM01H5-04N0 Pin Count 4 Pich
[mm]3.8 Current Rating
[A/Pin]AWG#18:8.00
AWG#20:7.00
AWG#22:5.00
AWG#24:4.00
AWG#26:3.00Dielectric Withstanding
Voltage1,700V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
