1. Connectors
  2. Memory Card Connectors

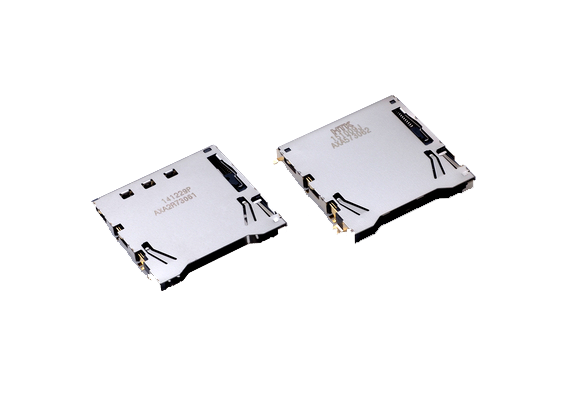

SD Memory Card Sockets

AXA Series
1.Less noise and improved heat dissipation (metal shell on both side)
2.Improved durability with joint strength
3.Improved mounting stability (by metal base part)

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Pin Count

Mounting Method/
Wiring method

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Catalog

AXA2R73*61P-M Compliance with standards UHS-I/DIP 0.5 500V A.C.(r.m.s.) for a minute -25 90 DL0120_HTKAXA_EN.pdf
AXA2S63062P-M Compliance with standards UHS-I/SMT 0.5 500V A.C.(r.m.s.) for a minute -25 90 DL0120_HTKAXA_EN.pdf
AXA2S73062P-M Compliance with standards UHS-I/SMT 0.5 500V A.C.(r.m.s.) for a minute -25 90 DL0120_HTKAXA_EN.pdf
AXA56306*P Compliance with standards UHS-II/SMT 0.5 500V A.C.(r.m.s.) for a minute -25 90 DL0120_HTKAXA_EN.pdf
AXA5730*1P Compliance with standards UHS-II/SMT 0.5 500V A.C.(r.m.s.) for a minute -25 90 DL0120_HTKAXA_EN.pdf
