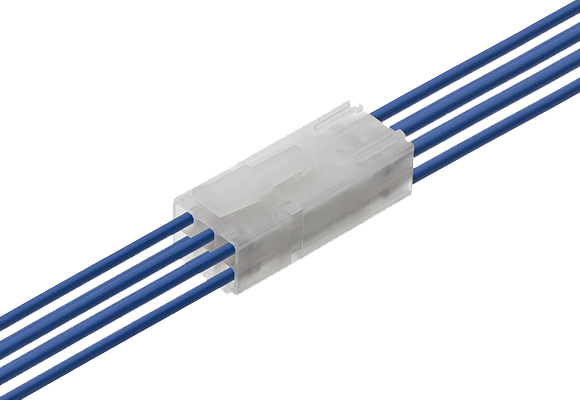

Omnidirectional terminal 4.50mm Pitch Inline Connector

CL014 Series
1.Terminal plug and receptacle can be inserted in either male or female Housing
2.Improved workability as it can be inserted any direction of 360° XY axis
3.One Applicator is able to crimp both Male and Female terminals

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

Parts List

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Pin Count	Pich [mm]	Current Rating [A/Pin]	Dielectric Withstanding Voltage	Operating Temparature Min [deg.C]	Operating Temparature Max [deg.C]	Cable Jacket Diameter [Φ]	Applicable Cable Diameter	Catalog

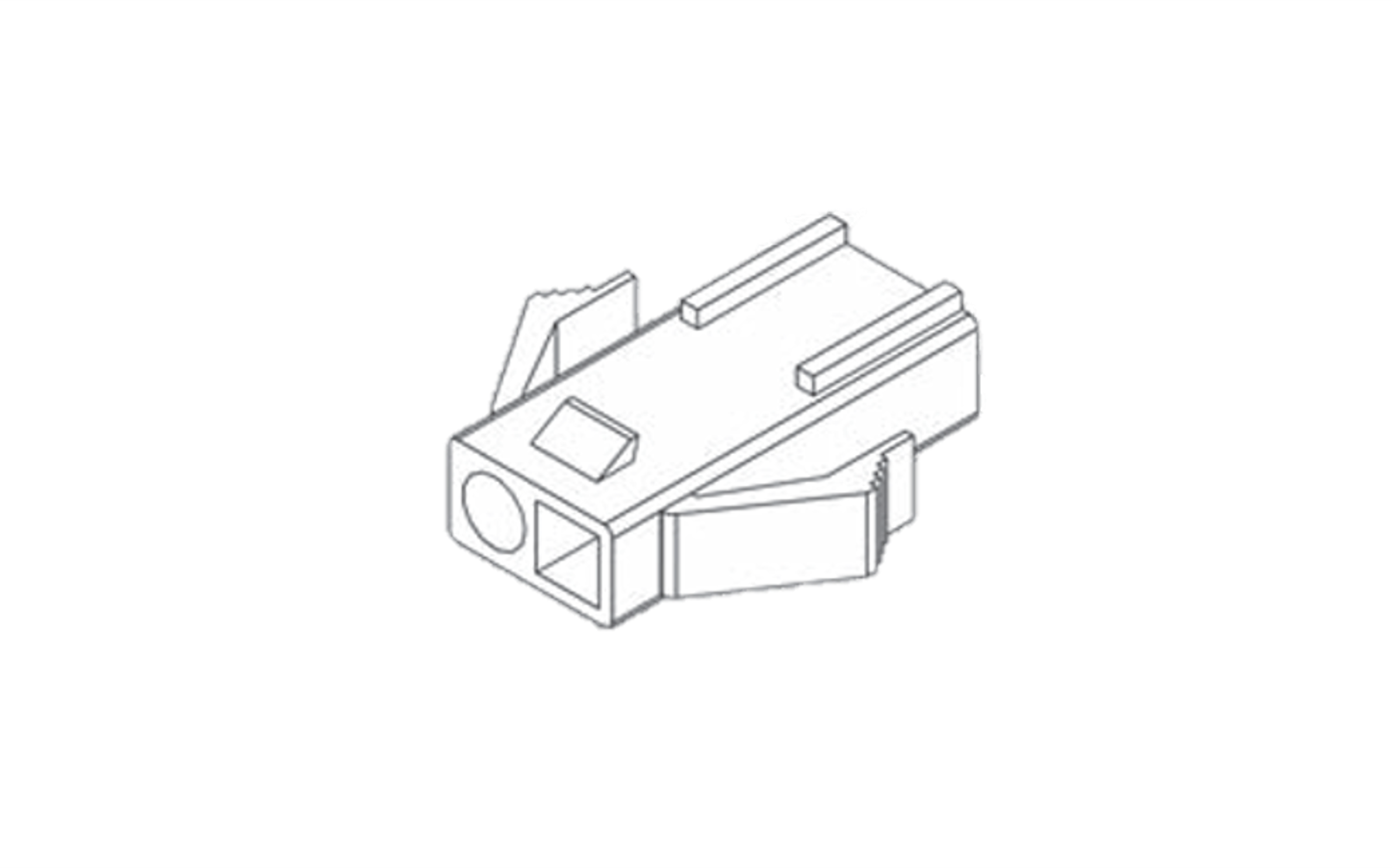

CL-014()F	1,2,3,6,9,12	4.5	5	1,500V A.C.(r.m.s) for a minute	-40	105			DL0126_MCICL014_BI_CL.pdf

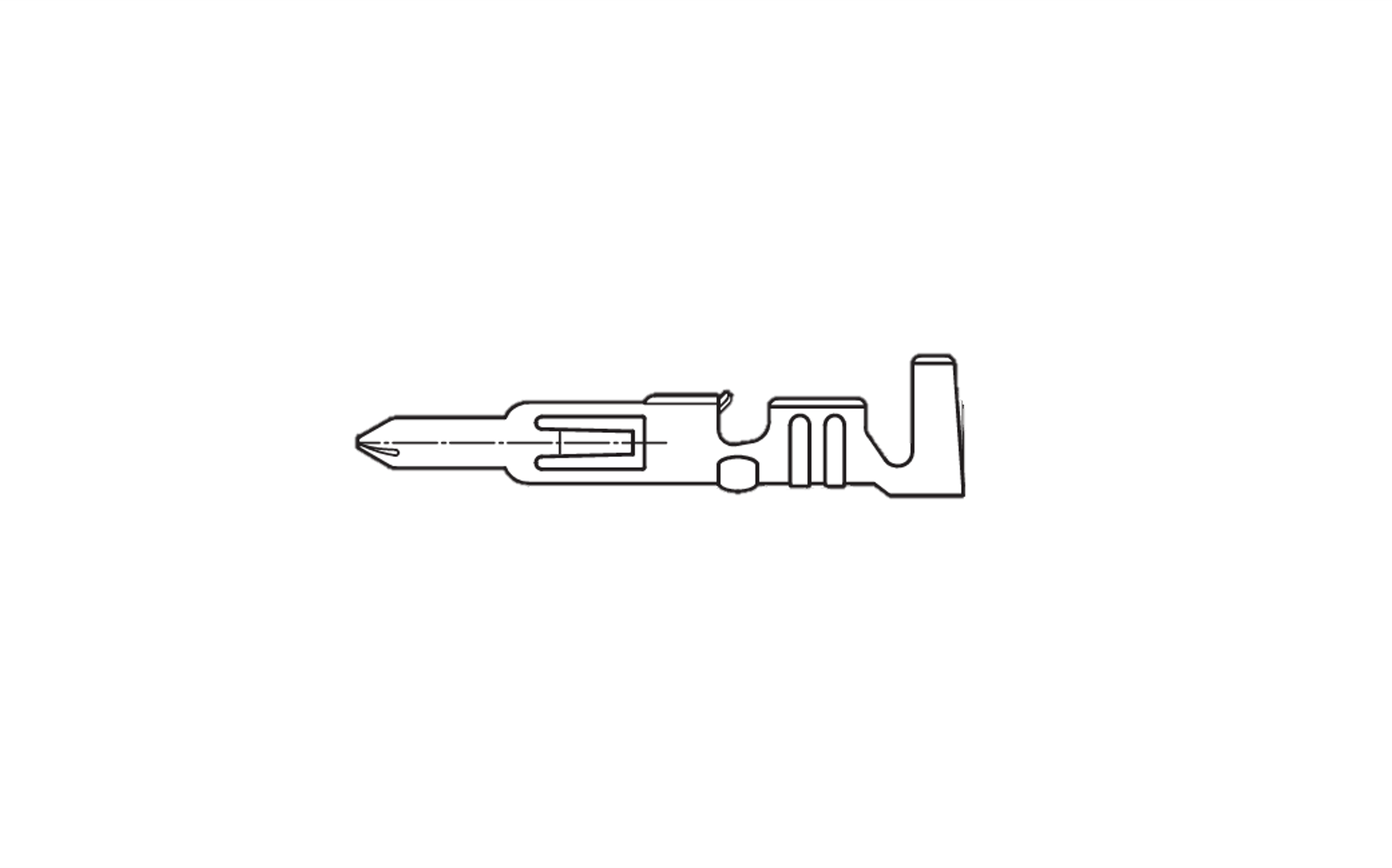

CL-014()M	1,2,3,6,9,12	4.5	5	1,500V A.C.(r.m.s) for a minute	-40	105			DL0126_MCICL014_BI_CL.pdf
CL-0240()M	2,3,6,9	4.5	5	1,500V A.C.(r.m.s) for a minute	-40	105			DL0126_MCICL014_BI_CL.pdf

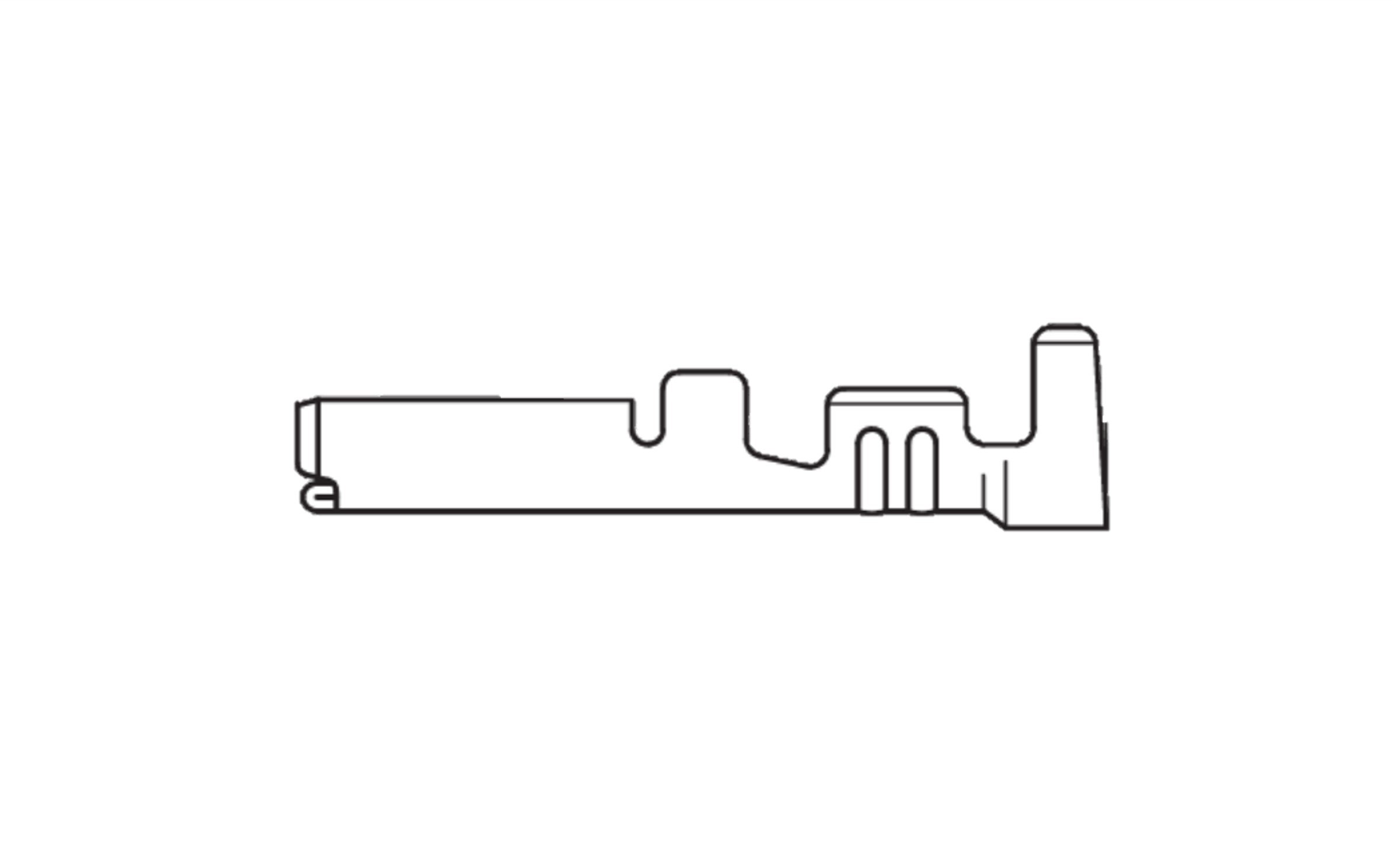

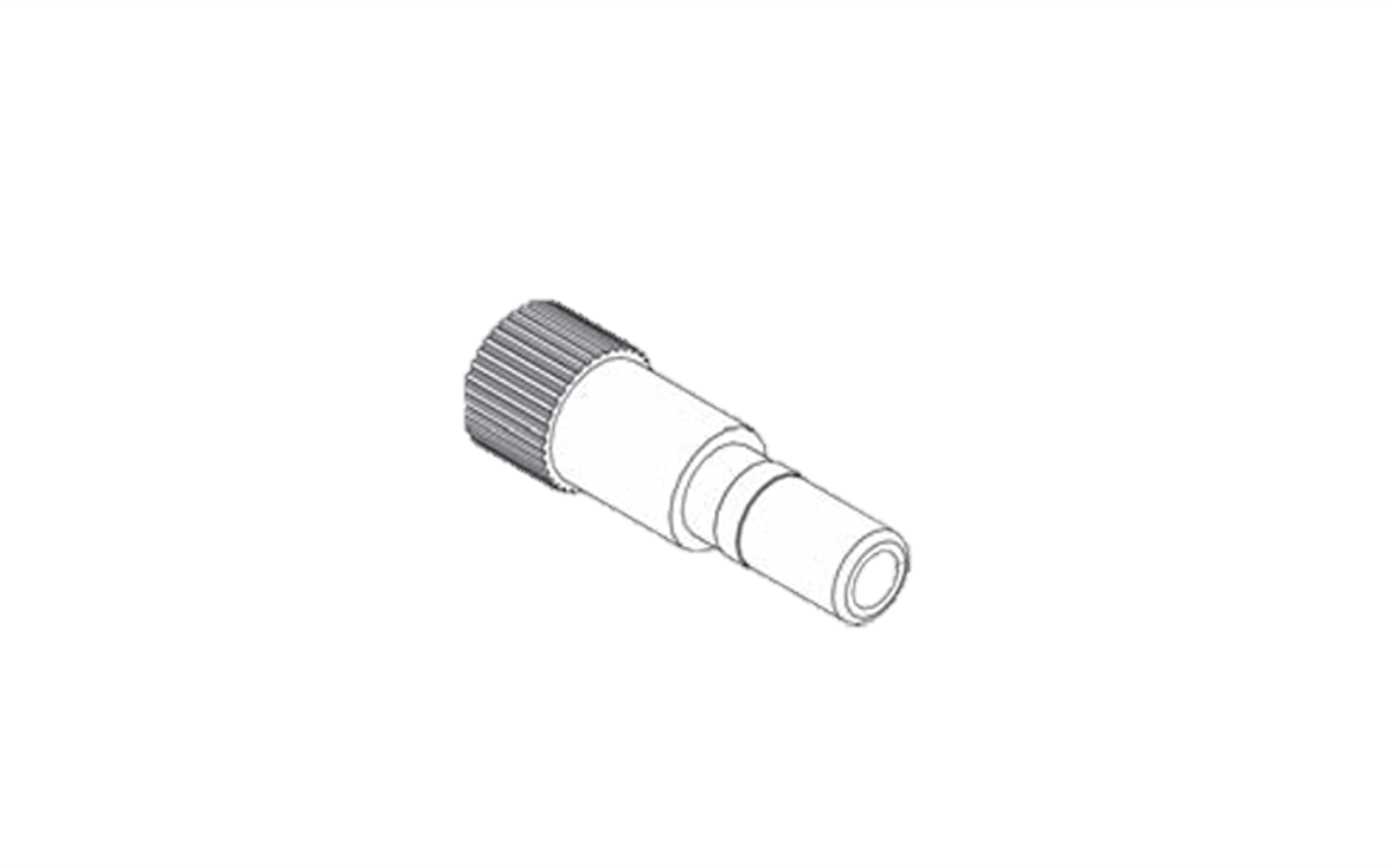

513＊11-2M-K					-40	105	＊=5:Φ2.80 ＊=7:Φ3.40	＊=5:AWG#24~20 ＊=7:AWG#20~16	DL0126_MCICL014_BI_CL.pdf

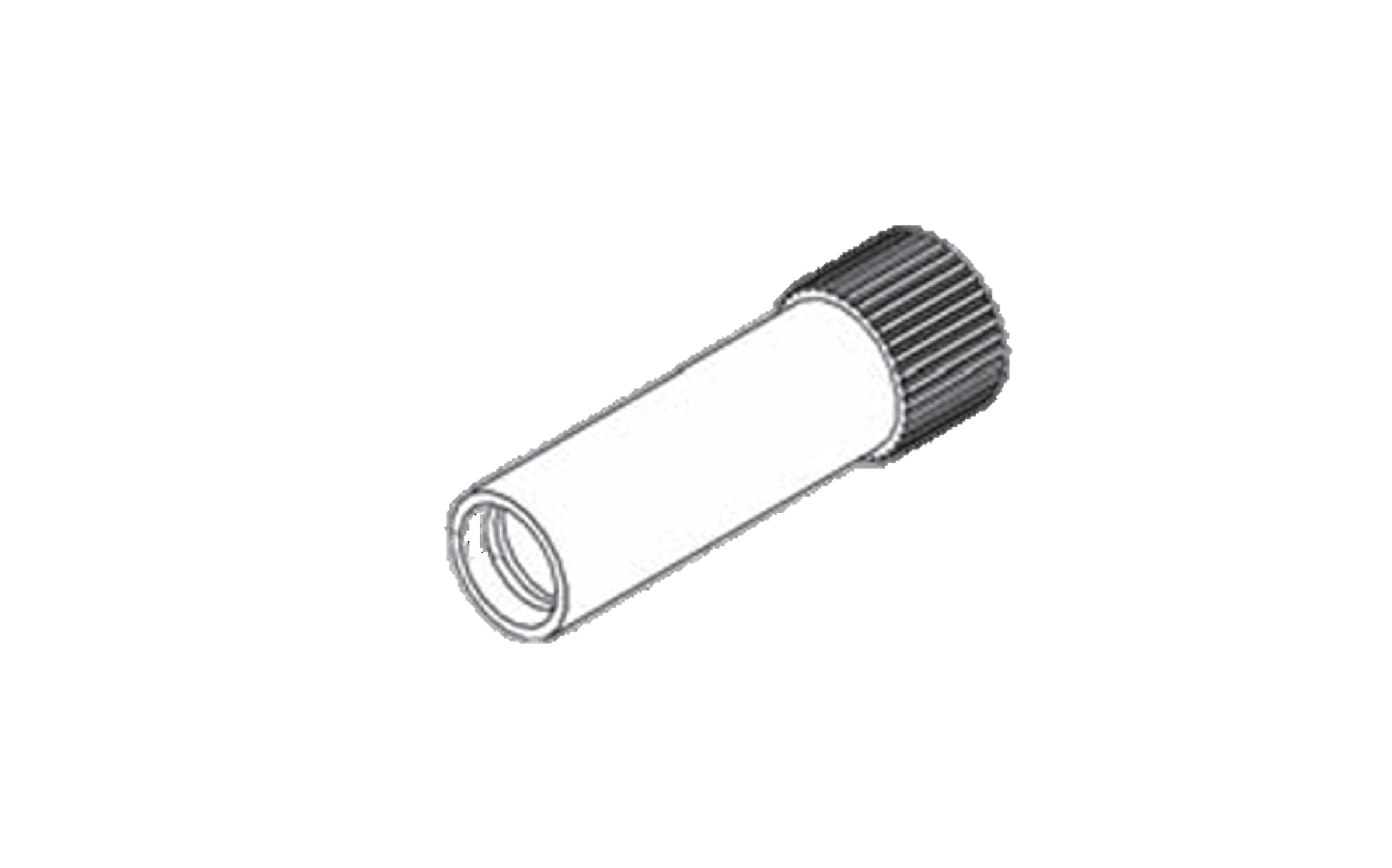

513＊12-2M-K					-40	105	＊=5:Φ2.80 ＊=7:Φ3.40	＊=5:AWG#24~20 ＊=7:AWG#20~16	DL0126_MCICL014_BI_CL.pdf
