CL014 Series

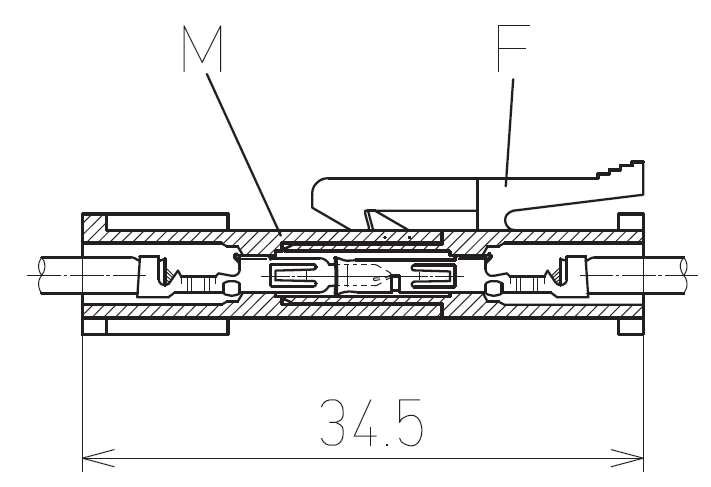

1.Terminal plug and receptacle can be inserted in either male or female Housing
2.Improved workability as it can be inserted any direction of 360° XY axis
3.One Applicator is able to crimp both Male and Female terminals
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. CL-014()M Pin Count 1,2,3,6,9,12 Pich
[mm]4.5 Current Rating
[A/Pin]5 Dielectric Withstanding
Voltage1,500V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
