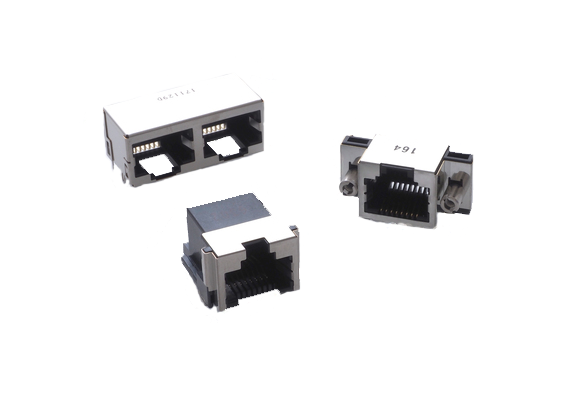

Modular connector MOD Series
MOD Series
１．Improved EMI with shields and shut-off plates.
２．Thin type available
３．Screw lock type available for unplug prevention
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Modular connector MOD Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|

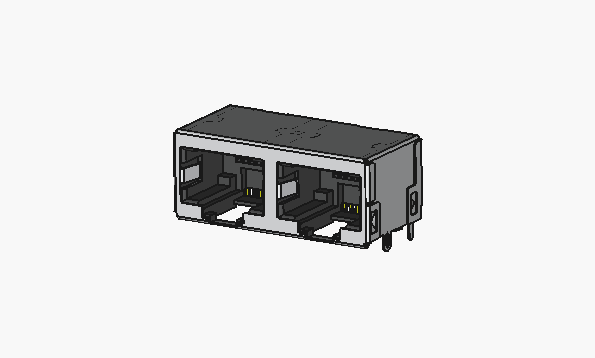

| MOD-WRJ88LY1G-TPA+ |  |
8 | 1.02 | 2-port electrical countermeasures/SMT | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 85 | DL0101_HTKMOD_BI.pdf | |
| MOD-YSJ88YA03C+ | 8 | 1.02 | SMT | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 70 | DL0102_HTKMOD_EN.pdf | ||
| MOD-J88DA12A+ | 8 | 1.02 | DIP | 1.5 | 500V A.C.(r.m.s.) for a minute | -40 | 70 | |||
| MOD-J88YA02F+ | 8 | 1.02 | SMT | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 70 | |||
| MOD-SJ88DA02B+ |  |
8 | 1.02 | DIP | 0.5 | 500V A.C.(r.m.s.) for a minute | -55 | 85 | DL0105_HTKMOD_EN.pdf | |
| MOD-SJ88YA02B3+ |  |
8 | 1.02 | SMT | 0.5 | 500V A.C.(r.m.s.) for a minute | -55 | 85 | ||
| MOD-RJ88LY1GA-TP+ | 8 | 1.02 | Single electrostatic countermeasures/SMT | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 85 | DL0107_HTKMOD_BI.pdf | ||
| MOD-YSJ88D03C+ | 8 | 1.02 | DIP | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 70 | DL0102_HTKMOD_EN.pdf | ||

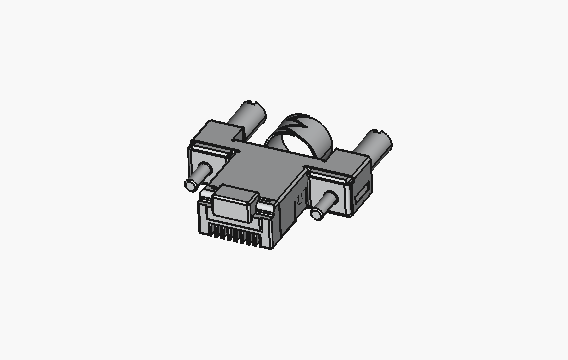

| MOD-YSP88P03+ |  |
8 | 1.02 | IDC | 0.5 | 500V A.C.(r.m.s.) for a minute | -40 | 70 | AWG26 | DL0108_HTKMOD_EN.pdf |
